小弟收到不少詢問PDA接腳定義的訊息,在這裡將小弟所知的都貼出來,供各位參考。

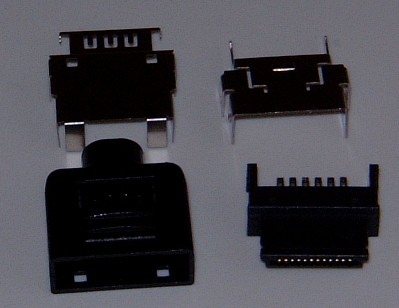

Mio528/338/339/558、V35 和 iPAQ H38XX/H39XX/H54XX/19xx 的 PDA 接頭之尺寸皆相容,都是使用AMP 22 Pins,Pitch=0.5mm的接頭。


Mio528/338/339/558、V35 傳輸線22pin接頭腳位定義

1.VCC (+5V) POWER IN
2.VCC (+5V) POWER IN
3.VCC (+5V) POWER IN
4.VCC (+5V) POWER IN
5.VCC (+5V) Cradle Detect
6.N.C.
7.N.C.
8.N.C.
9.GND POWER GROUND
10.GND 接DB9#5 GND
11.RS232 DTR 接DB9#1 DCD & #6 DSR
12.RS232 RTS 接DB9#8 CTS
13.RS232 TXD 接DB9#2 RXD(接GPS Data In)
14.RS232 DCD 接DB9#4 DTR
15.RS232 DSR N.C
16.RS232 CTS 接DB9#7 RTS
17.RS232 RXD 接DB9#3 TXD(接GPS Data Out)
18.USB_IN
19.GND
20.USB - UDC +
21.USB - UDC -
22.GND POWER GROUND

iPAQ H38XX/H39XX/H54XX/19xx/H22XX 傳輸線22pin接頭腳位定義

1 V_ADP     (+5V) POWER IN
2 V_ADP     (+5V) POWER IN
3 V_ADP     (+5V) POWER IN
4 V_ADP     (+5V) POWER IN
5 Reserved
6 RS232 DCD 接DB9#4 DTR
7 RS232 RXD 接DB9#3 TXD(接GPS Data Out)
8 RS232 TXD 接DB9#2 RXD(接GPS Data In)
9 RS232 DTR 接DB9#1 DCD & #6 DSR
10 GND POWER GROUND 接DB9#5 GND
11 RS232 DSR N.C.
12 RS232 RTS 接DB9#8 CTS
13 RS232 CTS 接DB9#7 RTS
14 RS232 RING N.C.
15 GND POWER GROUND
16 N.C.
17 USB Detect
18 N.C.
19 USB - UDC +
20 N.C.
21 USB - UDC -
22 GND POWER GROUND 接DB9#5 GND
﹝註﹞:H19XX系列不支援RS232信號輸出,跟接頭腳位無關,除RS232信號外,其他腳位均相同。

iPAQ3630/3660 傳輸線PDA接頭端腳位定義


1. V_ADP +5V POWER IN
2. V_ADP +5V POWER IN
3. DTR RS-232 DATA TERMINAL READY 接DB9#1 DCD & #6 DSR
4. GND POWER GROUND
5. CTS RS-232 CLEAR TO SEND 接DB9#7 RTS
6. RTS RS-232 REQUEST TO SEND 接DB9#8 CTS
7. TXD RS-232 TRANSMIT DATA 接DB9#2 RXD(接GPS Data In)
8. RXD RS-232 RECEIVE DATA 接DB9#3 TXD(接GPS Data Out)
9. DCD RS-232 DATA CARRY DETECT 接DB9#4 DTR
10. GND POWER GROUND
11. UDC_P USB POSITIVE DATA SIGNAL
12. USB_N USB NEGATIVE DATA SIGNAL

MBA/XDA 傳輸線腳位定義

1 CAR_MIC_IN
2 GND
3 CAR_AUDIO_R
4 CAR_AUDIO_L
5 GND
6 RS232_DCD
7 RS232_CTS
8 RS232_TXD
9 RS232_RTS
10 RS232_RXD
11 RS232_DTR
12 NC
13 USB_VDD
14 UDC+
15 UDC-
16 GND
17 GND
18 GND
19 CAR_ON#
20 V_ADP
21 V_ADP
22 V_ADP

E200 傳輸線腳位定義
請自行下載附加PDF文件檔: e200-32pin-information.pdf

dw 於 2003-09-23 21:51 修改過
