原廠連結:http://tw.shuttle.com/products/productsDetail?productId=1587
HDD:500G
RAM:4GB

量身打造 與眾不同

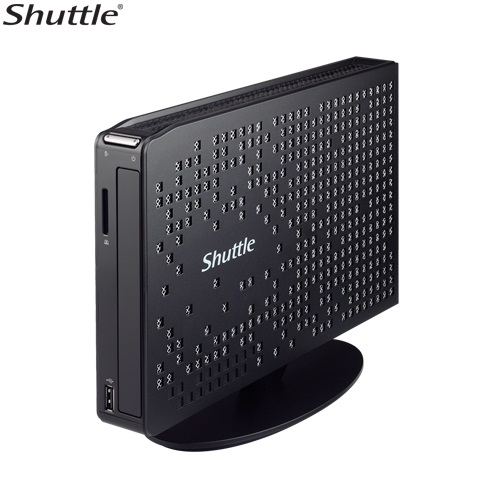

浩鑫XS35GS V3薄型電腦，沿續「星空」機身概念設計，體積僅有1.5公升，超薄有型。完備的硬體設計，搭載新一代Intel® Atom™ D2700雙核心處理器，並支援AMD Radeon™ HD 7410M高階繪圖顯示卡。特殊的無風扇機構提供多重保障，確保機器安靜無噪音，避免主機吸塵問題，大大降低維修機率。VESA設計搭配專用背掛模組，可將主機懸掛於平面顯示器或電視螢幕後方，空間有限也無須擔心。XS35GS V3具備低耗高效的亮眼表現，是企業應用首選平台。

FORM FACTOR 1.5 L slim form factor
PROCESSOR Intel Atom D2700 dual core processor
CHIPSET Intel® NM10 Express Chipset
MEMORY 2x DDR3 SO-DIMM slot supports up to 4GB DDR3 1066 MHz
VIDEO OUTPUT Built-in AMD Mobility Radeon HD7410M GPU
Support 1080P and Blue-ray playback
Support D-sub + HDMI dual display
AUDIO IDT92HD81
2.1 channel High Definition Audio
ETHERNET JMC251
Supports 10/100/1000 Mb/Sec.
802.11b/g/n WLAN support
STORAGE INTERFACE Support 1 x 2.5" SATA HDD, 5400 / 7200RPM
Support 1 x SD Memory Card reader
FRONT PANEL (1) Power button
(1) Power LED
(1) HDD LED
(1) USB 2.0 port
(1) SD card reader
(1) ODD bay

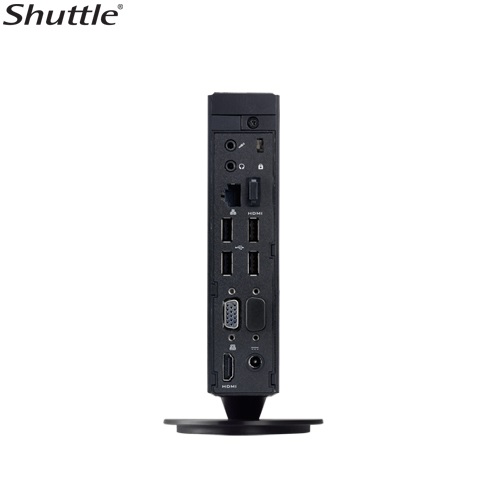

BACK PANEL (1) RJ45 LAN port
(1) D-sub VGA port
(1) HDMI
(4) USB 2.0 ports
(1) Line out port
(1) MIC in port
(1) Kensinton lock
(1) DC-in
DRIVE BAYS (1) 2.5" HDD / SSD bay
(1) Slim ODD bay
DIMENSIONS 252(L) x 38.5(W) x 162(H) mm
POWER 40W Power Adaptor
Input 100 – 240V AC
Output 19V 2.1A DC
ACCESSORIES " Optional " PV01 (VESA Mount)
" Optional " PHD2 (Second HDD bracket)
EXPANSION SLOT (1) Mini-PCIE slot (default for WLAN)
