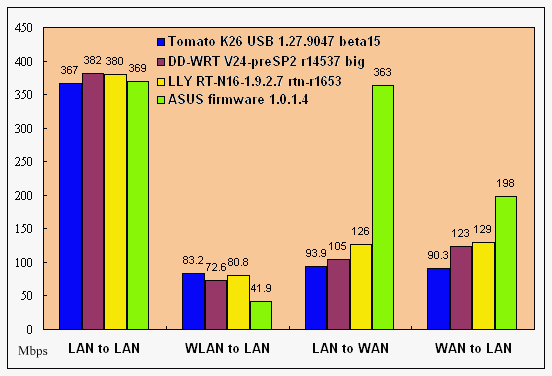

ASUS RT-N16 四大韌體效能PK

自 ASUS RT-N16 推出以來,採用 Broadcom 旗下 BCM 4718 晶片,這家晶片在過去被許多第三方韌體組織廣泛支援,加上原廠韌體穩定性一直保有很大的改善空間,使得向來潛藏的第三方韌體更加活絡起來。所以當 ASUS RT-N16 推出不到半年,市場上已經出現三套能直接支援 ASUS RT-N16 的第三方韌體。



而各家韌體皆有其專精獨到之處,例如 DD-WRT 內建支援多國語言,強調友善的管理介面。Tomato(teddy bear mod) 著重在 USB 介面及 QoS 的支援,在台灣很多死忠粉絲。LLY 則延續了老牌 Oleg 韌體的香火,提供網友一個簡單而直覺的改機環境。一般網友大多只能根據網路上討論來決定是否該刷韌體或該刷哪一家韌體,本文不詳細評論各家優劣,我們只針對網路傳輸效能部分做測試,希望此舉也能印證在同樣的硬體下,搭配不同的韌體對效能的影響程度,提供網友日後改機參考。

環境描述
Client:ASUS Eee BOX B204 gigabit + 802.11n(1T1R)
Server:Synology DS209 gigabit
網路線:Cat 5e
無線連線模式:WPA2-personal AES / Bandwidth:40Mhz
WAN to LAN:以 DMZ 模式測試
測試工具:iperf 同時開5個session,連續測試60秒
MTU,Jumbo frame 皆為系統預設值

原廠韌體版本: 1.0.1.4
LAN to LAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1864] local 192.168.1.129 port 3540 connected with 192.168.1.50 port 5001
[1896] local 192.168.1.129 port 3538 connected with 192.168.1.50 port 5001
[1880] local 192.168.1.129 port 3539 connected with 192.168.1.50 port 5001
[1912] local 192.168.1.129 port 3537 connected with 192.168.1.50 port 5001
[1848] local 192.168.1.129 port 3541 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1896] 0.0-60.0 sec 174 MBytes 24.3 Mbits/sec
[1864] 0.0-60.0 sec 191 MBytes 26.7 Mbits/sec
[1880] 0.0-60.0 sec 821 MBytes 115 Mbits/sec
[1912] 0.0-60.0 sec 732 MBytes 102 Mbits/sec
[1848] 0.0-60.0 sec 728 MBytes 102 Mbits/sec
[SUM] 0.0-60.1 sec 2.58 GBytes 369 Mbits/sec

WLAN to LAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1848] local 192.168.1.2 port 3779 connected with 192.168.1.50 port 5001
[1896] local 192.168.1.2 port 3776 connected with 192.168.1.50 port 5001
[1864] local 192.168.1.2 port 3778 connected with 192.168.1.50 port 5001
[1880] local 192.168.1.2 port 3777 connected with 192.168.1.50 port 5001
[1912] local 192.168.1.2 port 3775 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1864] 0.0-60.1 sec 59.5 MBytes 8.31 Mbits/sec
[1896] 0.0-60.1 sec 59.7 MBytes 8.33 Mbits/sec
[1848] 0.0-60.1 sec 60.3 MBytes 8.42 Mbits/sec
[1880] 0.0-60.1 sec 60.3 MBytes 8.41 Mbits/sec
[1912] 0.0-60.1 sec 60.3 MBytes 8.41 Mbits/sec
[SUM] 0.0-60.1 sec 300 MBytes 41.9 Mbits/sec

LAN to WAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1864] local 192.168.2.2 port 4402 connected with 192.168.1.50 port 5001
[1880] local 192.168.2.2 port 4401 connected with 192.168.1.50 port 5001
[1912] local 192.168.2.2 port 4399 connected with 192.168.1.50 port 5001
[1848] local 192.168.2.2 port 4403 connected with 192.168.1.50 port 5001
[1896] local 192.168.2.2 port 4400 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1864] 0.0-60.0 sec 173 MBytes 24.2 Mbits/sec
[1912] 0.0-60.0 sec 701 MBytes 97.9 Mbits/sec
[1880] 0.0-60.0 sec 811 MBytes 113 Mbits/sec
[1848] 0.0-60.0 sec 723 MBytes 101 Mbits/sec
[1896] 0.0-60.0 sec 189 MBytes 26.4 Mbits/sec
[SUM] 0.0-60.1 sec 2.54 GBytes 363 Mbits/sec

WAN to LAN
ds209> iperf -c 192.168.1.1 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.1, TCP port 5001
TCP window size: 212 KByte (WARNING: requested 128 KByte)
------------------------------------------------------------
[ 7] local 192.168.1.50 port 58480 connected with 192.168.1.1 port 5001
[ 3] local 192.168.1.50 port 58476 connected with 192.168.1.1 port 5001
[ 4] local 192.168.1.50 port 58477 connected with 192.168.1.1 port 5001
[ 5] local 192.168.1.50 port 58478 connected with 192.168.1.1 port 5001
[ 6] local 192.168.1.50 port 58479 connected with 192.168.1.1 port 5001
[ ID] Interval Transfer Bandwidth
[ 3] 0.0-60.0 sec 217 MBytes 30.4 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-60.0 sec 313 MBytes 43.8 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 7] 0.0-60.0 sec 487 MBytes 68.1 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-60.5 sec 227 MBytes 31.5 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-67.8 sec 355 MBytes 44.0 Mbits/sec
[SUM] 0.0-67.8 sec 1.56 GBytes 198 Mbits/sec

Tomato Firmware v1.27.9047 MIPSR2-beta15 K26 USB vpn3.6
LAN to LAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1880] local 192.168.1.129 port 4848 connected with 192.168.1.50 port 5001
[1848] local 192.168.1.129 port 4850 connected with 192.168.1.50 port 5001
[1864] local 192.168.1.129 port 4849 connected with 192.168.1.50 port 5001
[1912] local 192.168.1.129 port 4846 connected with 192.168.1.50 port 5001
[1896] local 192.168.1.129 port 4847 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1848] 0.0-60.0 sec 773 MBytes 108 Mbits/sec
[1880] 0.0-60.0 sec 794 MBytes 111 Mbits/sec
[1896] 0.0-60.0 sec 175 MBytes 24.5 Mbits/sec
[1912] 0.0-60.0 sec 697 MBytes 97.5 Mbits/sec
[1864] 0.0-60.0 sec 186 MBytes 26.1 Mbits/sec
[SUM] 0.0-60.1 sec 2.56 GBytes 367 Mbits/sec

WLAN to LAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1880] local 192.168.1.143 port 2173 connected with 192.168.1.50 port 5001
[1896] local 192.168.1.143 port 2172 connected with 192.168.1.50 port 5001
[1864] local 192.168.1.143 port 2174 connected with 192.168.1.50 port 5001
[1848] local 192.168.1.143 port 2175 connected with 192.168.1.50 port 5001
[1912] local 192.168.1.143 port 2171 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1880] 0.0-60.1 sec 117 MBytes 16.3 Mbits/sec
[1896] 0.0-60.1 sec 124 MBytes 17.3 Mbits/sec
[1912] 0.0-60.1 sec 116 MBytes 16.1 Mbits/sec
[1848] 0.0-60.1 sec 117 MBytes 16.3 Mbits/sec
[1864] 0.0-60.1 sec 123 MBytes 17.2 Mbits/sec
[SUM] 0.0-60.1 sec 596 MBytes 83.2 Mbits/sec

LAN to WAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1896] local 192.168.2.185 port 4721 connected with 192.168.1.50 port 5001
[1864] local 192.168.2.185 port 4723 connected with 192.168.1.50 port 5001
[1880] local 192.168.2.185 port 4722 connected with 192.168.1.50 port 5001
[1912] local 192.168.2.185 port 4720 connected with 192.168.1.50 port 5001
[1848] local 192.168.2.185 port 4724 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1864] 0.0-60.0 sec 151 MBytes 21.1 Mbits/sec
[1896] 0.0-60.0 sec 276 MBytes 38.5 Mbits/sec
[1848] 0.0-60.5 sec 131 MBytes 18.2 Mbits/sec
[1912] 0.0-62.1 sec 133 MBytes 18.0 Mbits/sec
[1880] 0.0-62.1 sec 4.68 MBytes 632 Kbits/sec
[SUM] 0.0-62.1 sec 696 MBytes 93.9 Mbits/sec

WAN to LAN
ds209> iperf -c 192.168.1.1 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.1, TCP port 5001
TCP window size: 212 KByte (WARNING: requested 128 KByte)
------------------------------------------------------------
[ 7] local 192.168.1.50 port 42767 connected with 192.168.1.1 port 5001
[ 3] local 192.168.1.50 port 42763 connected with 192.168.1.1 port 5001
[ 4] local 192.168.1.50 port 42764 connected with 192.168.1.1 port 5001
[ 5] local 192.168.1.50 port 42765 connected with 192.168.1.1 port 5001
[ 6] local 192.168.1.50 port 42766 connected with 192.168.1.1 port 5001
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-60.0 sec 134 MBytes 18.7 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-60.0 sec 154 MBytes 21.5 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 7] 0.0-60.1 sec 125 MBytes 17.4 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 3] 0.0-60.1 sec 144 MBytes 20.2 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-60.1 sec 89.9 MBytes 12.6 Mbits/sec
[SUM] 0.0-60.1 sec 647 MBytes 90.3 Mbits/sec

DD-WRT V24-preSP2 05-25-10-r14573 big
LAN to LAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1912] local 192.168.1.129 port 1610 connected with 192.168.1.50 port 5001
[1864] local 192.168.1.129 port 1613 connected with 192.168.1.50 port 5001
[1896] local 192.168.1.129 port 1611 connected with 192.168.1.50 port 5001
[1880] local 192.168.1.129 port 1612 connected with 192.168.1.50 port 5001
[1848] local 192.168.1.129 port 1614 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1896] 0.0-60.0 sec 1.09 GBytes 156 Mbits/sec
[1864] 0.0-60.0 sec 943 MBytes 132 Mbits/sec
[1848] 0.0-60.0 sec 255 MBytes 35.7 Mbits/sec
[1880] 0.0-60.0 sec 210 MBytes 29.4 Mbits/sec
[1912] 0.0-60.0 sec 216 MBytes 30.1 Mbits/sec
[SUM] 0.0-60.0 sec 2.67 GBytes 382 Mbits/sec

WLAN to LAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1896] local 192.168.1.143 port 1699 connected with 192.168.1.50 port 5001
[1848] local 192.168.1.143 port 1702 connected with 192.168.1.50 port 5001
[1864] local 192.168.1.143 port 1701 connected with 192.168.1.50 port 5001
[1912] local 192.168.1.143 port 1698 connected with 192.168.1.50 port 5001
[1880] local 192.168.1.143 port 1700 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1896] 0.0-60.0 sec 109 MBytes 15.2 Mbits/sec
[1880] 0.0-60.0 sec 101 MBytes 14.1 Mbits/sec
[1912] 0.0-60.0 sec 100 MBytes 14.0 Mbits/sec
[1848] 0.0-60.0 sec 101 MBytes 14.0 Mbits/sec
[1864] 0.0-60.0 sec 109 MBytes 15.3 Mbits/sec
[SUM] 0.0-60.1 sec 520 MBytes 72.6 Mbits/sec

LAN to WAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1912] local 192.168.2.129 port 1246 connected with 192.168.1.50 port 5001
[1880] local 192.168.2.129 port 1248 connected with 192.168.1.50 port 5001
[1896] local 192.168.2.129 port 1247 connected with 192.168.1.50 port 5001
[1864] local 192.168.2.129 port 1249 connected with 192.168.1.50 port 5001
[1848] local 192.168.2.129 port 1250 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1848] 0.0-60.0 sec 145 MBytes 20.3 Mbits/sec
[1864] 0.0-60.3 sec 162 MBytes 22.6 Mbits/sec
[1896] 0.0-60.3 sec 145 MBytes 20.2 Mbits/sec
[1880] 0.0-60.3 sec 162 MBytes 22.5 Mbits/sec
[1912] 0.0-60.3 sec 161 MBytes 22.4 Mbits/sec
[SUM] 0.0-60.3 sec 775 MBytes 108 Mbits/sec

WAN to LAN
ds209> iperf -c 192.168.1.1 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.1, TCP port 5001
TCP window size: 212 KByte (WARNING: requested 128 KByte)
------------------------------------------------------------
[ 7] local 192.168.1.50 port 60576 connected with 192.168.1.1 port 5001
[ 3] local 192.168.1.50 port 60572 connected with 192.168.1.1 port 5001
[ 4] local 192.168.1.50 port 60573 connected with 192.168.1.1 port 5001
[ 5] local 192.168.1.50 port 60574 connected with 192.168.1.1 port 5001
[ 6] local 192.168.1.50 port 60575 connected with 192.168.1.1 port 5001
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-60.0 sec 162 MBytes 22.7 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-60.0 sec 176 MBytes 24.6 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-60.0 sec 182 MBytes 25.5 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 7] 0.0-60.0 sec 161 MBytes 22.5 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 3] 0.0-60.3 sec 200 MBytes 27.8 Mbits/sec
[SUM] 0.0-60.3 sec 881 MBytes 123 Mbits/sec

LLY RT-N16-1.9.2.7-rtn-r1653
LAN to LAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1880] local 192.168.1.129 port 2059 connected with 192.168.1.50 port 5001
[1896] local 192.168.1.129 port 2058 connected with 192.168.1.50 port 5001
[1864] local 192.168.1.129 port 2060 connected with 192.168.1.50 port 5001
[1912] local 192.168.1.129 port 2057 connected with 192.168.1.50 port 5001
[1848] local 192.168.1.129 port 2061 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1912] 0.0-60.0 sec 748 MBytes 105 Mbits/sec
[1864] 0.0-60.0 sec 178 MBytes 24.9 Mbits/sec
[1880] 0.0-60.1 sec 771 MBytes 108 Mbits/sec
[1896] 0.0-60.1 sec 190 MBytes 26.5 Mbits/sec
[1848] 0.0-60.0 sec 838 MBytes 117 Mbits/sec
[SUM] 0.0-60.1 sec 2.66 GBytes 380 Mbits/sec

WLAN to LAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1864] local 192.168.1.222 port 2107 connected with 192.168.1.50 port 5001
[1896] local 192.168.1.222 port 2105 connected with 192.168.1.50 port 5001
[1912] local 192.168.1.222 port 2104 connected with 192.168.1.50 port 5001
[1880] local 192.168.1.222 port 2106 connected with 192.168.1.50 port 5001
[1848] local 192.168.1.222 port 2108 connected with 192.168.1.50 port 5001
[ ID] Interval Transfer Bandwidth
[1864] 0.0-60.1 sec 120 MBytes 16.8 Mbits/sec
[1912] 0.0-60.1 sec 113 MBytes 15.8 Mbits/sec
[1896] 0.0-60.1 sec 120 MBytes 16.8 Mbits/sec
[1848] 0.0-60.0 sec 112 MBytes 15.7 Mbits/sec
[1880] 0.0-60.0 sec 113 MBytes 15.7 Mbits/sec
[SUM] 0.0-60.1 sec 579 MBytes 80.8 Mbits/sec

LAN to WAN
C:\>iperf -c 192.168.1.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.50, TCP port 5001
TCP window size: 128 KByte
------------------------------------------------------------
[1880] local 192.168.2.118 port 2225 connected with 192.168.1.50 port 5001
[1912] local 192.168.2.118 port 2223 connected with 192.168.1.50 port 5001
[1896] local 192.168.2.118 port 2224 connected with 192.168.1.50 port 5001
[1864] local 192.168.2.118 port 2226 connected with 192.168.1.50 port 5001
[1848] local 192.168.2.118 port 2227 connected with 192.168.1.50 port 5001
write failed: Connection reset by peer
read on server close failed: Connection reset by peer
[ ID] Interval Transfer Bandwidth
[1896] 0.0-54.6 sec 6.28 MBytes 965 Kbits/sec
[1880] 0.0-60.0 sec 306 MBytes 42.7 Mbits/sec
[1912] 0.0-60.0 sec 333 MBytes 46.5 Mbits/sec
[1848] 0.0-60.0 sec 241 MBytes 33.7 Mbits/sec
[1864] 0.0-62.2 sec 51.7 MBytes 6.97 Mbits/sec
[SUM] 0.0-62.3 sec 938 MBytes 126 Mbits/sec

WAN to LAN
ds209> iperf -c 192.168.1.1 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.1.1, TCP port 5001
TCP window size: 212 KByte (WARNING: requested 128 KByte)
------------------------------------------------------------
[ 7] local 192.168.1.50 port 49437 connected with 192.168.1.1 port 5001
[ 3] local 192.168.1.50 port 49433 connected with 192.168.1.1 port 5001
[ 4] local 192.168.1.50 port 49434 connected with 192.168.1.1 port 5001
[ 5] local 192.168.1.50 port 49435 connected with 192.168.1.1 port 5001
[ 6] local 192.168.1.50 port 49436 connected with 192.168.1.1 port 5001
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-60.0 sec 204 MBytes 28.5 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-60.0 sec 200 MBytes 27.9 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 7] 0.0-60.0 sec 142 MBytes 19.8 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 3] 0.0-60.0 sec 210 MBytes 29.3 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-60.1 sec 170 MBytes 23.8 Mbits/sec
[SUM] 0.0-60.1 sec 926 MBytes 129 Mbits/sec

下圖是將各項測試數據整理後,所產生的圖表,我們可以很明確看得出來 ASUS 原廠韌體的 NAT 效能像是擁有獨家祕技似的,大幅領先其他家韌體,不過在 WLAN 部分的效能卻只能稱作笑能,把 N 當 G 用,明顯落後其他韌體。其他第三方韌體 LLY、DD-WRT 及 Tomato 或許少了 Broadcom 直接傳授的獨家密技,各項數據表現都在伯仲之間,相較之下,LLY 韌體各項效能表現穩定領先,以綜合各項效能的評估是較值得推薦的韌體。



----------------------------我是分隔線---20101029更新---------------------------------
環境:
Client:QNAP TS-419U NAS gigabit
Server:Synology DS209 NAS gigabit
網路線:CAT 5e
測試工具:iperf 同時跑5個連線 寫128k 連續寫入60秒
MTU,Jumbo frame 皆為系統預設值

Tomato Pandora 1.27
LAN to LAN
iperf -c 192.168.2.50 -w 128k -t 60 -P 5
------------------------------------------------------------
Client connecting to 192.168.2.50, TCP port 5001
TCP window size: 212 KByte (WARNING: requested 128 KByte)
------------------------------------------------------------
[ 4] local 192.168.2.60 port 48013 connected with 192.168.2.50 port 5001
[ 5] local 192.168.2.60 port 48014 connected with 192.168.2.50 port 5001
[ 6] local 192.168.2.60 port 48015 connected with 192.168.2.50 port 5001
[ 7] local 192.168.2.60 port 48016 connected with 192.168.2.50 port 5001
[ 3] local 192.168.2.60 port 48012 connected with 192.168.2.50 port 5001
[ ID] Interval Transfer Bandwidth
[ 6] 0.0-60.0 sec 1.03 GBytes 148 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 4] 0.0-60.0 sec 1.03 GBytes 148 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 3] 0.0-60.0 sec 1.03 GBytes 147 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 5] 0.0-60.0 sec 1.03 GBytes 147 Mbits/sec
[ ID] Interval Transfer Bandwidth
[ 7] 0.0-60.0 sec 1.02 GBytes 146 Mbits/sec
[SUM] 0.0-60.0 sec 5.15 GBytes 736 Mbits/sec

在同樣環境下,我把 Eee BOX 換成另外一台 QNAP TS-419U NAS 結果就截然不同了,數據顯示幾乎是原來的兩倍,過去測試 LAN to LAN 效能明顯偏低,這結果跟主機硬體效能很有絕對關係,看來 RT-N16 只能怪自家的 Eee BOX 不爭氣啊。

延伸閱讀:
Router CPU and memory benchmark
世界杯 Wireless-N Gigabit Router 四強效能 PK 賽
太棒了,這篇應該納入精華區
感謝分享
Aven 大實在太優秀了!!
改天有閒時再去試試 3rd party FW.
目前ASUS原廠FW我用起來沒什麼問題 手癢時再來試試

多謝板大無私的奉獻。[鼓掌][歡呼]

就在板大 PO 文的那幾天,我也決定下手買了 N16。一開箱就直接刷了 Teddy Bear 版,目前快樂的測試中。所有測試就是以板大的實驗值為參考,只可惜無法送上好評!
目前使用2104+hinet 8M
因家中有人使用gogobox
即使上下載速度都不高,但連線數超多
常使其他電腦連開網頁都慢到不行
所以想順便升級無線分享器

請問目前QOS功能是以每個IP來管理
或可以限制連線數

以上有韌體可以解決這個問題?
DDWRT會開啟封印,不過個人PC還是設定一下連線數比較好

千元等級的設備連線數還是頂不了太久,高階的比較有辦法
我愛老婆&兒子&Aida Yua http://dacota.pixnet.net/blog

因為只用過 Tomato,所以提供 Tomato 的用法:它只能限制 IP/MAC 的優先權以及流量,無法限制連線數。但是只要 PC 端的程式沒有把所有的連線數吃光(板大之前曾經將 RT-N16 的連線數拉大到 30000 個),Tomato 的作法應該對你的使用情形有幫助。

一代懶人 wrote:
目前使用2104+h...(恕刪)
一代懶人 wrote:
目前使用2104+h...(恕刪)


我猜你要的是這樣的東東?!



RT-N16可以刷這裡提供的韌體,基本上這是拿Tomato改的


請教大家一個問題:之前在 teddy bear 的原始討論串中,有網友提到 Beta15 在使用 N-Only 的無線設定時,Channel width 只有 20MHz,因此 Teddy Bear 釋出了 Beta16 來解決這個問題。今天,我也把機子刷成了 Beta16,也將無線連線模式設定成 N-Only,但是我的 client 端連線時(使用 ASUS USB-N13),連線速度卻被限制在 136Mb,而不是一般常見的 270Mb;如果再把無線連線模式設定成 auto,他又回復成 270Mb。

在實際下載測試流量的過程,我發現兩種設定的方式,對於下載的流量並沒有太大的改變,不知道這是否正常?有沒有大大也有類似的情形?

Aven138 wrote:
自 ASUS RT-...
Tomato Firmware v1.27.9047 MIPSR2-beta15 K26 USB vpn3.6
(恕刪)

這好像不錯喔,請問大大它的 WLAN 的效能跟版大 PO 出來的 teddy bear 版有差嗎?有的話,差多少?

coolcliff01 wrote:


我猜你要的是這樣...(恕刪)
文章分享
評分
複製連結
