bambochen wrote:
你是說我被連摩擦力...(恕刪)
豆腐加工業石膏的新聞在這裡啦!
http://www.setn.com/News.aspx?NewsID=48308
我已經開始同情你了...你連石膏是豆腐材料之一都不知道...咬斷牙齒? 天啊!
個人積分：57分
文章編號：56350416
個人積分：873分
文章編號：56350606
個人積分：26分
文章編號：56351094
個人積分：26分
文章編號：56351172
個人積分：873分
文章編號：56351444
bambochen wrote:
The open differential always applies the "same amount" of "torque" to both wheels.
還左右0-100, 100-0扭力分配是因為有open differential咧~~
ATS沒中差....
我在講電子SH-AWD沒中傳,差一個字差很多的...(恕刪)
就是用了OPEN differential才做到左右0-100, 100-0扭力
(固定一邊輪,扭力就會全去了別一邊的輪)
always applies the "same amount" of "torque"
這只會出現在LOCK differential
事實上SH-AWD是沒有CENTER differential(中差)
你知道自己在打什麼嗎?
個人積分：26分
文章編號：56352083
redcatgt500 wrote:
就是用了OPEN differential才做到左右0-100, 100-0扭力
(固定一邊輪,扭力就會全去了別一邊的輪)
always applies the "same amount" of "torque"
這只會出現在LOCK differential
事實上SH-AWD是沒有CENTER differential(中差)
你知道自己在打什麼嗎?...(恕刪)
有自信是好事,不過講錯了還這麼有自信就不是好事了
請看影片解釋吧!我懶得打字了
Open & Lock Differential
再說SH-AWD的左右0~100,100~0扭力切換也不是只有單輪接地時可用
跟單純的Lock differential又不一樣
以下擷取自速霸陸網站:
Active torque split AWD
An AWD system developed exclusively for 4-speed automatic transmission, E-4AT (with manual mode) and Lineartronic models to maximise the reliable driving performance of AWD models under any driving conditions. The Lineartronic CVT (Continuous Variable Transmission) uses a chain instead of a belt—allowing a greater span of overall ratios for improved performance and efficiency as well as a faster response to throttle input. The active torque-split AWD system usually distributes torque 60:40 front and rear, however sensors constantly monitor the vehicle's condition in areas such as changes in grip of the front and rear tyres or vehicle speed. The electronically controlled MP-T (Multi Plate Transfer) adjusts torque distribution to the front and rear tyres in real-time to suit driving conditions, as well as the transmission and driver inputs. This further increases the stability of the AWD system to deliver a safe and agile driving experience.
MP-T不就是中差嗎?
怎麼會說ATS沒中差?
個人積分：5分
文章編號：56353601
bambochen wrote:
Active torque split AWD
An AWD system developed exclusively for 4-speed automatic transmission, E-4AT (with manual mode) and Lineartronic models to maximise the reliable driving performance of AWD models under any driving conditions. The Lineartronic CVT (Continuous Variable Transmission) uses a chain instead of a belt—allowing a greater span of overall ratios for improved performance and efficiency as well as a faster response to throttle input. The active torque-split AWD system usually distributes torque 60:40 front and rear, however sensors constantly monitor the vehicle's condition in areas such as changes in grip of the front and rear tyres or vehicle speed. The electronically controlled MP-T (Multi Plate Transfer) adjusts torque distribution to the front and rear tyres in real-time to suit driving conditions, as well as the transmission and driver inputs. This further increases the stability of the AWD system to deliver a safe and agile driving experience.
哪裡有中差?(center diff.)
mp t是現今大多數awd車輛使用的系統,名稱各廠自己掰,性能就各有差異.
按照文字就能解釋,它真的不是傳統的中差.
只是subaru把mp t玩的比他廠好,所以叫做proactive auto.awd,
您先找資料,繼續talk...
個人積分：384分
文章編號：56354108
每個人車上一般的差速器就是 open differential
shawd 後差當然不是 open diff
剛好相反.

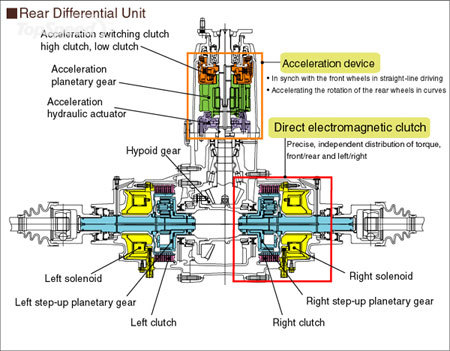

shawd 後差是 "no diff" (hypoid gear 直結) 加上
左右各一個濕式 multi-plate clutch
multi-plate clutch 的 100/0, 0/100
和 locked diff 的 100/0, 0/100
是.........差很遠的(用途不同).
redcatgt500 wrote:
就是用了OPEN differential才做到左右0-100, 100-0扭力
(固定一邊輪,扭力就會全去了別一邊的輪)
always applies the "same amount" of "torque"
這只會出現在LOCK differential
事實上SH-AWD是沒有CENTER differential(中差)
你知道自己在打什麼嗎?
