volvo v50 柴油車的煞車問題

sungwen

69分

11樓

sungwen

個人積分：69分

文章編號：25053351

剛開始真的很不習慣...總覺得煞不住 (跟國慘車相比)
可能車子也比較重 orz

nelson0504

11分

12樓

nelson0504

個人積分：11分

文章編號：25059677

那有人知道V50 D4跟D5前後煞車碟盤多大嗎.......

patrickpth

68分

13樓

patrickpth

個人積分：68分

文章編號：25060084

D5 D4後碟皆是 280mm
前碟我不確定 300/320mm, 300/320mm

Jackys40t5

10分

14樓

Jackys40t5

個人積分：10分

文章編號：25060389

patrickpth wrote:
D5 D4後碟皆是 ...(恕刪)

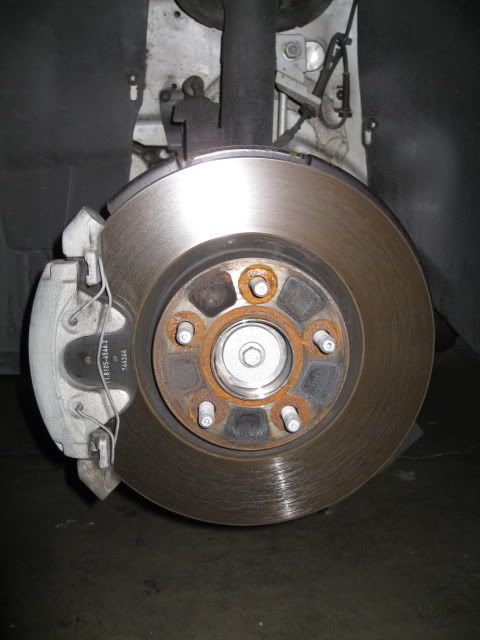

300mm or 320mm看卡鉗就知道, 兩者是不同的.
300mm用卡鉗, 座的兩端有類似圓柱體的鑄件, 320mm的則是尖尖的樣子. 更簡單一點的是看卡鉗上有一跟鐵絲的, 就是300mm的. 詳細可參考一下C30D4 R-Design介紹那篇, 那是300mm的卡鉗組.

ps: 278mm也是同一組卡鉗, 只是盤較小.

patrickpth

68分

15樓

patrickpth

個人積分：68分

文章編號：25060441

D5 D4後碟皆是 280mm
前碟我不確定 300/320mm, 300/320mm
瑞典原廠是說在16吋輪圈輪胎的情況下皆是 300mm/280mm
我就不知在17吋輪圈輪胎或18吋輪圈輪胎下，原廠有沒有一點美學與性能素養了

ATE普通碟
Brake Disc
Trade Numbers: 425175
Fitting Position: Front Axle
Fits rim size [inch]: 17 Inch, Ø: 320 mm, Br. Disc Thickness: 25,0 mm, Min. thickness: 23 mm, Brake Disc Type: Vented, Finish: High-carbon, Num. of holes: 5

ATE民用型畫線碟也只做到這麼大
Brake Disc Power Disc
Trade Numbers: 525162
Fitting Position: Front Axle
Fits rim size [inch]: 16 Inch, Ø: 300 mm, Br. Disc Thickness: 25,0 mm, Min. thickness: 23 mm, Brake Disc Type: Vented, Num. of holes: 5, Finish: High-carbon, Surface: Coated
Trade Numbers: 511158
Fitting Position: Rear Axle
Ø: 280 mm, Br. Disc Thickness: 11,0 mm, Min. thickness: 9 mm, Brake Disc Type: Full, Num. of holes: 5, Surface: Coated

不然就
High Performance Brake Disc
Trade Numbers: 461010
Fitting Position: Front Axle
Supplementary Article/Supplementary Info 2: Two-piece Brake Disc, With black pot, Ø: 326 mm, Br. Disc Thickness: 30 mm, Min. thickness: 27,4 mm, Brake Disc Type: Vented, Finish: Alloyed / High-carbon, Pitch Circle Ø: 112 mm, Num. of holes: 5, Bore Ø: 15,3 mm, Height: 49,7 mm, Centering Diameter: 65 mm

XC90 336mm/308mm
S80前 300mm/316mm/336mm
後 302mm
XC60 328mm/302mm
S60 前 316mm/328mm
後 302mm
V70前 300mm/316mm
後 302mm
XC70 316mm/302mm

C70 320mm/280mm

C30/S40/V50
前 278mm/300mm/320mm
後 280mm
從煞車蠻看得出車子的定位的
