聖誕節當天有人送了Best Buy的gift card給我.
現在終於可以用上了

前天下午馬上去敗了這台Gateway HD2201 22" widescreen LCD
小弟第一次做開箱文,如果照不好請見諒
這標誌很少有人聽過,但是乳牛標誌還真少見
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-aa6854d49cef0ffe92528ded8421647e.jpg)
從Best Buy坐地下鐵回家還真累

就是下面這一盒(正面)
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-3ac3b077da1bcc0c609157123f1c8950.jpg)
側面照
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-4b5d340d35b1500b9303d13836a1571c.jpg)
拿個ipod來比一下
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-078c7fb80a84bac8af88b90a071d043d.jpg)
這台的基本資料
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-3332121d1d2bf87dadcb53f71e6ffd12.jpg)
以下詳細資料是從Gateway的官方網站複製下來的
Viewable Area 22" viewable (diagonal) with 16:10 aspect ratio
Resolutions 1680 x 1050 (native and maximum), Maximum vertical frequency: 76Hz, Maximum
horizontal frequency: 83KHz
Response Time Up to 5ms
Brightness 300cd/m²
Contrast Ratio 2000:1
Pixel Pitch 0.282mm
High-Definition and Advanced Features 720p HD through DVI-D connection with HDCP, Picture-in-picture and Soft PIP (dynamic, adjustable and transparent)
Signal Inputs (1) HDMI, (1) Analog - 15-pin mini d-sub VGA, (1) Digital - 24-pin DVD-D, (1) Component
Agency Certifications Energy Star®, CSA, cUS, FCC Class B, CE NOM, VCCI
Colors 16.7 million
Dimensions (Display) - With Stand 20.24" (W)x16.85" (H)x7.20" (D) or 514mm (W)x428mm (H)x182mm (D), (Display) - Without Stand 20.24" (W)x13.5" (H)x3" (D) or 514mm (W)x343mm (H)x76mm (D)
Dimensions (Box) 23.14" (W)x20.27" (H)x8.66" (D) or 588mm (W)x515mm (H)x220mm (D)
Display Stand Included with adjustable tilt
Electrical Requirements Normal operation: under 55w, Standy-by Mode: under 2w, Off (power-save): under 1w, 100-240 VAC, 50/60Hz
Mount Compatible with VESA (4x100mm) mounting solutions
Operating Conditions Temperature: 5 degrees - 35 degrees C and Humidity: 20% - 80%
Panel Type LCD active matrix TFT
Ports AC power input and Kensington security lock slot
Screen Treatment Ultrabright glare
User Controls Power on/off button, EZTouch Onscreen display (OSD) menu, Touch-sensitive control
Viewing Angles 160 degrees left/right, 160 degrees up/down
Warranty 1 Year parts and labor1
Weight 13.45 lbs. (6.1 kg) with stand, 18.19 lbs. (8.3 kg) in box
切~開~了

![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-cac4954cd8e97855ea1b3db07431f3e7.jpg)
配件,說明書與驅動軟體(內附調螢幕設定的軟體)
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-25fde0654b9fc566788ed2db51d92502.jpg)
若隱若現的本體

![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-efaafe90ac078eaed331508108b4021a.jpg)
輸入介面VGA, DVI與HDMI

![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-bc5e1e7f8631b0c0df803cb0f8a1d7c7.jpg)
VGA, DVI與HDMI的圖示
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-d27468ef9d6c07c7e62b02599d059606.jpg)
電源接口,喇叭電源與HDMI音源輸出(這台可以外接喇吧在螢幕的下方,但要另外加購
)![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-4ea379da07549e5d6f659778133530f3.jpg)
插進去吧~~~~~

![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-18402988d2481ca22005218b224a3822.jpg)
出現了(正面照)

![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-487467dfe1e8dd92097f224ebe5d2f52.jpg)
斜側照
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-c70774d852e661f5e0ba8a18f2bc433a.jpg)
背面照(這台也可掛牆壁)
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-9259125a35519b68cb3f4c8024d6408e.jpg)
側面+腳架
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-39f570ca5ba9b21d770759b33948463e.jpg)
銀色的LOGO
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-f124237c8853a3c325c56e45bbebe83b.jpg)
基本規格的貼紙
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-83346873ecc4fa3f92764cf327248fea.jpg)
HD加持

![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-0197164a3a168b8331f2b20354043eb4.jpg)
沒想到這個標誌可以出現在我的電腦螢幕上(不是貼紙耶)

![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-878b7307d4c7d2f3855970414eb5a158.jpg)
整個瑩幕開關與調整選項都是觸控式
待機時的橘燈
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-177d9705b1dcdad7aef8fb6478cfec72.jpg)
有信號輸入但關螢幕的紫燈 天之音:這是藍燈嘛(拍不好,抱歉
)![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-5a8b4796a7febfc4cd11dd89d6b86803.jpg)
開機畫面
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-d2feaf84e962c8105a9ecc8f1db48311.jpg)
信號輸入提示(2~3秒就消失了)
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-55f44009e27248b0822c51c96c3b706a.jpg)

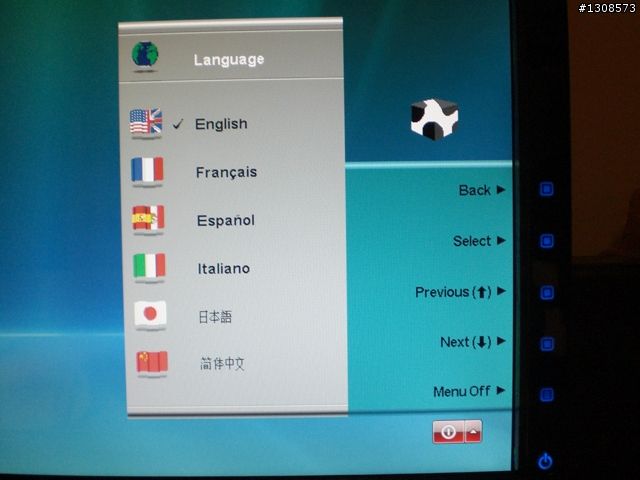

第一次開的話,會要您選語言 (繁體呢!!
算了)![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-b88e7b3e7e38dba7e9f36cef12c7b7cf.jpg)
這才是藍色的開機燈
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-158870a17eb4c405da620a30f1bda2f9.jpg)
觸控式選單鍵,按一下選項就會跳出來
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-2a760d13b4ed30a0ffc6596bb39441f6.jpg)
選項跳出來了,不能操作的燈就不亮,而且選項也會便成灰色
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-e18539b35463c40d0c7b5dcc58019f4a.jpg)
主選單
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-6f234cbb8589d2a5ad96e4d7a1071f7c.jpg)
雖然是用HDMI輸入但是還是可以調對比(之前我的DELL都不能調
)![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-9c8bf6120ff83f5f2b413df8e5961895.jpg)
進階設定
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-0c673fc9ad378a6ba2fa9b8d0c2624b8.jpg)
以下是用Nokia的螢幕測試程式測的
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-af3a7ed53cfff7654c788ba40036af2a.jpg)
對比
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-9f9c3ae3d46702da1ab4ac962cda11bc.jpg)
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-fc0e4e7a33d618cf15a5a969b7b9942b.jpg)
全白(無壞點) 爽

![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-f5b32531cbb5fcfdcfdd95ab6c9d66ef.jpg)
全紅
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-a197759fa6b5159a51f2e521204c2059.jpg)
全綠
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-8ba6e95e27c8ec001bd152391087236e.jpg)
全藍
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-8ccbbc473955d93e183e63c42f62d030.jpg)
啊..我弟不小心入鏡(果然是鏡面瑩幕
)![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-d9d04132571a68a0a0d5ff9903a9e976.jpg)
白底黑字
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-3a3ad744bd6b49a778cc6ce507635b59.jpg)
黑底白字
![[開箱]Gateway HD2201 22" widescreen 鏡面LCD 螢幕簡易開箱文](http://attach.mobile01.com/attach/200903/mobile01-44b990dcafec9491bfa16486d839544a.jpg)
結論是雖然是鏡面瑩幕,但是黑色區域表現的還不錯,夠黑(以我的眼睛),不過觸控鍵有時太靈敏,會調過頭
到時後再來接1080i的電視訊號,一定很好玩
