[分享]iPad上的網路視訊電話軟體Voipswitch Video softphone (Vippie)

iOS平台上有為數不少的網路電話(VOIP)軟體(APP):
一、如果以條件 'SIP' 過濾,那大概會少掉三分之一,
二、如果以條件 'SIP + G.729' 過濾,那只剩不到十種,
三、如果以條件 'SIP + G.729 + 免費' 過濾,那答案是 '找不到'...

Why? 熟悉網路電話領域的人大概都知道, 'G.729 Codec' 是要支付權利金的,
天下沒有白吃的午餐,那有不勞而獲這等事(JB的不談)
So,今天要介紹的「支援G.729的SIP APP」當然是付費版的.

談到小弟要介紹的「支援G.729的SIP APP」,行家們大概會第一個想到的就是
CounterPath Corporation Bria iPad Edition.


Sorry! But It is not..

Voipswitch Video softphone(它的前身好像叫 'Vippie') 才是今天的主角.



先來看看這二套APP的差異吧!

CounterPath Corporation Bria iPad Edition




Main $12.99
G729 Audio Codec$8.99
Video Calls$3.99
Presence and Messaging$3.99


Standard Phone Features
★ Background Support
★ Multiple Account Support
★ Call display and voicemail indicator
★ Speakerphone, Mute and Hold
★ Call history – list of received, missed and dialed calls
★ Contact List and Contact Favourites - leveraging the iPad Contacts
★ Ringtones and contact avatars
★ Multiple Call Support – swap between two active calls; merge and split calls; transfer calls
★ Call Recording
★ Call Forwarding
★ Dial Plan Support
★ Audio codecs include G.722 (HD), G.711, iLBC and GSM
★ Option to purchase G.729 codec in app
★ Support for DTMF: the ability to enter numbers to use an auto attendant via RFC 2833, SIP INFO and Inband
★ VPN Support

Advanced Features
★ Network Transversal - Application Managed, Server Managed or User Specified; Global IP Support; STUN & ICE
★ Media Efficiency and Quality – Noise reduction and VAD (Voice Activation Detection)
★ QoS (Quality of Service)- ToS Marking and DSCP (Differentiated Services Code Point)
★ Security and Encryption via TLS and SRTP
★ DNS SRV record lookups
★ Call quality statistics

Accessories
The following accessories are supported:
★ Headset with microphone (including Bluetooth?): Bria uses the ear-piece and microphone on the headset.
★ Headphones (no microphone): Bria uses the ear-piece on the headphone and the built-in microphone on the iPad.

*IMPORTANT: SERVICE PROVIDER OR SIP SERVER REQUIRED*
Bria iPad Edition is a softphone product and not a service. You must use Bria iPad Edition with a SIP-based VoIP service or SIP-based server (e.g., IP Centrex or IP PBX) in order to use this product. Please contact your service provider or IT support for more information.

*IMPORTANT: VOIP OVER 3G NOTICE*
Some mobile network operators may prohibit or restrict the use of VoIP functionality over their network and may also impose additional fees, or other charges in connection with VoIP. You agree to learn and abide by your cellular carrier`s network restrictions. CounterPath Corporation will not be held liable for any charges, fees or liability imposed by your carrier for use of VoIP over 3G.


Voipswitch Video softphone - VoIP SIP client (Vippie)



$14.99

Description
Voipswitch Video softphone is a generic SIP client for iPhone 4. It can work with any SIP server through Wi-Fi and 3G. Support for high quality g729 and g722 audio codecs and h264, h263+ video codec.

Main features:
* Making and receiving VoIP audio and video calls
* can connect to any SIP video phone supporting:
h264 codec
LOW: 177x144 150kB 15fps
MED: 352x288 256kB 15fps
HIGH: 480x360 384kB 15fps
h263+ codec
LOW: 177x144 150kB 15fps
MED: 352x288 256kB 15fps
HIGH: 352x288 384kB 15fps
* Connectivity through WIFI and 3G
* Integrated contacts from the phone
* Loudspeaker
* Favorites
* Time, call status logs
* Last calls log
* Redial
* Support for codecs g.729, GSM, g.722, g.711 audio codec and h264 video codec
* Compatible with IPhone 4G
* Conversation recording (audio only)
* Share recorded call in iTunes
* XMPP chat and presence
* work in background mode (only with servers allowed SIP via TCP)

Note:
1. You need to have account from VoIP provider in order to use this software.
2. Please, check your cellular operator's terms of agreement to make sure they allow sip calls on their network before using Voipswitch Video softphone.


以Full Edition的價格(美金計算)來說:
1.Bria=12.99+8.99+3.99+3.99=29.96(約台弊900元)
2.Voipswitch=14.99(約台弊450元)


價差有二倍耶,小弟最終選擇了 '2',原因是看過了Youtube上的這段演示的影片


發現我想要有的功能它都有了,而且高貴不貴...

這產品既然是要付費的,那當然是用過覺得很OK才推薦.

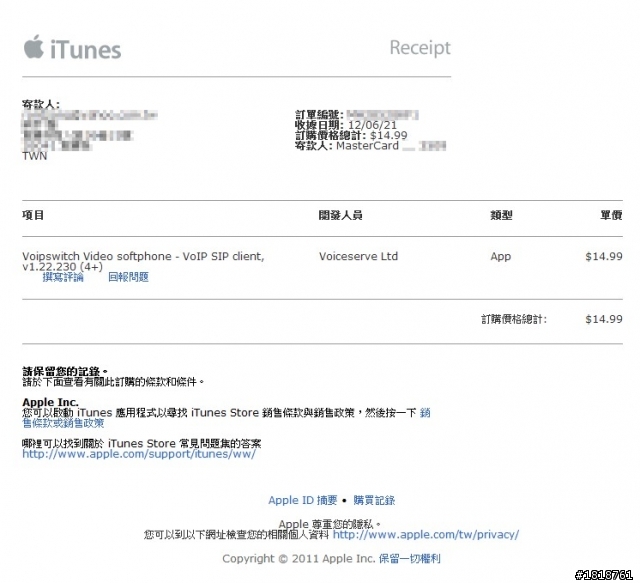

小弟在2012.6.21這一天在APP Store花了$14.99買了VOIP Switch 這套APP.


隔天iTunes就修改契約條款,改以台弊計價,還好,不是降價,不然真的是 ^@~~@^....


接下來看圖吧~~

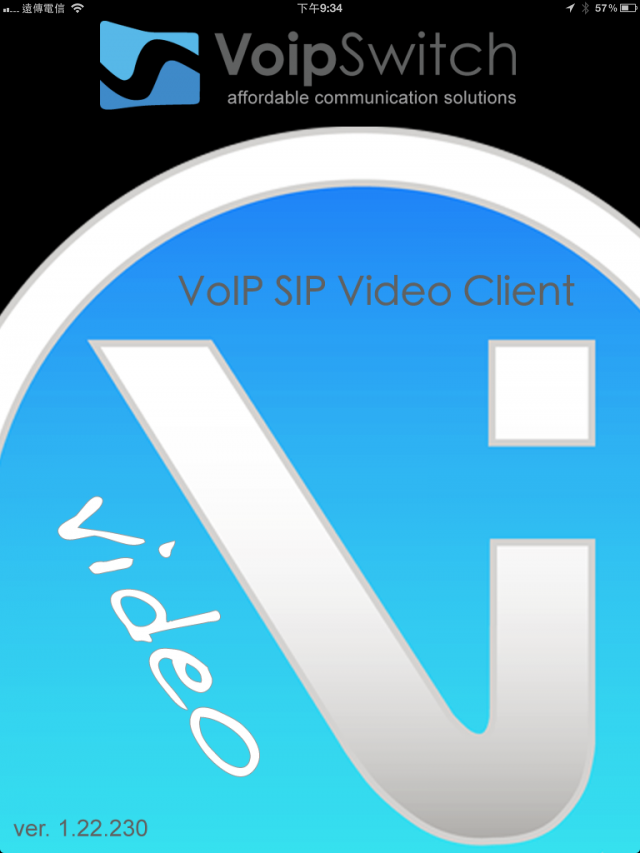

這是程式啟動時的畫面,會Hold住1~2秒.

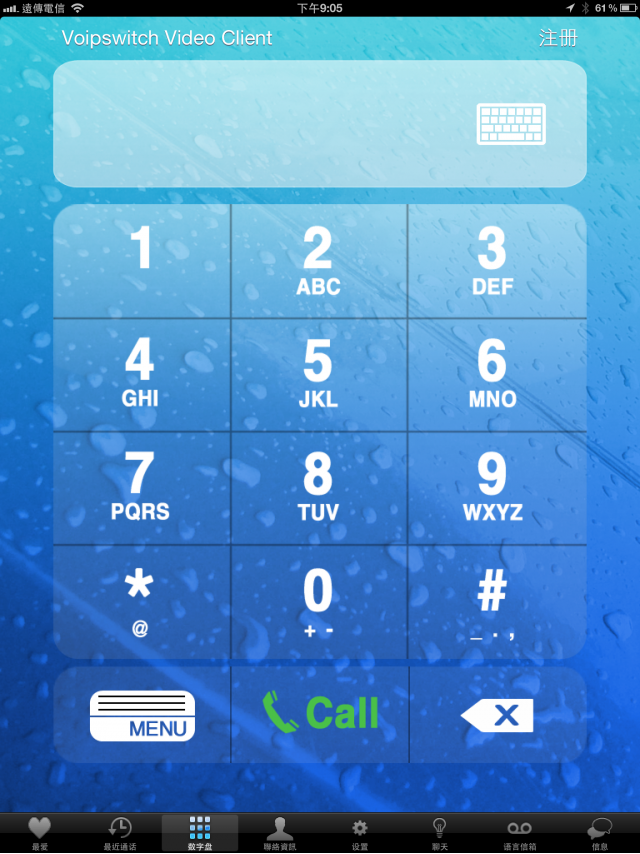

程式啟動後的畫面,在「數字盤」這一頁面上,讓您馬上可以打電話.

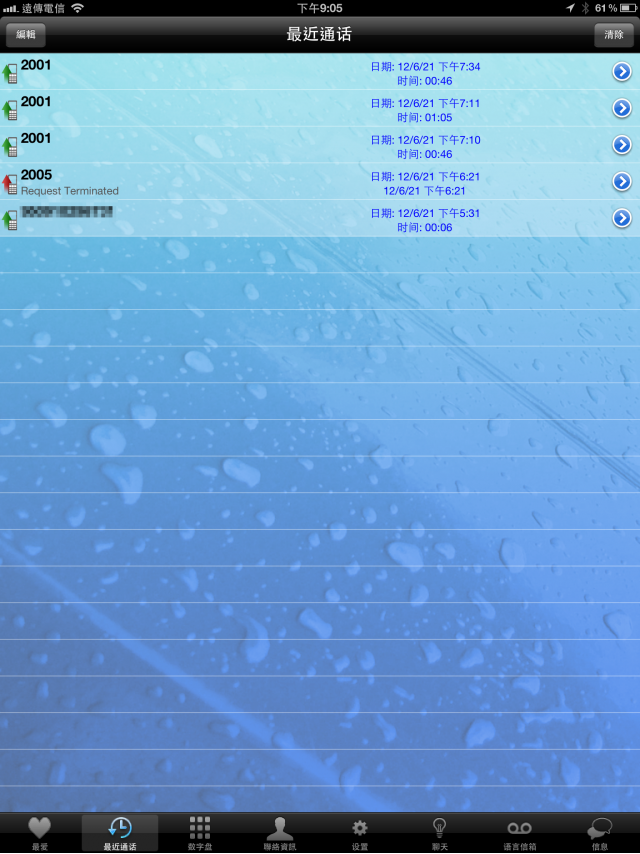

在「最近通話」這一頁面上,有撥打及接聽的紀錄.

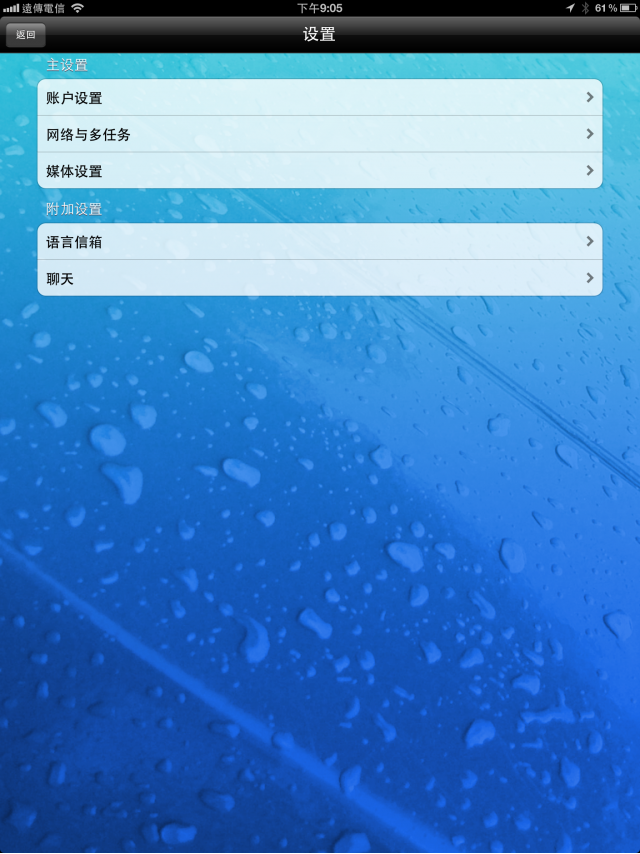

在「設置」有些參數及資訊要先設定才能使用.

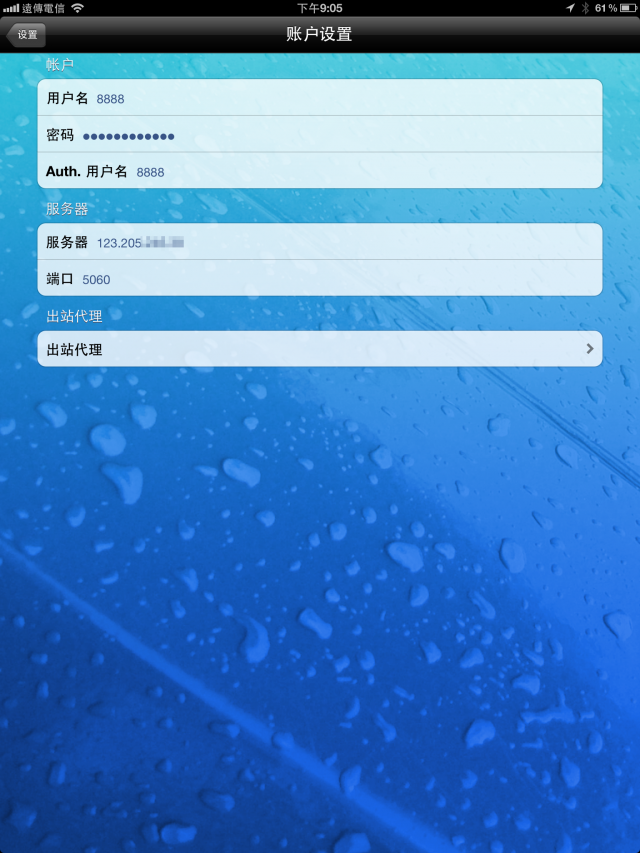

在「設置/帳戶設置」設定SIP Accont,只能設定一組.

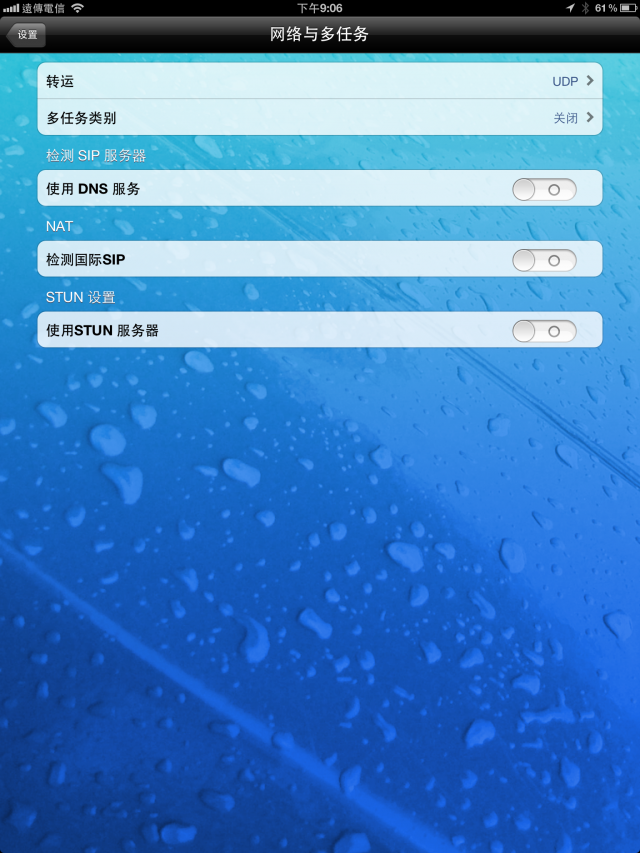

這是「設置/網路與多任務」設定頁面,初階使用者應該用不到.

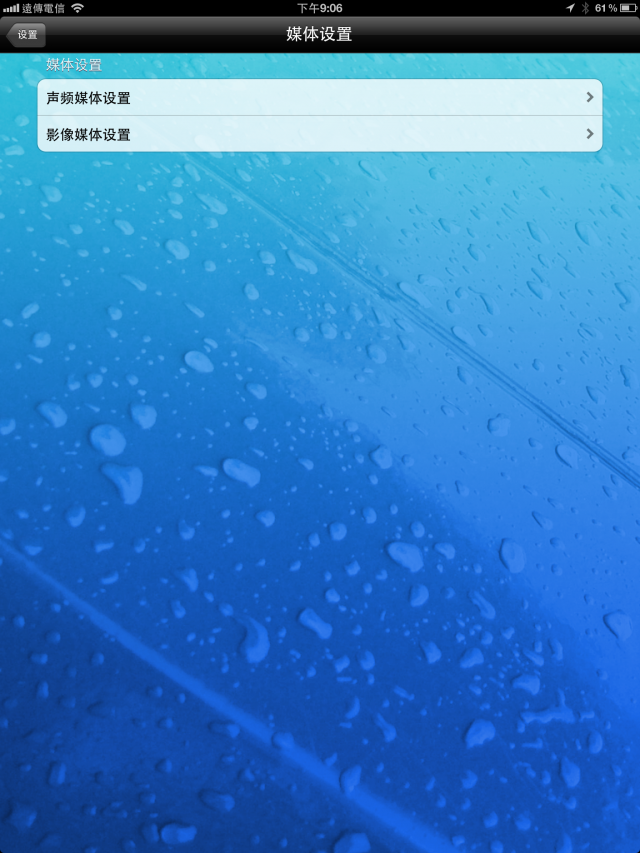

在「設置/媒體設置」設定頁面,還有區分「音頻媒體設置」及「影像媒體設置」.


這是「設置/音頻媒體設置」設定頁面.

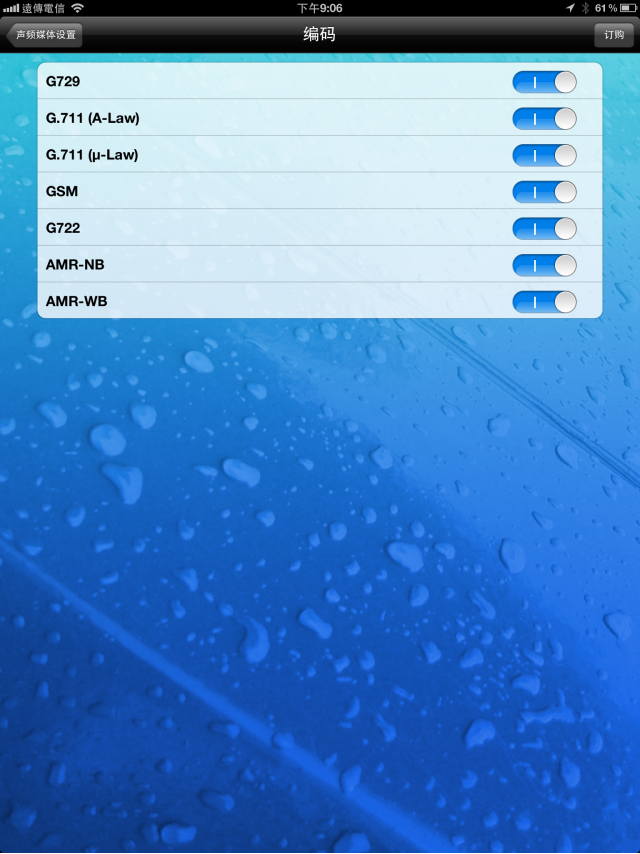

這是「設置/音頻媒體設置/編碼」設定頁面,支援G729、G711、GSM、G722、AMR..等多種Audio Codec.

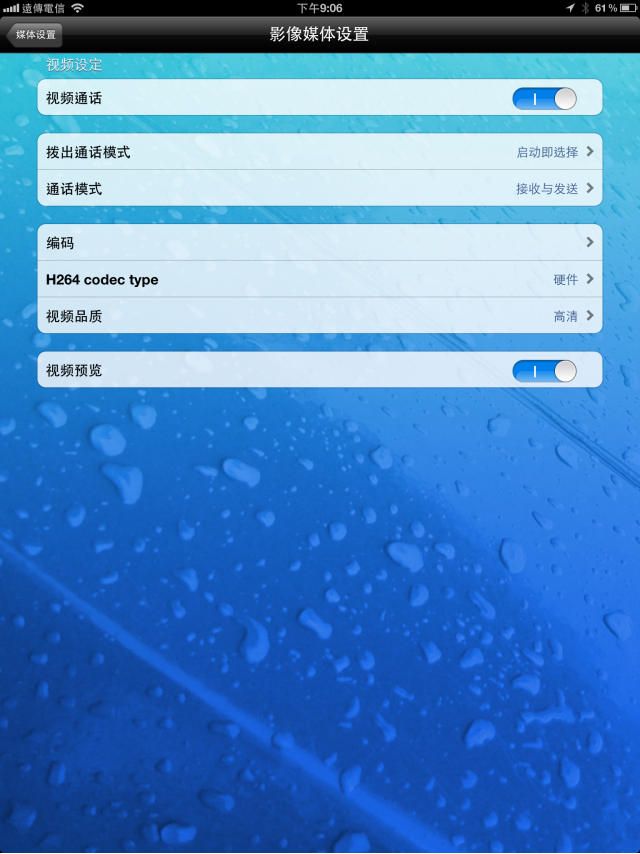

這是「設置/影像媒體設置」設定頁面.

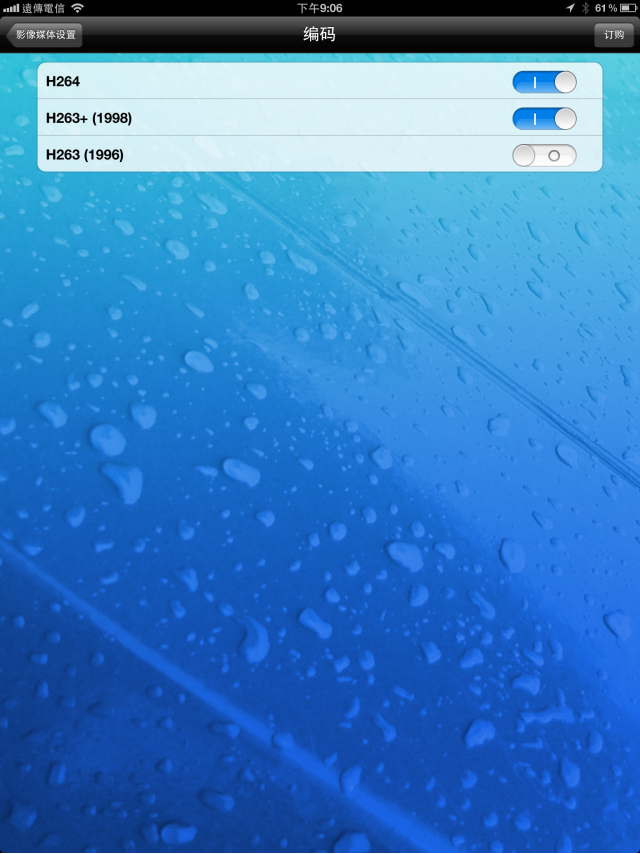

這是「設置/影像體設置/編碼」設定頁面,支援H264、H263+、H263等多種Video Codec.

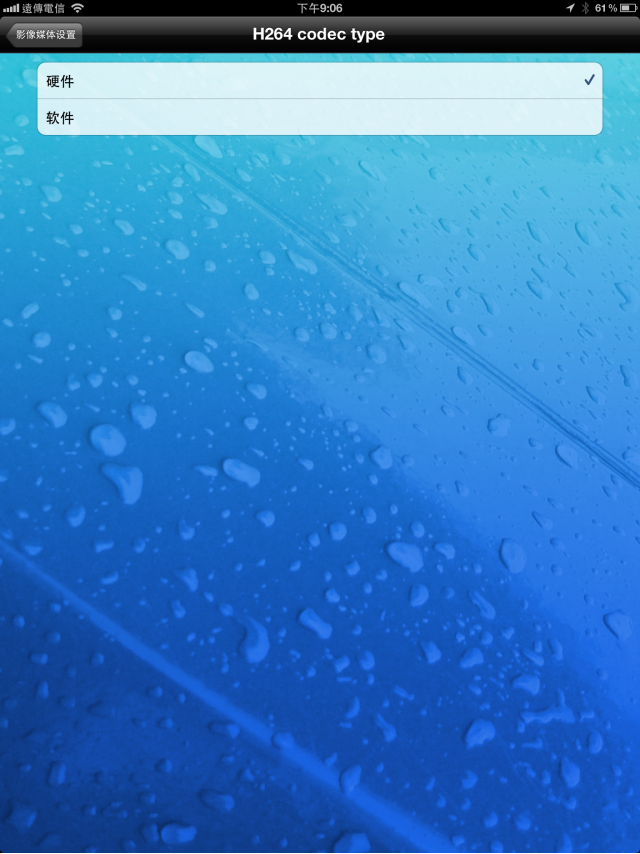

這是「設置/影像體設置/H264 Codec Type」設定頁面,可以設定軟解還是硬解.

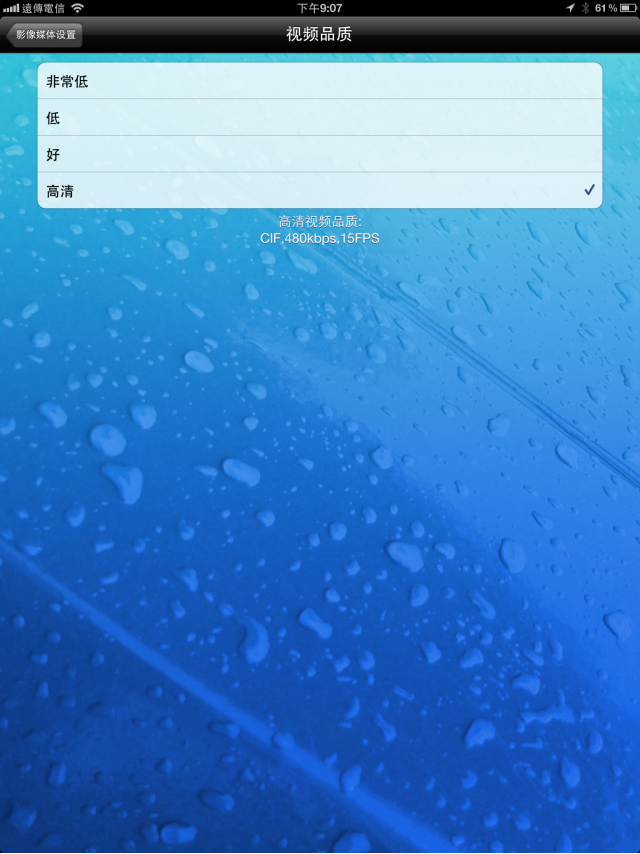

這是「設置/影像體設置/視頻品質」設定頁面,採用 '高清' 時,流量只需480kbps.

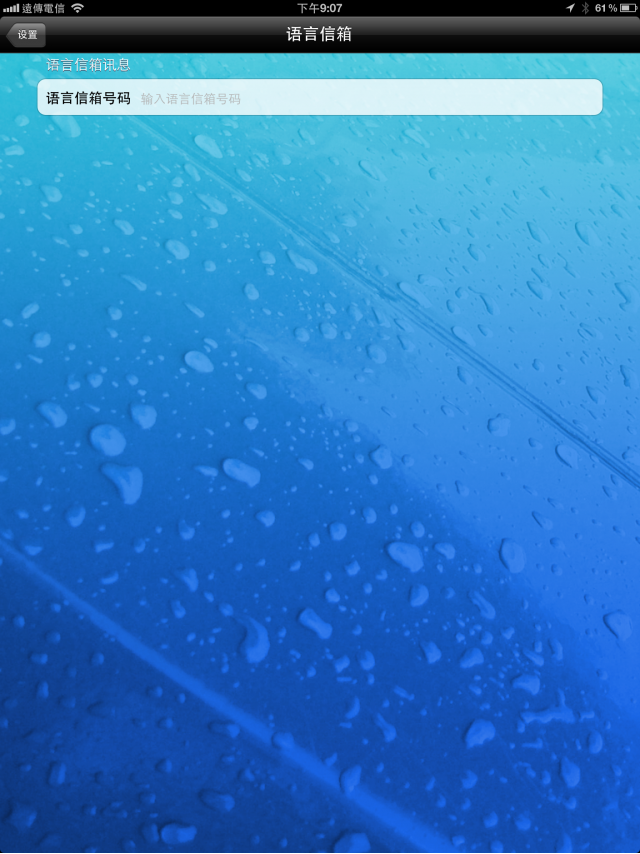

這是「設置/語音信箱」設定頁面,還不知道怎麼用.

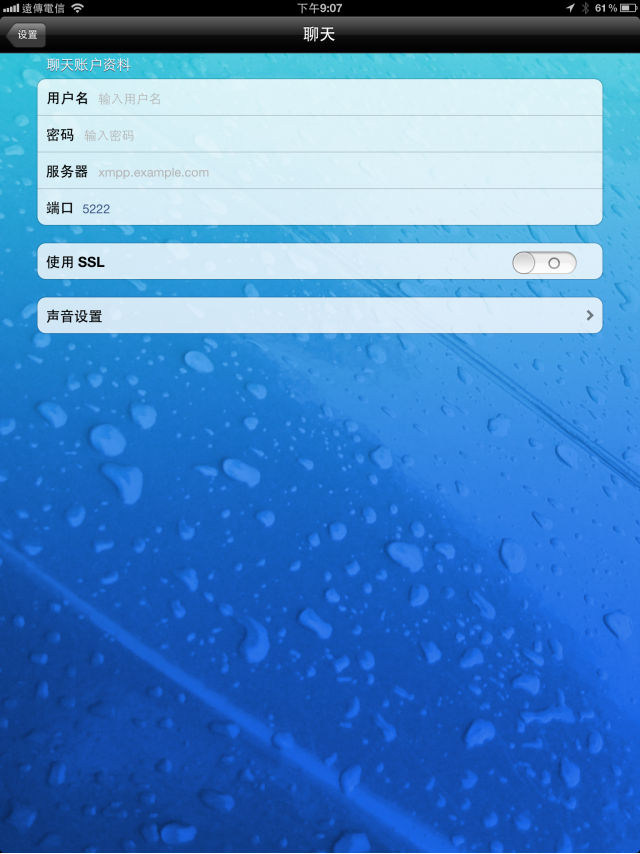

這是「設置/聊天」設定頁面,也是還不知道怎麼用.


小弟在新購入的牛排上安裝此APP後,註冊到 ITSP(ipbb)自建的IP-PBX 上,
實地以WiFi、3G連線來撥打SIP、PSTN、GSM..電話,都有很好的表現.

在影像電話的部份,和PC端的SIP Client軟體 'eyeBeam' 對測,也很不賴,因為不想露臉,所以就不貼圖了.
請問有轉接鍵嗎? 也就是說通話中可以把對方轉到其它分機的功能鍵。謝謝。

rontzong wrote:
iOS平台上有為數不...(恕刪)
telecom wrote:
請問有轉接鍵嗎? ...(恕刪)


這個APP沒有設計 '轉接(Forward/XFER)' 鍵...

在 Elastix 這套 IP-PBX 系統下,通話中可以按 '##+分機號碼' 轉到其它分機,
就如同 FXS Gateway 接一般話機的操作方法一樣.

這個APP在通話中能使出的功能就這幾樣...




※比較值得一提的是,它有內建 '通話錄音' 的功能喲!
很棒的一套軟體唷!通話時還有顯示網路訊號品質,圖形顯示是幾格。在台灣買app軟體真好,我上次買還扣我稅金快台幣600了
電話號碼是延用舊號碼還是會另外號碼阿....
來自passat club星球的ㄚ品... http://www.flickr.com/photos/7149064@N05/

PASSAT7525 wrote:
電話號碼是延用舊號碼...(恕刪)


這是VOIP網路電話,不是用SIM(GSM)撥出,沒有所謂的原來號碼.
撥號到固網的話,看ITSP的顯示代表號是幾號就是幾號,
例如:ipbb的顯示代表號是 0226969181
rontzong 大,

我在Apps Stoer中似乎找不到這個軟體可以購買
請問搜尋的關鍵字是"voipswitch"嗎?
或是軟體已下架?
好像改成 Vippie 了。

如果要找其他的 softphone,可以來這看看 http://goo.gl/EuNRr
-- IPOX: 0702500267 iNum: +883 510008099702
8823 wrote:
我在Apps Stoer中似乎找不到這個軟體可以購買
請問搜尋的關鍵字是"voipswitch"嗎?
或是軟體已下架?


從我文章的前段點擊VoipSwitch的連結,發現這套APP真的在APP Store內消失了...
我想它應該是下架了,好在我原先買的還在也還能用.

現在的連結會導入到VoipSwitch官網,進入第二層網頁後,點選VoIP softphone for iDevices,
發可以裝的APP是「Vippie - Free Calls, Video & Text」及「Join softphone - VoIP SIP client」2種.

我想是,原先整套封裝(含G.729、H.26X Codec)的VoipSwitch,現在換個名字拆賣了.
感謝rontzong大,

已下載Join softphone
不知道您有沒有推薦可以在Android平台可以支援H.263的softphone
