一個網樂通改osslab的問題

我把網樂通刷osslab分機開了,手機也登入成功了,可是為何我無法分機互撥呢?每次撥都說伺服器錯誤到底是哪裡設錯了呢?肯請各位大大幫忙!謝謝了!
2013-04-03 17:46 #1

檢查一下各分機是否有正常登入 nextpbx ,



另外各 user 的 dial plan 是否都有指定完成。

Today is not my day.
我有看過都有
geidak wrote:
我把網樂通刷ossl...(恕刪)
請提供以下設定畫面:

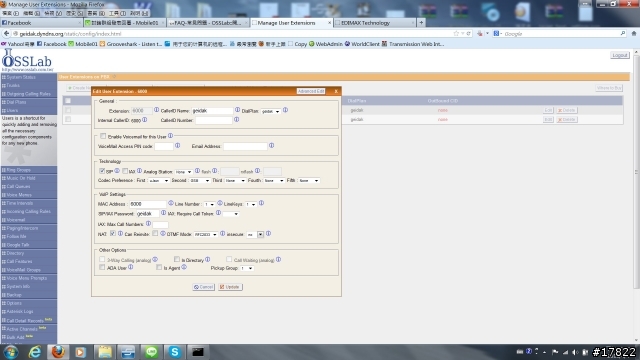

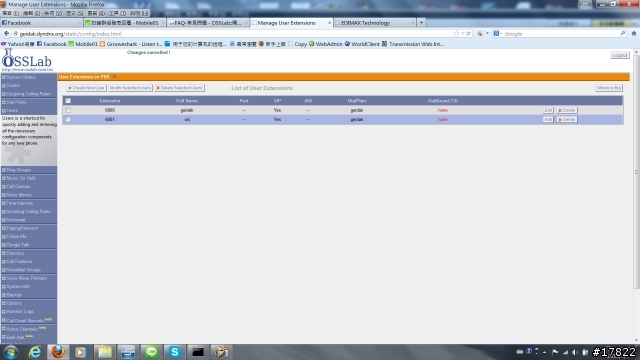

1. Users

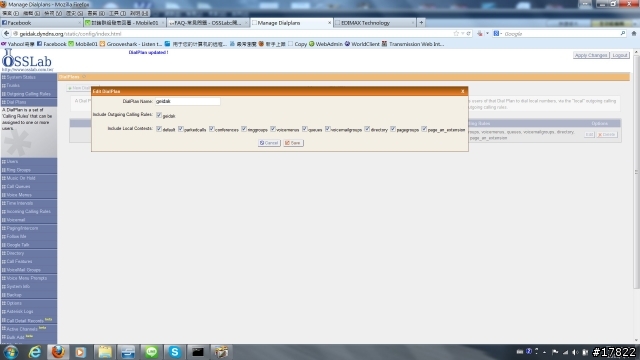

2. DialPlans

參考這篇教學 http://goo.gl/ig3O6
Q: 如何收集 Asterisk CLI 日誌(Log)?

將撥號後的 log 貼在 http://pastebin.com/
-- IPOX: 0702500267 iNum: +883 510008099702
[Apr 4 17:13:06] NOTICE[367] cdr.c: CDR simple logging enabled.
[Apr 4 17:13:06] NOTICE[367] loader.c: 160 modules will be loaded.
[Apr 4 17:13:07] WARNING[367] loader.c: Error loading module 'cdr_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:13:07] WARNING[367] loader.c: Error loading module 'cel_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:13:07] WARNING[367] loader.c: Error loading module 'app_dial.so': /usr/lib/asterisk/modules/app_dial.so: file too short
[Apr 4 17:13:07] WARNING[367] loader.c: Error loading module 'cdr_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:13:07] WARNING[367] loader.c: Module 'cdr_sqlite3_custom.so' could not be loaded.
[Apr 4 17:13:07] WARNING[367] loader.c: Error loading module 'cel_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:13:07] WARNING[367] loader.c: Module 'cel_sqlite3_custom.so' could not be loaded.
[Apr 4 17:13:07] WARNING[367] loader.c: Error loading module 'app_dial.so': /usr/lib/asterisk/modules/app_dial.so: file too short
[Apr 4 17:13:07] WARNING[367] loader.c: Module 'app_dial.so' could not be loaded.
[Apr 4 17:13:07] WARNING[367] res_musiconhold.c: No music on hold classes configured, disabling music on hold.
[Apr 4 17:13:07] NOTICE[367] chan_sip.c: The 'username' field for sip peers has been deprecated in favor of the term 'defaultuser'
[Apr 4 17:13:08] NOTICE[367] chan_skinny.c: Configuring skinny from skinny.conf
[Apr 4 17:13:08] WARNING[367] app_voicemail.c: Setting 'maxmessage' has been deprecated in favor of 'maxsecs'.
[Apr 4 17:13:08] WARNING[367] app_voicemail.c: Setting 'minmessage' has been deprecated in favor of 'minsecs'.
[Apr 4 17:13:10] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:13:28] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #5)
[Apr 4 17:13:30] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:13:48] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #9)
[Apr 4 17:13:49] WARNING[479] app_system.c: Unable to execute 'dahdi_scan > /etc/asterisk/dahdi_scan.conf'
[Apr 4 17:13:50] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:14:08] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #13)
[Apr 4 17:14:10] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:14:14] NOTICE[389] chan_sip.c: Registration from '<sip:1002@geidak.dyndns.org>' failed for '221.120.64.60:49610' - No matching peer found
[Apr 4 17:14:14] NOTICE[389] chan_sip.c: Registration from '<sip:1002@geidak.dyndns.org>' failed for '221.120.64.60:49610' - No matching peer found
[Apr 4 17:14:14] NOTICE[389] chan_sip.c: Registration from '<sip:1002@geidak.dyndns.org>' failed for '221.120.64.60:49610' - No matching peer found
[Apr 4 17:14:28] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #17)
[Apr 4 17:14:30] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:14:48] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #21)
[Apr 4 17:14:50] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:15:05] WARNING[610] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:15:08] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #25)
[Apr 4 17:15:10] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:15:10] WARNING[615] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:15:15] WARNING[619] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:15:28] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #29)
[Apr 4 17:15:30] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:15:48] WARNING[703] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6000, 1)
[Apr 4 17:15:48] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #33)
[Apr 4 17:15:50] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:16:08] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #37)
[Apr 4 17:16:10] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:16:28] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #41)
[Apr 4 17:16:30] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:16:48] NOTICE[389] chan_sip.c: -- Registration for 'geidak@iptel.org' timed out, trying again (Attempt #45)
[Apr 4 17:16:50] NOTICE[389] chan_sip.c: Failed to authenticate on REGISTER to 'geidak@iptel.org' (Tries 3)
[Apr 4 17:16:55] NOTICE[845] chan_skinny.c: Configuring skinny from skinny.conf
[Apr 4 17:16:55] NOTICE[845] app_queue.c: queuerules.conf has not changed since it was last loaded. Not taking any action.
[Apr 4 17:17:02] WARNING[849] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:18:48] NOTICE[981] chan_skinny.c: Configuring skinny from skinny.conf
[Apr 4 17:18:48] NOTICE[981] app_queue.c: queuerules.conf has not changed since it was last loaded. Not taking any action.
[Apr 4 17:19:54] NOTICE[367] cdr.c: CDR simple logging enabled.
[Apr 4 17:19:54] NOTICE[367] loader.c: 160 modules will be loaded.
[Apr 4 17:19:55] WARNING[367] loader.c: Error loading module 'cdr_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:19:55] WARNING[367] loader.c: Error loading module 'cel_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:19:55] WARNING[367] loader.c: Error loading module 'app_dial.so': /usr/lib/asterisk/modules/app_dial.so: file too short
[Apr 4 17:19:56] WARNING[367] loader.c: Error loading module 'cdr_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:19:56] WARNING[367] loader.c: Module 'cdr_sqlite3_custom.so' could not be loaded.
[Apr 4 17:19:56] WARNING[367] loader.c: Error loading module 'cel_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:19:56] WARNING[367] loader.c: Module 'cel_sqlite3_custom.so' could not be loaded.
[Apr 4 17:19:56] WARNING[367] loader.c: Error loading module 'app_dial.so': /usr/lib/asterisk/modules/app_dial.so: file too short
[Apr 4 17:19:56] WARNING[367] loader.c: Module 'app_dial.so' could not be loaded.
[Apr 4 17:19:56] WARNING[367] res_musiconhold.c: No music on hold classes configured, disabling music on hold.
[Apr 4 17:19:56] NOTICE[367] chan_sip.c: The 'username' field for sip peers has been deprecated in favor of the term 'defaultuser'
[Apr 4 17:19:56] NOTICE[367] chan_skinny.c: Configuring skinny from skinny.conf
[Apr 4 17:19:56] WARNING[367] app_voicemail.c: Setting 'maxmessage' has been deprecated in favor of 'maxsecs'.
[Apr 4 17:19:56] WARNING[367] app_voicemail.c: Setting 'minmessage' has been deprecated in favor of 'minsecs'.
[Apr 4 17:20:03] WARNING[455] app_system.c: Unable to execute 'dahdi_scan > /etc/asterisk/dahdi_scan.conf'
[Apr 4 17:20:09] WARNING[539] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:20:13] WARNING[543] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:22:59] NOTICE[673] chan_skinny.c: Configuring skinny from skinny.conf
[Apr 4 17:22:59] NOTICE[673] app_queue.c: queuerules.conf has not changed since it was last loaded. Not taking any action.
[Apr 4 17:24:39] NOTICE[367] cdr.c: CDR simple logging enabled.
[Apr 4 17:24:39] NOTICE[367] loader.c: 160 modules will be loaded.
[Apr 4 17:24:40] WARNING[367] loader.c: Error loading module 'cdr_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:24:40] WARNING[367] loader.c: Error loading module 'cel_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:24:40] WARNING[367] loader.c: Error loading module 'app_dial.so': /usr/lib/asterisk/modules/app_dial.so: file too short
[Apr 4 17:24:41] WARNING[367] loader.c: Error loading module 'cdr_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:24:41] WARNING[367] loader.c: Module 'cdr_sqlite3_custom.so' could not be loaded.
[Apr 4 17:24:41] WARNING[367] loader.c: Error loading module 'cel_sqlite3_custom.so': libsqlite3.so.0: cannot open shared object file: No such file or directory
[Apr 4 17:24:41] WARNING[367] loader.c: Module 'cel_sqlite3_custom.so' could not be loaded.
[Apr 4 17:24:41] WARNING[367] loader.c: Error loading module 'app_dial.so': /usr/lib/asterisk/modules/app_dial.so: file too short
[Apr 4 17:24:41] WARNING[367] loader.c: Module 'app_dial.so' could not be loaded.
[Apr 4 17:24:41] WARNING[367] res_musiconhold.c: No music on hold classes configured, disabling music on hold.
[Apr 4 17:24:41] VERBOSE[367] chan_sip.c: SIP channel loading...
[Apr 4 17:24:41] NOTICE[367] chan_sip.c: The 'username' field for sip peers has been deprecated in favor of the term 'defaultuser'
[Apr 4 17:24:41] NOTICE[367] chan_skinny.c: Configuring skinny from skinny.conf
[Apr 4 17:24:42] WARNING[367] app_voicemail.c: Setting 'maxmessage' has been deprecated in favor of 'maxsecs'.
[Apr 4 17:24:42] WARNING[367] app_voicemail.c: Setting 'minmessage' has been deprecated in favor of 'minsecs'.
[Apr 4 17:24:42] VERBOSE[367] res_clialiases.c: == Aliased CLI command 'hangup request' to 'channel request hangup'
[Apr 4 17:24:42] VERBOSE[367] res_clialiases.c: == Aliased CLI command 'originate' to 'channel originate'
[Apr 4 17:24:42] VERBOSE[367] res_clialiases.c: == Aliased CLI command 'help' to 'core show help'
[Apr 4 17:24:42] VERBOSE[367] res_clialiases.c: == Aliased CLI command 'pri intense debug span' to 'pri set debug 2 span'
[Apr 4 17:24:42] VERBOSE[367] res_clialiases.c: == Aliased CLI command 'reload' to 'module reload'
[Apr 4 17:24:50] WARNING[417] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:24:55] WARNING[418] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:26:14] WARNING[419] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:26:18] WARNING[420] pbx.c: No application 'Dial' for extension (DLPN_geidak, 6001, 1)
[Apr 4 17:27:34] NOTICE[430] manager.c: 114.33.37.200 failed to authenticate as 'admin'
[Apr 4 17:27:38] NOTICE[431] manager.c: 114.33.37.200 failed to authenticate as 'admin'
[Apr 4 17:27:45] WARNING[467] app_system.c: Unable to execute 'dahdi_scan > /etc/asterisk/dahdi_scan.conf'



geidak wrote:
[Apr 4 17...(恕刪)


圖片太糊了,看不清楚。
-- IPOX: 0702500267 iNum: +883 510008099702
