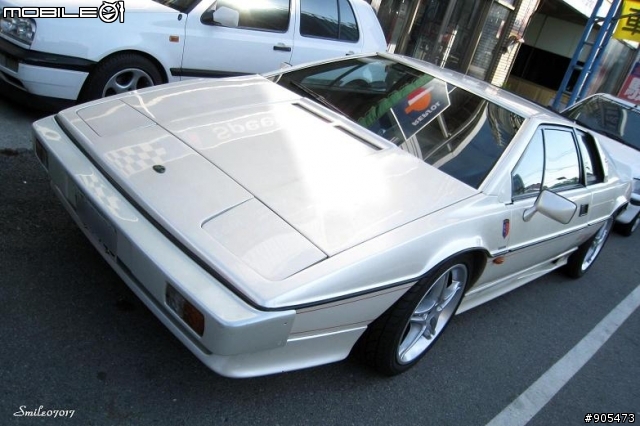

車子真的很低又很扁
排氣管好像有改過
裡面有裝錶

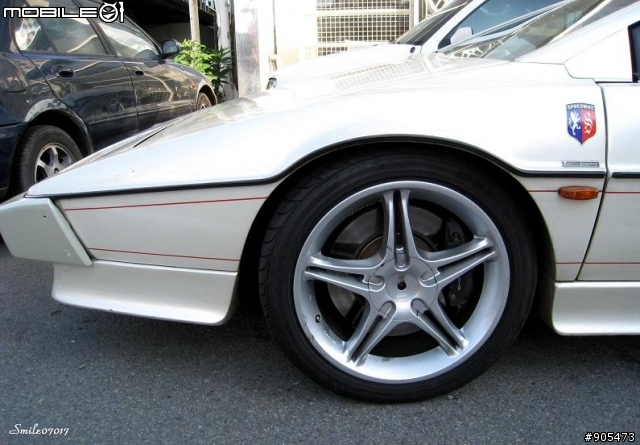

卡鉗是 Porsche 4活塞
看看唷
個人積分：68分
文章編號：9718695
個人積分：141分
文章編號：9719514
個人積分：16分
文章編號：9720388
個人積分：101分
文章編號：9720805
個人積分：68分
文章編號：9722619
rall206 wrote:
小弟活了24年孤陋寡...(恕刪)
大大 我有找到這個!!
但是都是英文 我也看不懂

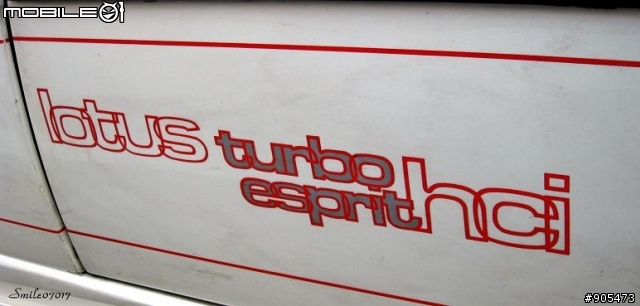

LOTUS ESPRIT
http://www.wretch.cc/album/smile07017
個人積分：16分
文章編號：9724319
rall206 wrote:
小弟活了24年孤陋寡...(恕刪)
SPECIFICATION
ENGINE
longitudinally, mid, rear-wheel drive
Head/ block al. alloy/al alloy. 4 cylinders in line.
Bore 95.3mm, stroke 76.2mm,
capacity 2174cc.
Valve gear 2ohc. 4 valves per cylinder.
Compression ratio 80 to 1.
Electronic breakerless ignition.
Twin Dellorto DHLA 45 carburettors
Garrett T3 turbocharger.
boost pressure 9.5psi (0.67bar).
Max power 215bhp (PS-DIN) (160kW ISO) at 6250rpm.
Max torque 2201b ft (298 Nm) at 4250rpm.
TRANSMISSION
5-speed manual
Gear Ratio
Top 0.82
4th 1.03
3rd 1.38
2nd 2.05
1st 3.36
Final drive ratio 3.88:1.
SUSPENSION
Front, independent, double wishbone. coil springs, telescopic dampers, and-roll bar.
Rear, independent, upper and lower transverse link with radius arms, coil springs, telescopic dampers, anti-roll bar.
STEERING
Rack and pinion.
Steering wheel diameter l4ins,
2.9 turns lock to lock.
BRAKES
Front l0.1ins(258mm) dia ventilated discs.
Rear l0.8ins (275.9mm) dia discs.
Vacuum servo.
WHEELS
Al alloy,7ins rims front. 8ins rear.
Goodyear Eagle NCT tyres
size 195/60VR15 F, 235/60VR15 R.
ACCELERATION FROM REST
True Time mph (secs)
30 2.05
40 2.85
50 4.20
60 5.35
70 7.35
80 9.25
90 11.85
100 14.65
Standing quarter mile: 14.4secs, 98mph
FUEL CONSUMPTION
Urban 15.7mpg, 56mph 35.6mpg and 75mph 28.8mpg. Grade of fuel: Premium, 4-star (96 RM) or unleaded (95RM) Fuel tank: 18.0 Imp galls (82 litres)
CLUTCH
Pedal 15lb; Travel: 6.O ins
WEIGHT
kerb 3052lb/1386kg distribution % F/R 51/49 Test 3434lb/l559kg Max payload 501lb/227kg
個人積分：135分
文章編號：9730038
pilotchen wrote:
SPECIFICAT...(恕刪)
ENGINE
longitudinally, mid, rear-wheel drive-----------------------------中置後驅
Head/ block al. alloy/al alloy. 4 cylinders in line.---------------直列四缸
Bore 95.3mm, stroke 76.2mm,------------------------------------衝程&缸徑(兩個我搞不清楚是哪個)
capacity 2174cc.-----------------------------------------------------排氣量:2174cc
Valve gear 2ohc. 4 valves per cylinder.-------------------------每缸四氣門?
Compression ratio 80 to 1.----------------------------看不懂
Electronic breakerless ignition.-----------------------看不懂
Twin Dellorto DHLA 45 carburettors-----------------看不懂
Garrett T3 turbocharger.-------------------------------------------渦輪型號:Garrett T3
boost pressure 9.5psi (0.67bar).---------------------------------增壓值0.67bar
Max power 215bhp (PS-DIN) (160kW ISO) at 6250rpm.-----馬力:215hp&馬力峰值轉速:6250
Max torque 2201b ft (298 Nm) at 4250rpm.--------------------扭力:298nm&扭力峰值轉速:4250rpm
TRANSMISSION-------------------------------------------------------變速箱??
5-speed manual-----------------------------------------------------五速手排
Gear Ratio-------------------------------------------------------------齒輪比配置?
Top 0.82---------------------------------------------------------------五檔齒輪比:0.82
4th 1.03---------------------------------------------------------------四檔齒輪比:1.03
3rd 1.38---------------------------------------------------------------三檔齒輪比:1.38
2nd 2.05--------------------------------------------------------------二檔齒輪比:2.05
1st 3.36---------------------------------------------------------------一檔齒輪比:3.36
Final drive ratio 3.88:1.--------------------------------------------終傳比:3.88
SUSPENSION
Front, independent, double wishbone. coil springs, telescopic dampers, and-roll bar.
Rear, independent, upper and lower transverse link with radius arms, coil springs, telescopic dampers, anti-roll bar.----------------------------------看不懂
STEERING-------------------------------------------------看不懂
Rack and pinion.-----------------------------------------看不懂
Steering wheel diameter l4ins,-----------------------看不懂
2.9 turns lock to lock.-----------------------------------看不懂
BRAKES---------------------------------------------------------------煞車
Front l0.1ins(258mm) dia ventilated discs.--------------------前碟盤尺寸:258mm(通風碟)
Rear l0.8ins (275.9mm) dia discs.-------------------------------後碟盤尺寸:275.9mm(實心碟?)
Vacuum servo.-------------------------------------------看不懂
WHEELS--------------------------------------------------------------輪胎
Al alloy,7ins rims front. 8ins rear.--------------------看不懂(什麼前七後八)
Goodyear Eagle NCT tyres---------------------------------------輪胎款式:Goodyear Eagle NCT tyres
size 195/60VR15 F, 235/60VR15 R.-----------------------------輪胎尺寸&等級:前195/60/VR15 F
後235/60VR15 R
ACCELERATION FROM REST---------------------------------------加速測試
True Time mph (secs)
30 2.05---------------------------------------------------------------0~30英哩:2.05秒
40 2.85---------------------------------------------------------------0~40英哩:2.85秒
50 4.20---------------------------------------------------------------0~50英哩:4.2秒
60 5.35---------------------------------------------------------------0~60英哩:5.35秒
70 7.35---------------------------------------------------------------0~70英哩:7.35秒
80 9.25---------------------------------------------------------------0~80英哩:9.25秒
90 11.85-------------------------------------------------------------0~90英哩:11.85秒
100 14.65------------------------------------------------------------0~100英哩:14.65秒
Standing quarter mile: 14.4secs, 98mph----------------------1/4英哩(400公尺):14.4秒;通過末速98英哩
FUEL CONSUMPTION
Urban 15.7mpg, 56mph 35.6mpg and 75mph 28.8mpg. Grade of fuel: Premium, 4-star (96 RM) or unleaded (95RM) Fuel tank: 18.0 Imp galls (82 litres)
CLUTCH
Pedal 15lb; Travel: 6.O ins
WEIGHT
kerb 3052lb/1386kg distribution % F/R 51/49 Test 3434lb/l559kg Max payload 501lb/227kg
後面懶得翻
他們做的規格表以及測試太詳細了吧
,[0~30]~[0~100]都要測
個人積分：17分
文章編號：9744501
個人積分：22分
文章編號：9756995
longitudinally, mid, rear-wheel drive-----------------------------中置後驅
Head/ block al. alloy/al alloy. 4 cylinders in line.---------------直列四缸
Bore 95.3mm, stroke 76.2mm,------------------------------------衝程(Stroke)&缸徑(Bore)
capacity 2174cc.-----------------------------------------------------排氣量:2174cc
Valve gear 2ohc. 4 valves per cylinder.-------------------------每缸四氣門?<--對(兩根頂置式凸輪軸)
Compression ratio 80 to 1.----------------------------看不懂<-- 壓縮比 8.0比1 (少了個點才對)
Electronic breakerless ignition.-----------------------看不懂<-- 電子式直接點火(沒打火頭的那種)
Twin Dellorto DHLA 45 carburettors-----------------看不懂<-- 兩個Dellorto DHLA 45 化油器
Garrett T3 turbocharger.-------------------------------------------渦輪型號:Garrett T3
boost pressure 9.5psi (0.67bar).---------------------------------增壓值0.67bar
Max power 215bhp (PS-DIN) (160kW ISO) at 6250rpm.-----馬力:215hp&馬力峰值轉速:6250
Max torque 2201b ft (298 Nm) at 4250rpm.--------------------扭力:298nm&扭力峰值轉速:4250rpm
TRANSMISSION-------------------------------------------------------變速箱?? <<- 對
5-speed manual-----------------------------------------------------五速手排
Gear Ratio-------------------------------------------------------------齒輪比配置? <<- 對
Top 0.82---------------------------------------------------------------五檔齒輪比:0.82
4th 1.03---------------------------------------------------------------四檔齒輪比:1.03
3rd 1.38---------------------------------------------------------------三檔齒輪比:1.38
2nd 2.05--------------------------------------------------------------二檔齒輪比:2.05
1st 3.36---------------------------------------------------------------一檔齒輪比:3.36
Final drive ratio 3.88:1.--------------------------------------------終傳比:3.88
SUSPENSION
Front, independent, double wishbone. coil springs, telescopic dampers, and-roll bar.
Rear, independent, upper and lower transverse link with radius arms, coil springs, telescopic dampers, anti-roll bar.----------------------------------前，獨立式，雙A臂，圈狀彈簧，潛望鏡式避震筒(單筒式的吧，我想)，平衡桿;后面-獨立式，多連桿(上/下+Radius arm有點像是拖曳臂嗎?我的e36也是這種設計)，圈狀彈簧，潛望鏡式避震筒，平衡桿。
STEERING-------------------------------------------------轉向系統
Rack and pinion.-----------------------------------------齒棒小齒輪式
Steering wheel diameter l4ins,-----------------------方向盤尺寸 14英吋(約300mm)
2.9 turns lock to lock.-----------------------------------左死點到右死點 2.9轉
BRAKES---------------------------------------------------------------煞車
Front l0.1ins(258mm) dia ventilated discs.--------------------前碟盤尺寸:258mm(通風碟)
Rear l0.8ins (275.9mm) dia discs.-------------------------------後碟盤尺寸:275.9mm(實心碟?<<-對)
Vacuum servo.-------------------------------------------有裝置真空倍力器
WHEELS--------------------------------------------------------------輪胎
Al alloy,7ins rims front. 8ins rear.--------------------輪圈寬度(就是J值，前七寸後八寸)
Goodyear Eagle NCT tyres---------------------------------------輪胎款式:Goodyear Eagle NCT tyres
size 195/60VR15 F, 235/60VR15 R.-----------------------------輪胎尺寸&等級:前195/60/VR15 F
後235/60VR15 R
ACCELERATION FROM REST---------------------------------------加速測試
True Time mph (secs)
30 2.05---------------------------------------------------------------0~30英哩:2.05秒
40 2.85---------------------------------------------------------------0~40英哩:2.85秒
50 4.20---------------------------------------------------------------0~50英哩:4.2秒
60 5.35---------------------------------------------------------------0~60英哩:5.35秒
70 7.35---------------------------------------------------------------0~70英哩:7.35秒
80 9.25---------------------------------------------------------------0~80英哩:9.25秒
90 11.85-------------------------------------------------------------0~90英哩:11.85秒
100 14.65------------------------------------------------------------0~100英哩:14.65秒
Standing quarter mile: 14.4secs, 98mph----------------------1/4英哩(400公尺):14.4秒;通過末速98英哩
FUEL CONSUMPTION
Urban 15.7mpg, 56mph 35.6mpg and 75mph 28.8mpg. Grade of fuel: Premium, 4-star (96 RM) or unleaded (95RM) Fuel tank: 18.0 Imp galls (82 litres)
CLUTCH
Pedal 15lb; Travel: 6.O ins
WEIGHT
kerb 3052lb/1386kg distribution % F/R 51/49 Test 3434lb/l559kg Max payload 501lb/227kg
以上
