NVIDIA & ATI 電壓 和 相對對照表

給想買顯示卡的人參考用
不用常常一陣子就忘記需要去查

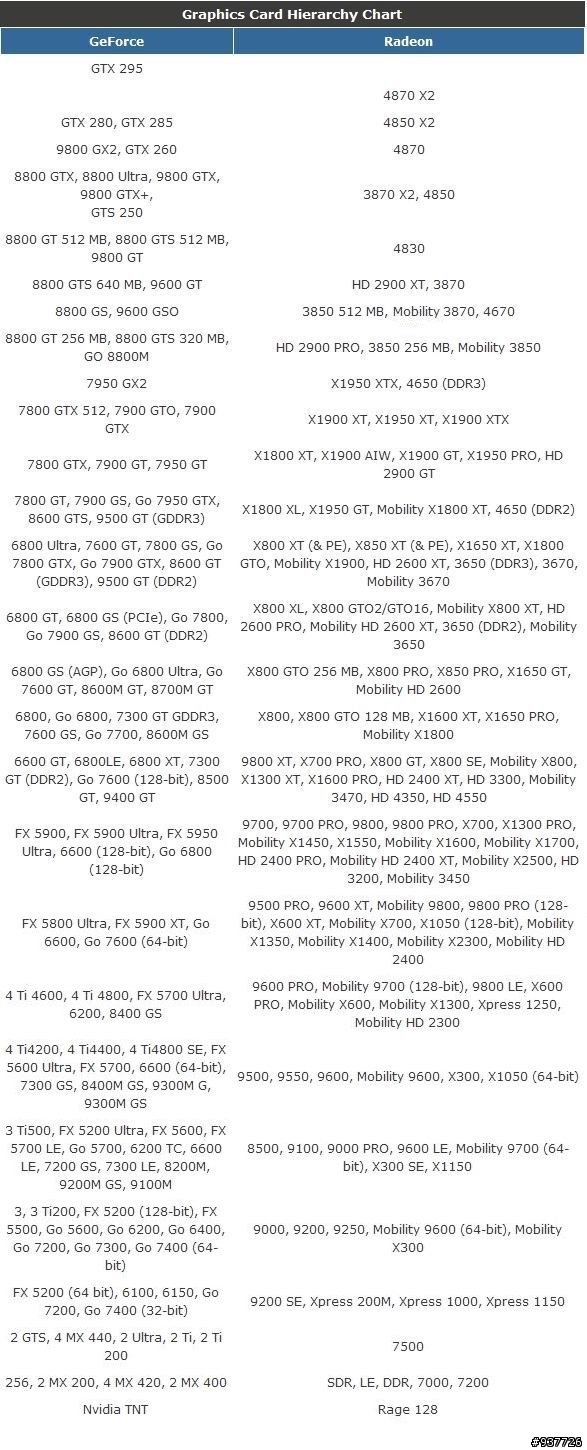

下面已經有人貼出圖表比較容易查詢,所以刪除對照部分只留電壓比較

耗電量分別是Idle值→2D Peak值→3D Peak值

ATI Multicard
----------------------------
HD4870X2 CF__________ 158W-510W !
HD4870X2 + HD4870 CF_ 159W-408W ! (HD4870 512MB)
HD4870 CF____________ 128W-255W !
HD4870 + HD4850 CF __ 96W-221W §
HD4850 CF____________ 78W-199W ^

HD3870 X2 CF_________ 95W-307W ^
HD3870X2 + HD3870 CF_ 82W-225W ^
HD3870 CF____________ 40W-163W !
HD3850 CF____________ 40W-139W !

HD2900 XT CF_________ 105W-306W ! (2x 1GB GDDR4)
HD2900 XT CF_________ 121W-331W ! (2x 512MB GDDR3)

X1950 XTX CF_________ 37W-211W !
X1900 XTX CF_________ 43W-217W !
X1900 XT CF__________ 27W-189W !
X1950 Pro CF_________ 24W-110W !
X1900 GT CF _________ 123W

X1800 XT CF__________ 52W-171W !
X1800 XL CF__________ 62W-149W !
X1650 XT CF__________ 25W-101W !
X1600 XT CF__________ 78W
X1600 PRO CF________ 67W
X1300 PRO CF________ 60W
X850 XT CF___________ 115W
X800 XL CF___________ 81W

ATI Single Card
----------------------------
HD4870 X2____________ 88W-262W !
HD4870 ______________ 65W-80W-130W 2
HD4850 X2____________ 230W %
HD4850 OC____________ 64W-133W § (800/1250)
HD4850 ______________ 41W-61W-110W 2
HD4670 ______________ 10W-70W %
HD4650 ______________ 10W-80W %
HD4470 ______________ 10W-50W %
HD4450 ______________ 10W-30W %

HD3870 X2____________ 58W-66W-171W 2
HD3870 ______________ 19W-25W-81W 2
HD3850 X3____________ 156W §
HD3850 X2____________ 54W-145W §
HD3850 ______________ 14W-20W-63W 2
HD3690 ______________ 21W-51W §
HD3650 ______________ 12W-42W 2 (512MB)
HD3650 ______________ 19W-53W § (256MB)
HD3470 ______________ 32W
HD3450 ______________ 18W-36W §

HD2900 XTX___________ 270W % (OEM 12.4")
HD2900 XTX___________ 240W % (Retail 9.5")
HD2900 XT____________ 65W-150W ! (1GB GDDR4)
HD2900 XT____________ 72W-76W-161W 2 (512MB GDDR3)
HD2900 Pro___________ 71W-76W-133W 2
HD2900 XL____________ 180W %

HD2600 XT____________ 21W-28W-49W 2
HD2600 Pro___________ 16W-22W-31W 2
HD2400 XT____________ 7W-15W-19W 2
HD2400 Pro___________ 9W-15W &
HD2400 LE ___________ <25W +

X1950 XTX____________ 33W-54W-125W 2
X1900 XTX____________ 29W-50W-121W 2
X1950 XT_____________ 96W
X1900 XT_____________ 28W-46W-109W 2
X1900 XT_____________ 26W-100W ^ (R580+ 256MB model)
X1950 Pro____________ 24W-36W-66W 2
X1950 GT ____________ 30W-57W &
X1900 GT ____________ 25W-45W-75W 2

X1800 XT OC _________ 26W-48W-110W 2 (XT OC version, 700/1600)
X1800 XT_____________ 30W-52W-103W 2
X1800 XL_____________ 27W-42W-57W 2
X1800 GTO___________ 25W-35W-48W 2
X1650 XT_____________ 23W-42W-55W 2
X1650 Pro____________ 23W-44W &
X1600 XT_____________ 24W-38W-42W 2
X1600 Pro____________ 24W-30W-41W 2
X1550 _______________ 27W
X1300 XT_____________ 22W
X1300 Pro____________ 18W-26W-31W 2
X1050 _______________ 24W
X850 XT PE___________ 67W
X850 XT______________ 27W-45W-69W 2
X800 XT PE___________ 18W-63W 2
X800 XT ______________ 54W
X800 Pro _____________ 15W-48W 2
X800 XL ______________ 18W-36W-49W 2
X800 GTO ____________ 19W-31W-49W 2
X800 GT______________ 21W-31W-40W 2
X800_________________ 30W
X700 XT______________ 12W-38W !
X700 PRO ____________ 16W-30W-33W 2
X700_________________ 15W-44W ^
X600 XT______________ 11W-25W !
X600 Pro_____________ 12W-36W ^
X300_________________ 8W-36W !
X300 SE______________ 7W-30W ^

9800 XT______________ 38W-60W 2
9800 Pro_____________ 31W-47W 2
9700/9800____________ 34W
9600 XT______________ 9W-22W 2
9600 Pro_____________ 9W-18W 2
9500/9600____________ 12W
9000-9200____________ 28W
7x00-8500____________ 23W
<=32MB AGP/PCI _____ <15w

nVidia Multicard
----------------------------
GTX280 3x SLI ________ 520W §
GTX280 SLI___________ 88W-345W ^
GTX260 3x SLI ________ 130W-389W !
GTX260 SLI___________ 95W-272W !

9800 GX2 SLI_________ 144W-325W ^ ("Quad SLI")
9800 GTX 3x SLI ______ 142W-234W !
9800 GTX+ SLI________ 102W-215W ^
9800 GTX SLI_________ 92W-228W ^
9600 GT SLI__________ 79W-137W ! (2x 512MB)

8800 Ultra 3x SLI______ 247W-496W ^
8800 Ultra SLI ________ 168W-313W ^
8800 GTX SLI_________ 142W-231W !
8800 GTS SLI_________ 103W-217W § (2x 512MB)
8800 GT SLI__________ 79W-157W ^ (2x 512MB)
8800 GTS SLI_________ 112W-177W ! (2x 640MB)
8800 GTS SLI_________ 169W (2x 320MB)
8600 GTS SLI_________ 79W

7950 GX2 SLI_________ 89W-169W ! ("Quad SLI")
7950 GT SLI__________ 49W-117W !
7900 GX2 SLI_________ 205W ("Quad SLI")
7900 GTX SLI_________ 62W-168W !
7900 GT SLI__________ 41W-98W !
7900 GS SLI__________ 41W-101W !
7800 GTX 512 SLI _____ 64W-193W !
7800 GTX SLI_________ 56W-161W !
7800 GT SLI__________ 35W-120W !
7600 GT SLI__________ 24W-69W !
7600 GS SLI__________ 47W
7300 GS SLI__________ 29W

6800 Ultra SLI_________ 122W
6800 GT SLI __________ 94W
6800 GS SLI__________ 39W-115W !
6600 GT SLI __________ 33W-90W !

nVidia Single Cards
---------------------------------
GTX 280______________ 50W-79W-178W 2
GTX 260______________ 44W-65W-136W 2

9800 GX2_____________ 69W-83W-182W 2
9800 GTX+____________ 52W-117W !
9800 GTX OC__________ 68W-82W-183W 2 (875/1100 1.528v)
9800 GTX_____________ 45W-54W-108W 2
9800 GT______________ 35W-116W ~
9600 GT______________ 27W-34W-61W 2 (512MB)
9600 GT______________ 26W-59W § (256MB)
9600 GSO ____________ 46W
9500 GT______________ 19W-35W § (256MB)

8800 Ultra____________ 85W-161W *
8800 GTX ____________ 70W-83W-132W 2 (768MB)
8800 GTS ____________ 38W-58W-99W 2 (512MB G92)
8800 GT OC __________ 36W-41-86W 2 (512MB 700/1025)
8800 GT _____________ 35W-39W-78W 2 (512MB)
8800 GT _____________ 31W-50W ^ (256MB)
8800 GTS OC_________ 60W-78W-117W 2 (640MB 576/1350)
8800 GTS ____________ 58W-71W-106W 2 (640MB)
8800 GTS ____________ 56W-69W-103W 2 (320MB)
8800 GS _____________ 27W-59W §
8600 GTS ____________ 21W-31W-47W 2
8600 GT _____________ 26W-52W ^
8500 GT _____________ 14W-19W-27W 2
8400 GS _____________ 30W
8300 GS _____________ 18W

7950 GX2 ____________ 50W ^-110W 2
7900 GX2 ____________ 109W
7900 GTX ____________ 31W-52W-84W 2
7900 GTO ____________ 27W-92W &
7950 GT _____________ 26W-37W-61W 2
7900 GT _____________ 23W-32W-48W 2
7900 GS _____________ 19W-28W-45W 2
7800 GTX 512_________ 29W-53W-95W 2
7800 GTX ____________ 29W-52W-81W 2
7800 GT _____________ 20W-39W-57W 2
7800 GS _____________ 44W
7600 GT _____________ 15W-23W-36W 2
7600 GS _____________ 14W-20W-27W 2 (underclocked GT)
7300 GT _____________ 13W-29W &
7300 GS _____________ 9W-10W-16W 2
7300 LE______________ 10W

6800 Ultra____________ 29W-72W 2
6800 GT _____________ 23W-55W 2
6800 GS_____________ 20W-41W-55W 2
6800 ________________ 15W-31W-39W 2
6600 GT _____________ 19W-39W-48W 2
6600 ________________ 12W-24W-27W 2 (GDDR2 model)
6200 ________________ 11W-26W !

FX 5950 Ultra_________ 20W-73W 2
FX 5900 Ultra_________ 27W-59W 2
FX 5900 XT___________ 24W-35W !
FX 5800 _____________ 44W
FX 5700 Ultra_________ 24W-46W 2
FX 5700 _____________ 10W-24W 2
FX 5600 _____________ 37W
FX 5200 _____________ 27W

GF4 Ti ______________ 40W
GF4 MX _____________ 22W
GF3 Ti ______________ 35W
<=32MB AGP/PCI_____ <15w

Quadro range
FX 5600______________ 138W
FX 5500______________ 76W
FX 4500______________ 88W
FX 4400______________ 57W
FX 4000 PCI-E ________ 71W
FX 4000 AGP _________ 72W
FX 3700______________ 14W-75W 2
FX 3450______________ 70W
FX 3400______________ 54W
FX 1700______________ 7W-61W 2
FX 1400______________ 17W-75W §
FX 1300______________ 51W
FX 570_______________ 7W-57W 2
FX 540_______________ 29W
FX 330_______________ 30W

FireGL range
GL V8600____________ 95W-159W 2
GL V7600____________ 65W-127W 2
GL V7350____________ 33W-111W §
GL V7300____________ 97W
GL V7100____________ 91W
GL V5600____________ 15W-89W 2
GL V5200____________ 35W
GL V3600____________ 7W-73W 2
GL V3200____________ 46W

GL X3-256____________ 57W
GL X1-256____________ 37W
