CPU: 3930k
MB: p9x79 ws

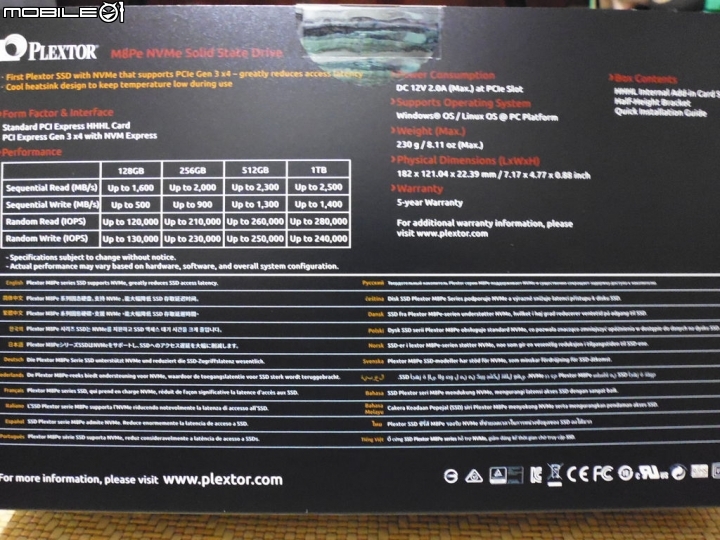

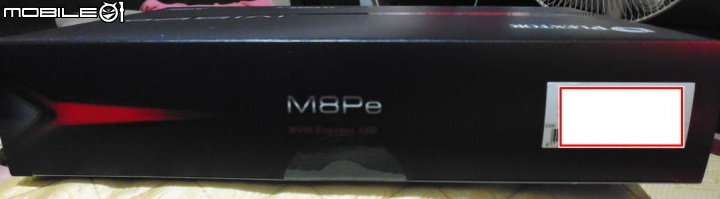

期待已久的 M8pe 其性能沒讓人失望
相片沒拍好,請多包涵
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-b02f2c602202b731f0d23713aabedf80.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-d5d39338622dd9ee95f17458563d7b0d.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-a0e064f584b9bc9488585a96d91e9c51.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-2795a3147d2b4c94675c6308399d6735.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-c6b8efbfa4d1f38bdd06392ef4effd6c.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-26035c791bb8179c86eca056fb2c883d.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-62c3f987a19a30f6f779a6b9b7a5f9a3.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-ba42cdd79fac853ff3d4cec93927773e.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-00e8efaa16c0a79366089bbfd4c50f74.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-daab0e4419ddfd8746ae4934e7cf8a04.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-7ed2cda92f28c85f5c2bef2e0ab90d77.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-a84ad1d44cfcefd2800d8c2dd0d990c9.jpg)

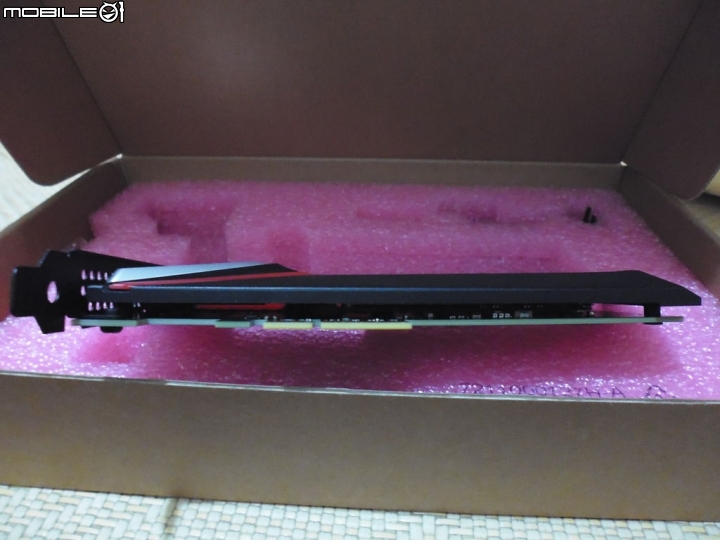

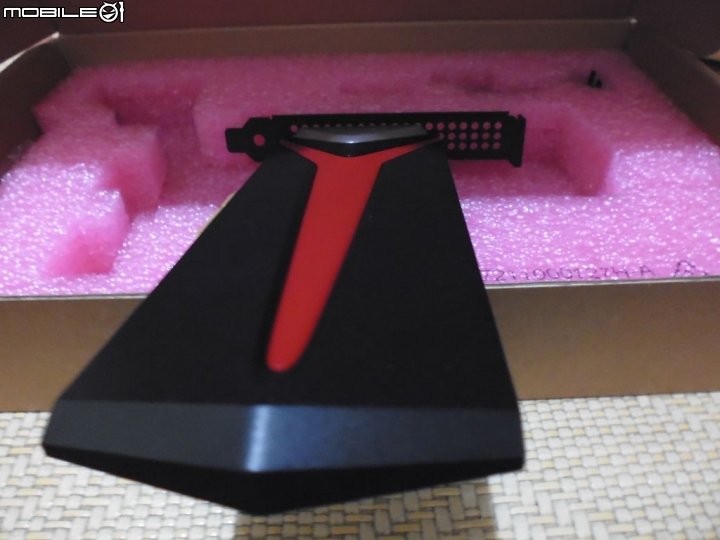

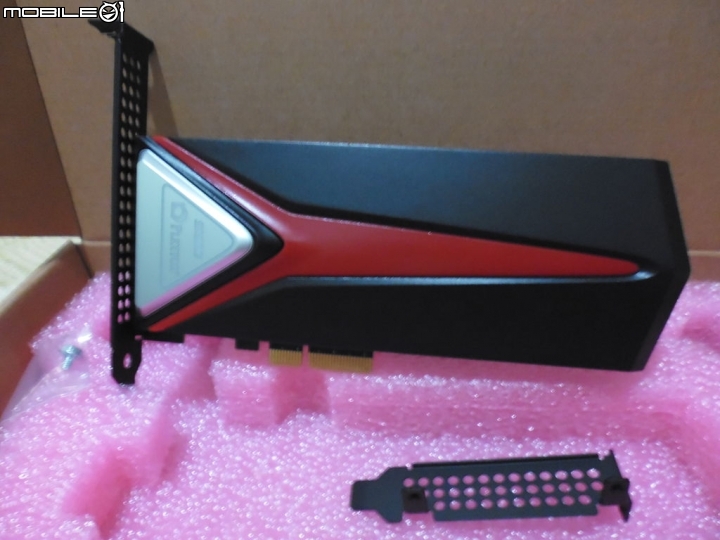

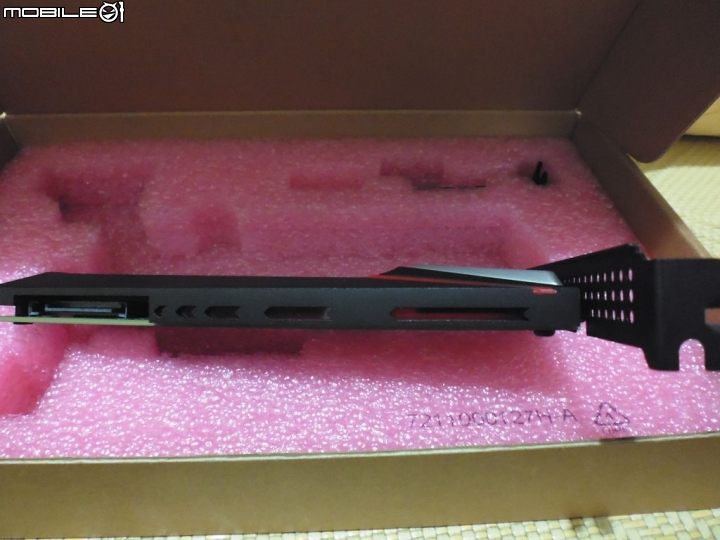

拿起來才發現,很沉... 散熱片是鋁塊、鋁磚 ? 有點重量,小小一張還挺重的。
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-3d4da2d2b42357220749834a788ff9e9.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-cbb86aab548557ad99fdbdf1967bfdba.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-f54da8f15194dfec9090d3c5389301c3.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-2e2bcdf56f2803c21430893cf91e324c.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-70a9b65fad3b7b0cf14be01dba4e11a8.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-ee30c8808f1b6559cca9ea5e6638b350.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-66bebe9ca0dbb5fdd03a7d69234aa025.jpg)

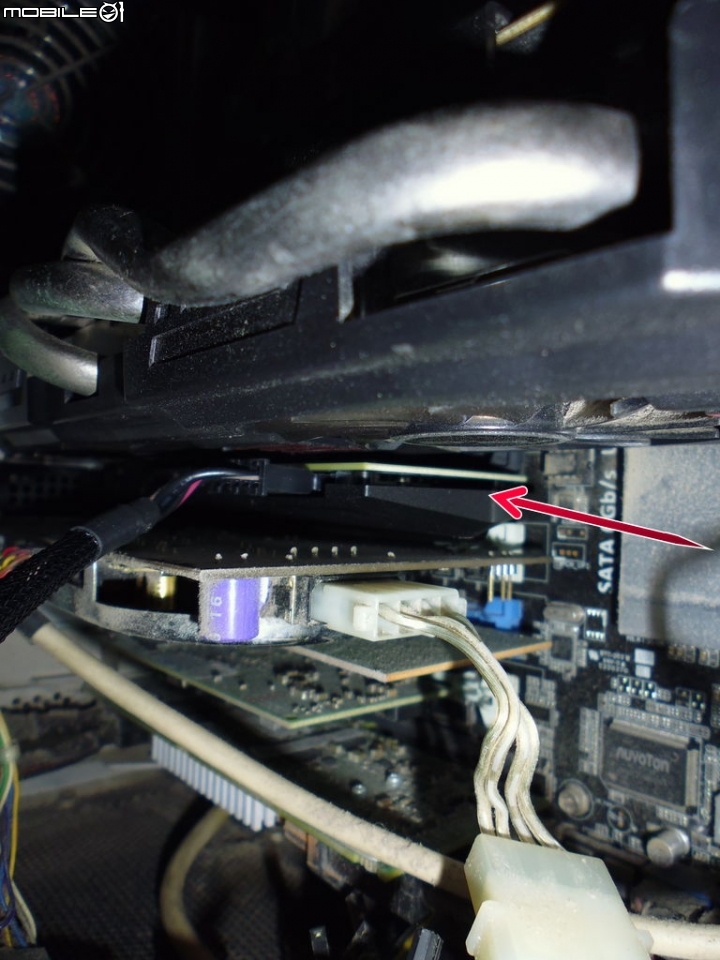

很擁擠,因為安插了 6 張 PCI-E 介面卡,主機板上的 PCI-E 插槽全插滿。
M8pey 紅箭頭指示,安插 Sata Power 線,轉卡有提供輔助電源,就插上吧。
plextor M8pey 轉卡做得挺好的,有興趣可找一下拆開後的pci-e轉卡。
不敢拆,拆壞了可就無保固。
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-c3dc582c63571e7f993c73514b262985.jpg)

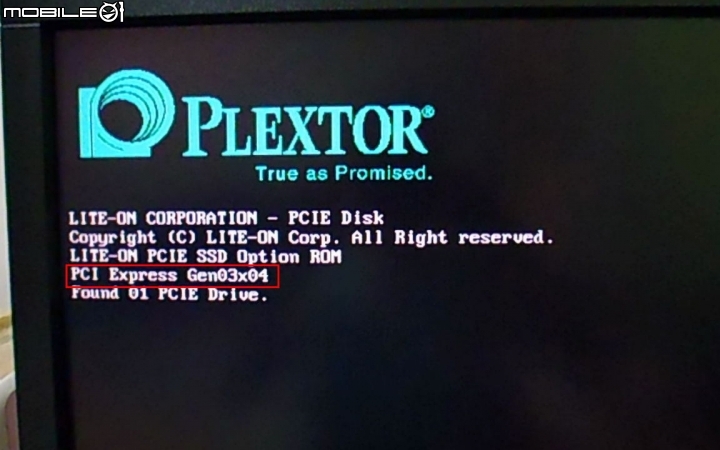

M8pey 顯示 PCI Express Gen03x04
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-6e7c0fb4816532eb176229e7225340d3.jpg)

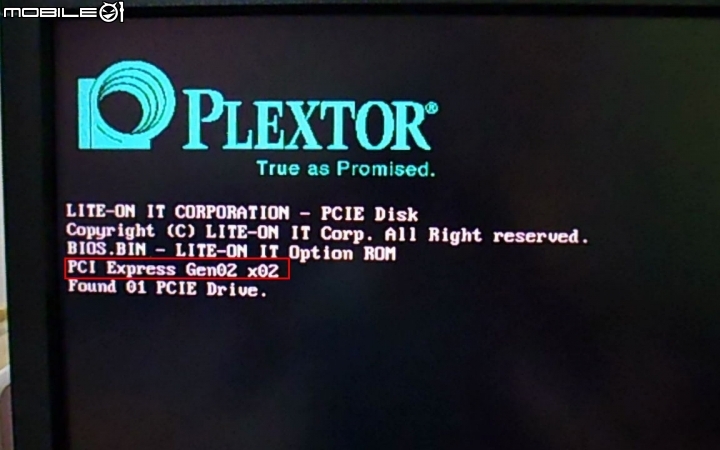

M6e 顯示 PCI Express Gen02x02
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-594cbefaedd4527861fba230bde28c5c.jpg)

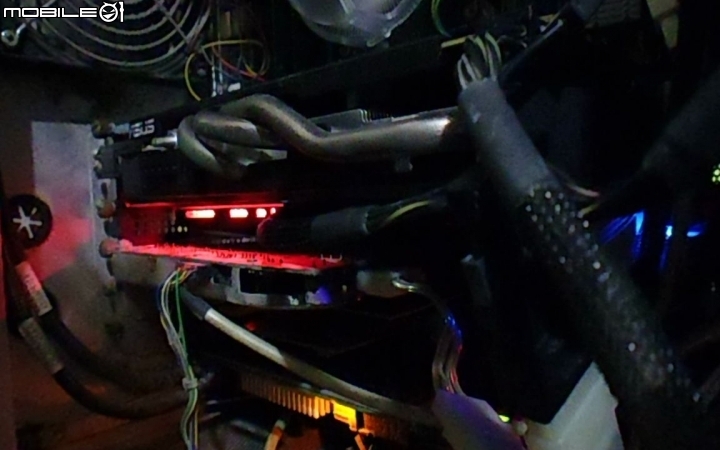

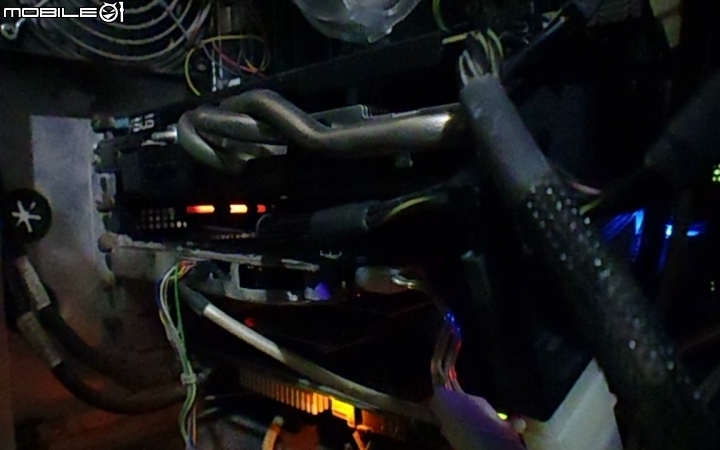

讀寫時,紅色閃爍(很亮、深紅色)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-8aa2c899bb14bf5d3b7c6c437aba740f.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-1b01759a40ee79f25cc3bc2ab2a9efe1.jpg)

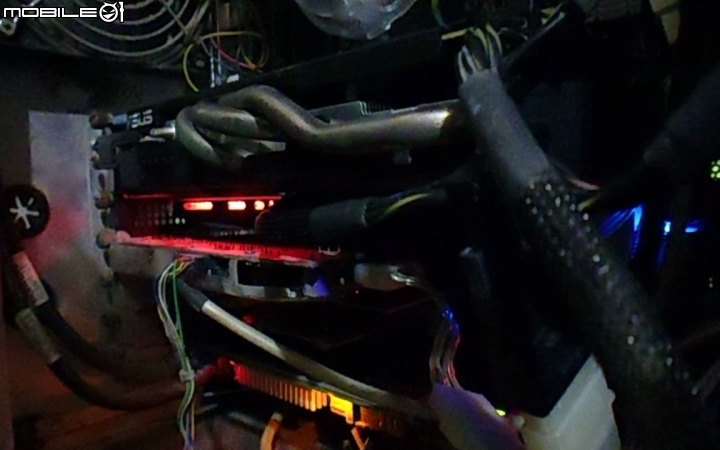

待機時,紅色漸層滑動著,挺漂亮的。呼吸的感覺。
原本打算用GIF,無奈機殼太多東西拍照時很不方便,晃、殘影...最後放棄了。
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-49c79642f2f6ee6a8c7146452df25f9f.jpg)

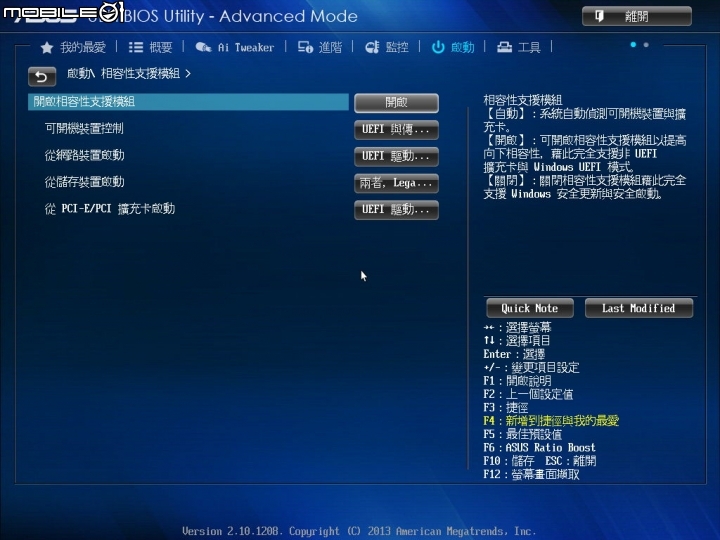

BIOS CSM 設定,此設定開機時會出現 Legacy IO 訊息
儲存裝置以 UEFI 優先,開機畫面會出現 黑屏或系統的畫面(已安裝UEFI系統)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-ee9c0c0c42a5e08cbab03a41ba058983.jpg)

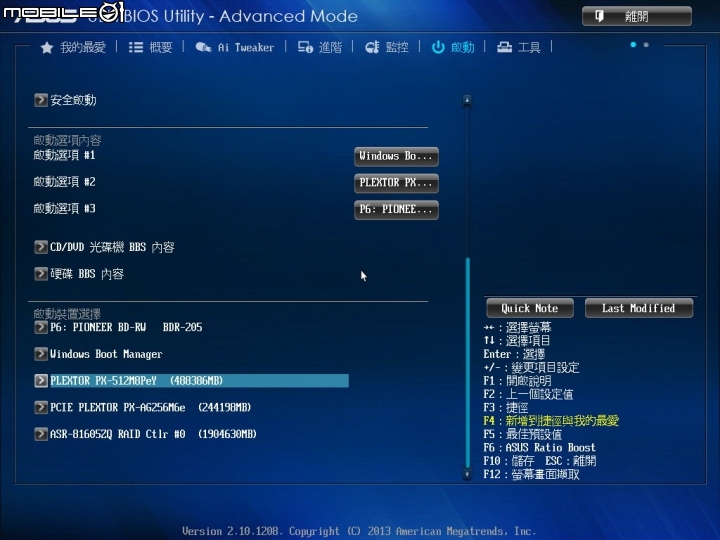

沒冠上 UEFI 都是 Legacy ,點一下硬碟(含Legacy系統)可開機
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-47b04671edc01b855cfd4160130ed7c6.jpg)

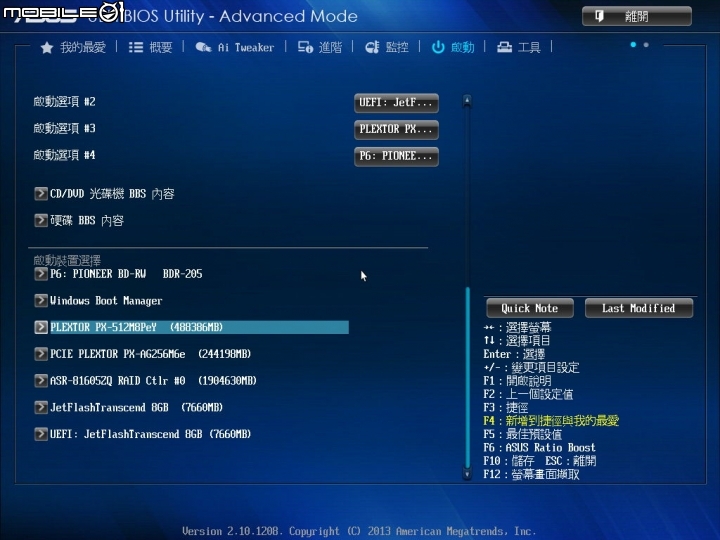

安插了USB或光碟等 UEFI 系統,裝置前出現 UEFI 冠名(最後的USB裝置),點一下可UEFI開機。
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-970e645a012acebf325c8d08c58df605.png)

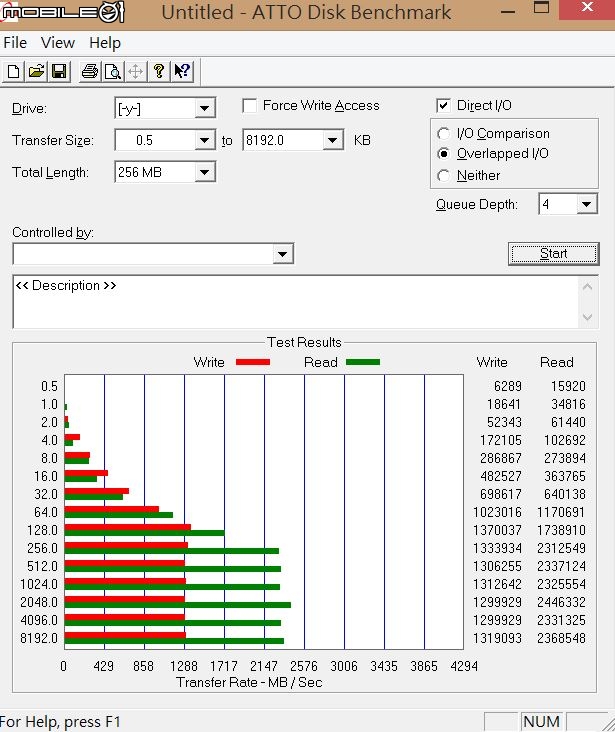

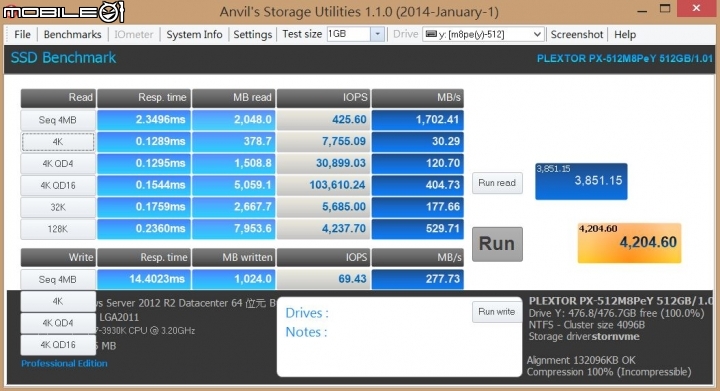

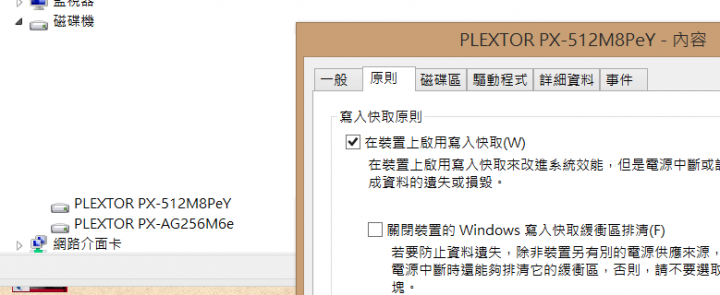

系統預設值、官方建議值
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-64a221cd38a94b7ab60112e87c75d681.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-1f46c82c6dd5052747e28d108887625c.jpg)

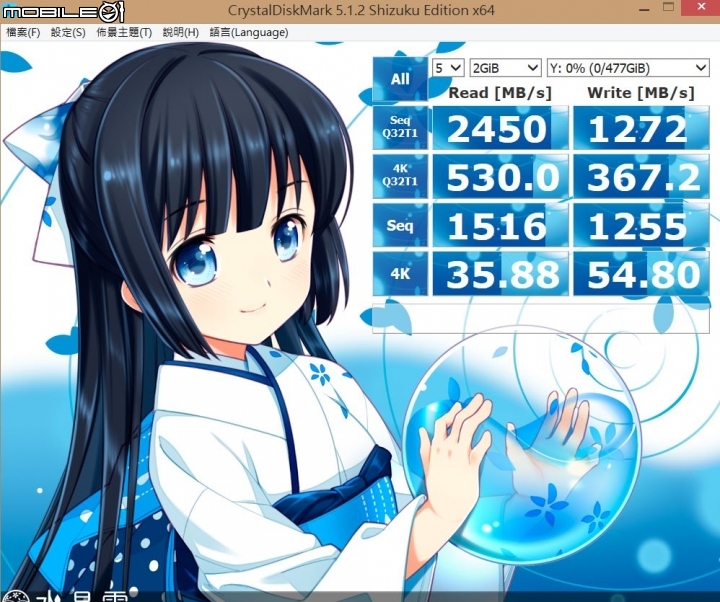

AS SSD Benchmark 4K 寫入會卡住,所以沒測試
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-f4321e4231e0a3775fbde60a9363a3d3.jpg)
===========================================================================================
===========================================================================================
===========================================================================================
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-1e2c9a90ba5d114505f5bbeece9eb085.jpg)

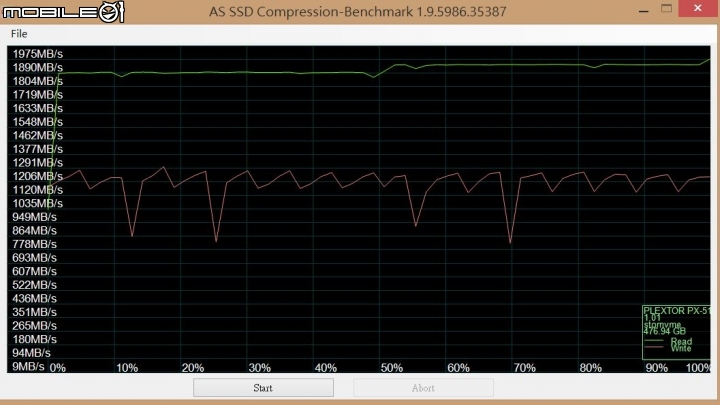

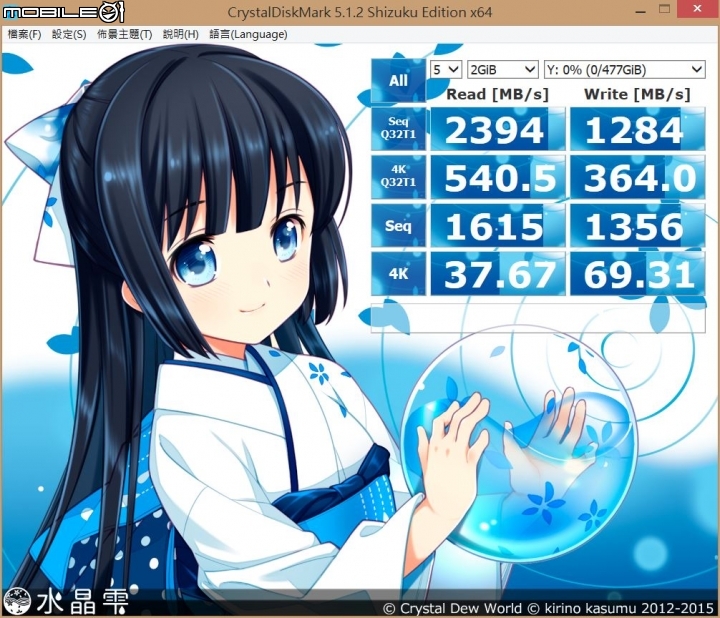

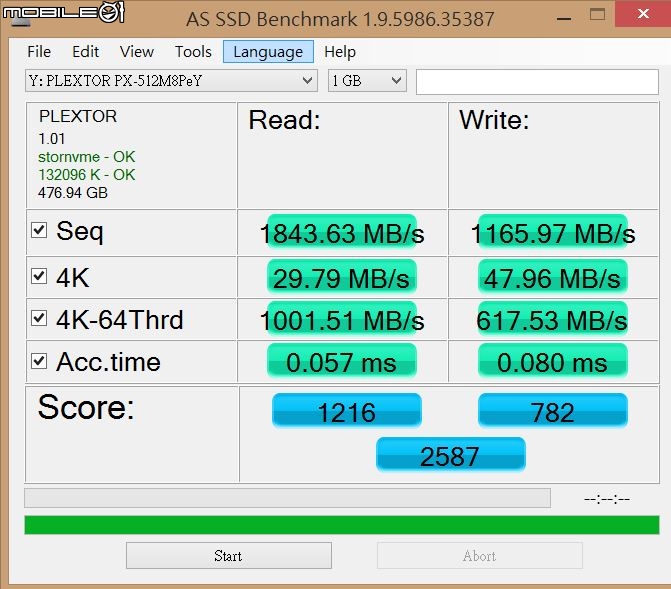

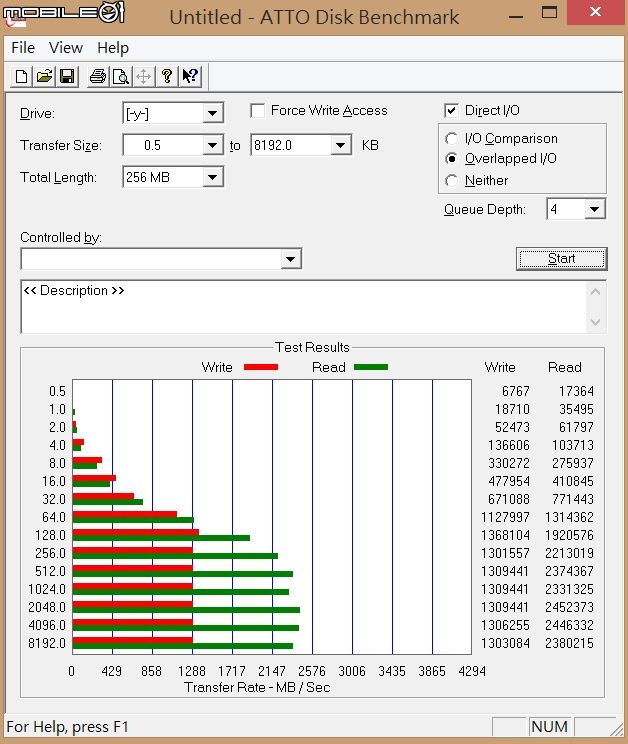

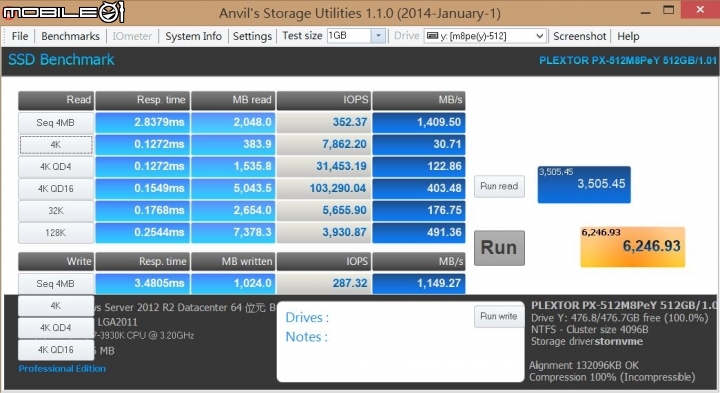

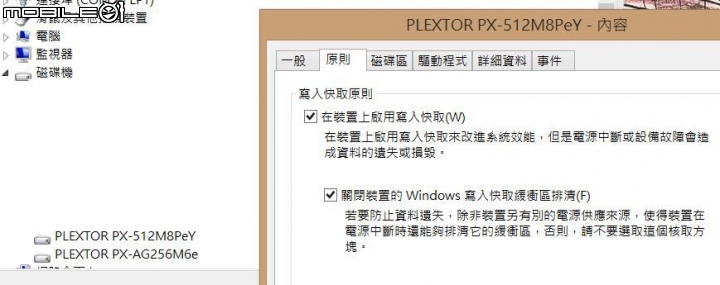

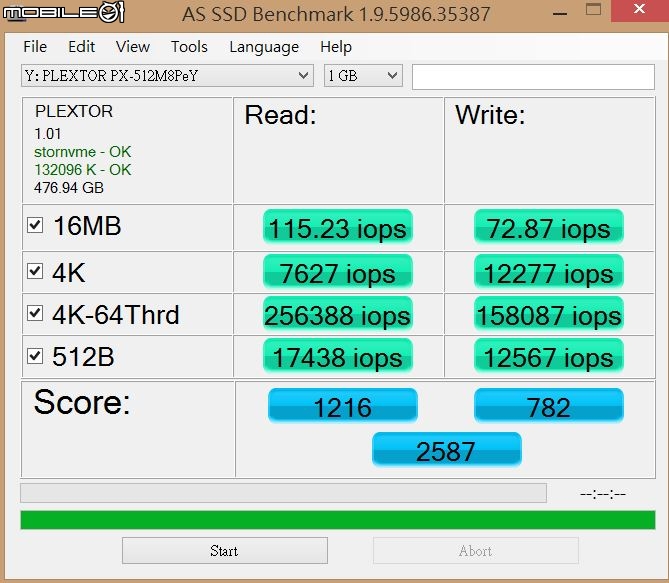

開啟-關掉排清,某些測試程式可順利跑4k寫入。
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-c6769e0fef4628c9cec56a4c4a6cb343.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-98ecf013da50acdd246ffb183161d61b.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-f8ff3200983e9cbc0eaefeade1d563b1.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-6c540812b394c7eb6223a823f8b9b79f.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-cead6271af87eec3bfa593f0484b4982.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-949948976355c3e123dfb5b2d8d6cebb.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-cadaa4df23e19a57c7440959a07a7be6.jpg)
===========================================================================================
===========================================================================================
===========================================================================================
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-056ba731fb075a0006f9963c66e51ca7.jpg)

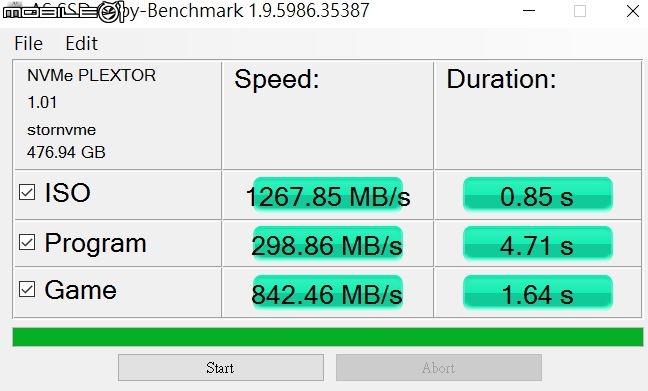

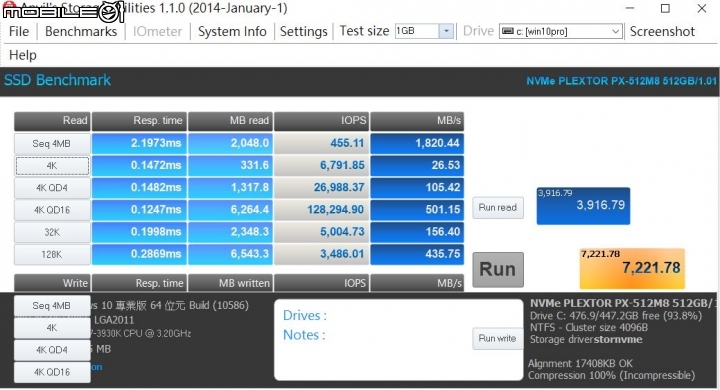

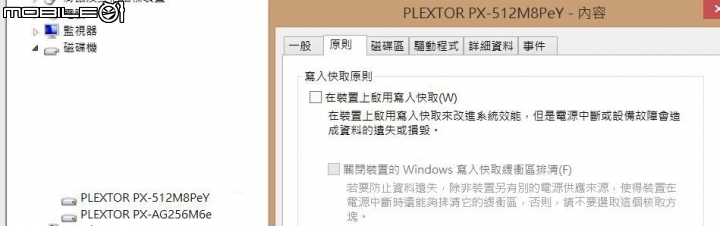

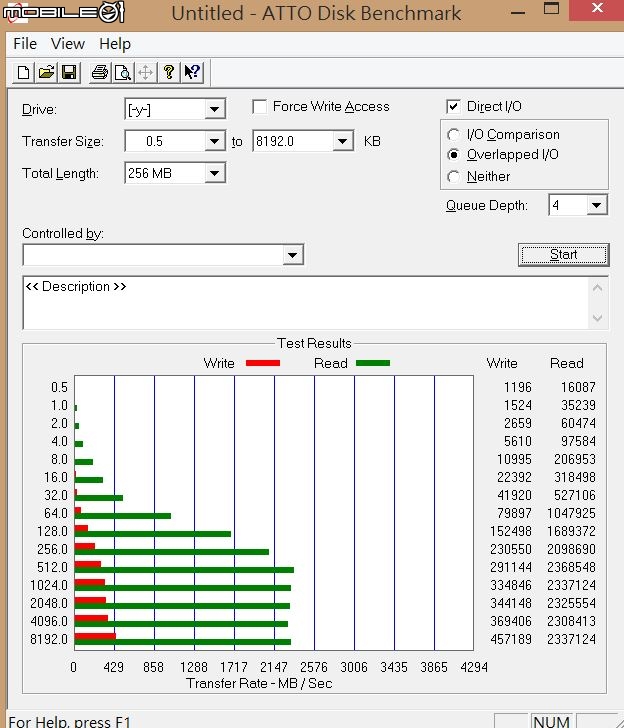

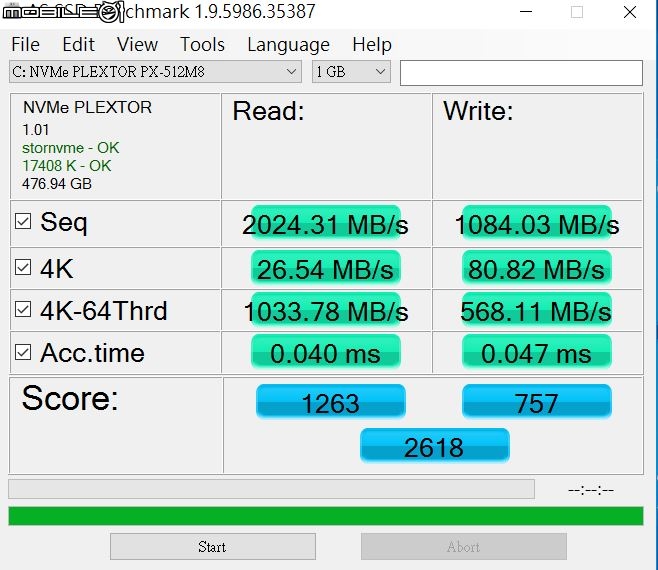

關掉寫入快取,性能不太好
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-eccb903f5062879365715609bdec86f2.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-f77e2572dd6757c2aac0aa021da02639.jpg)
AS SSD Benchmark 4K 寫入會卡住,所以沒測試
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-0930e0e614e6464126dc20e6ca013409.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-ca8626d8055bef32e76f498c13dc35b1.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-6f417e32d8753630aca6bbf260fec902.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-5d6246e32dd1a8639b92fd353afe3abc.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-54858aebc5619d017b2652a60b99c431.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-d20ff32d50cd3fc359a61f7b4cf76ffc.jpg)
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-87072e78213294e6e64ffce189b9d6cb.jpg)

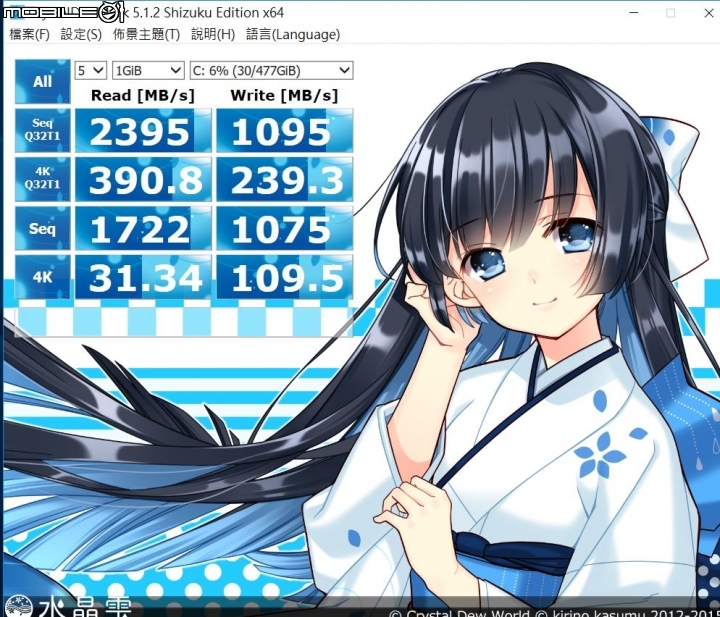

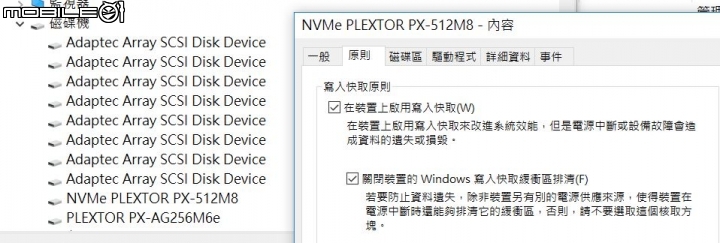

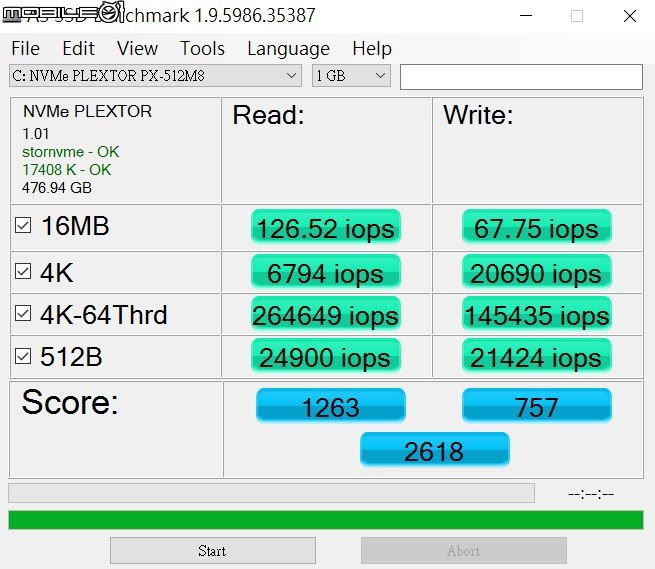

開啟-寫入快取、開啟-關掉快取排清,這會快一點,資料安全性得顧及,目前以預設值使用。
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-30077b0e12d69ba3e33c4becc4af84ed.jpg)

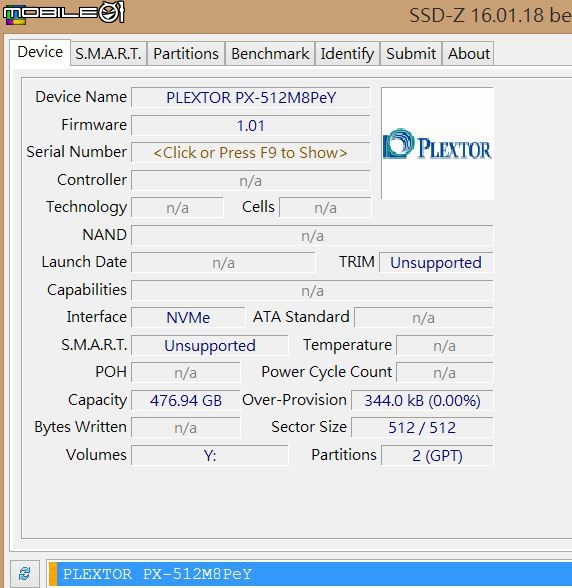

Win2012 r2 系統 / win10 系統 顯示資料就那一點
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-71138da23e32c8053bb886c391542e61.jpg)

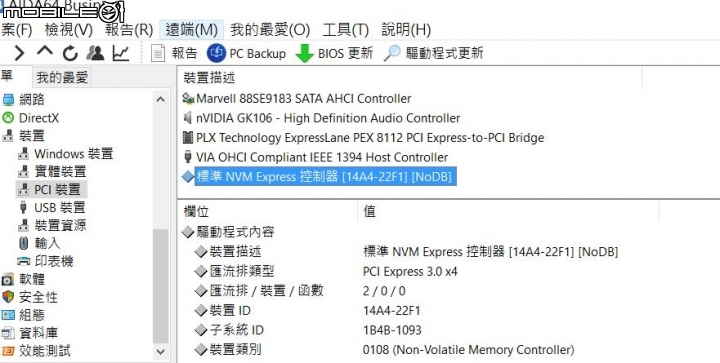

Win2012 r2 / Win10 aida64軟體都可顯示 M8pe 資訊
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-c9ae199cfb8b30e280118dbf5aa3a769.jpg)

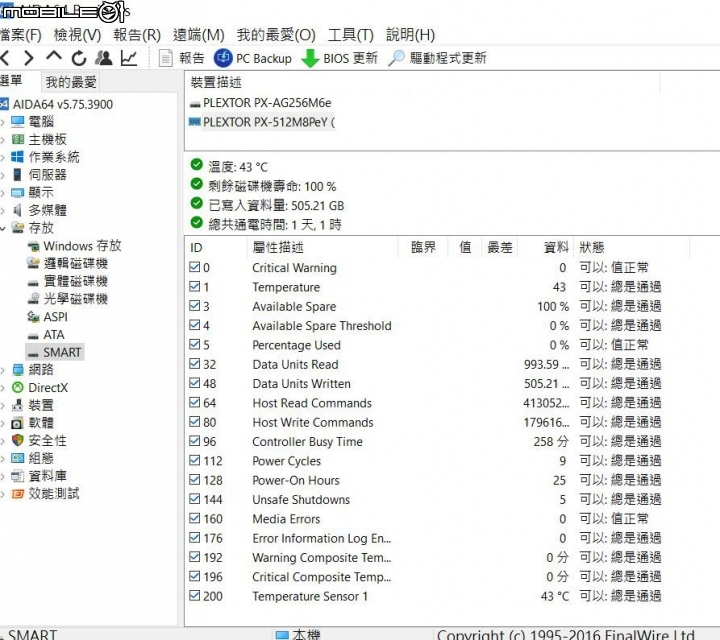

Win10 環境下讀取資訊
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-ee1691f8d55153d8e33ca79afa47384d.jpg)

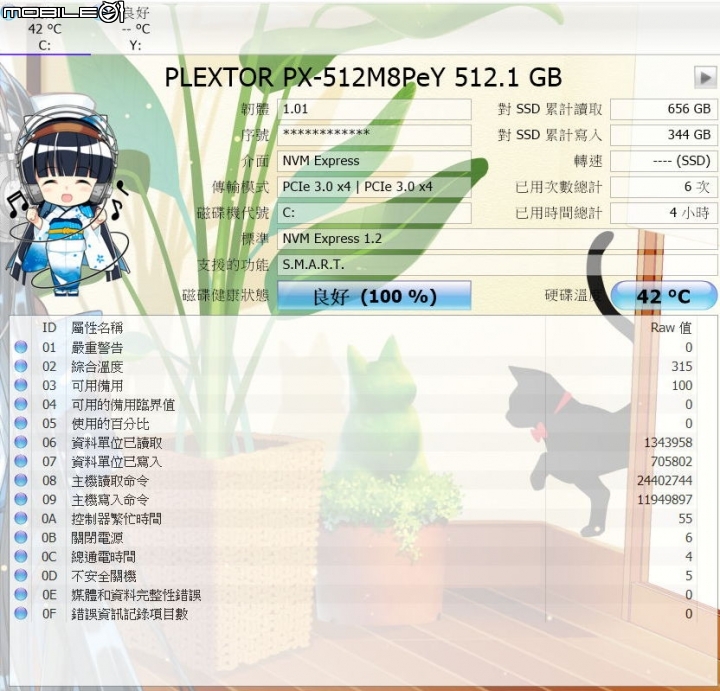

Win10 環境可顯示 M8pe資訊,Win2012r2 找不到 M8pe,原因應該是驅動程式,
待原廠推出後,大概可找到吧。
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-c23e41a3385a7c0e38aaef56f2d1610a.jpg)

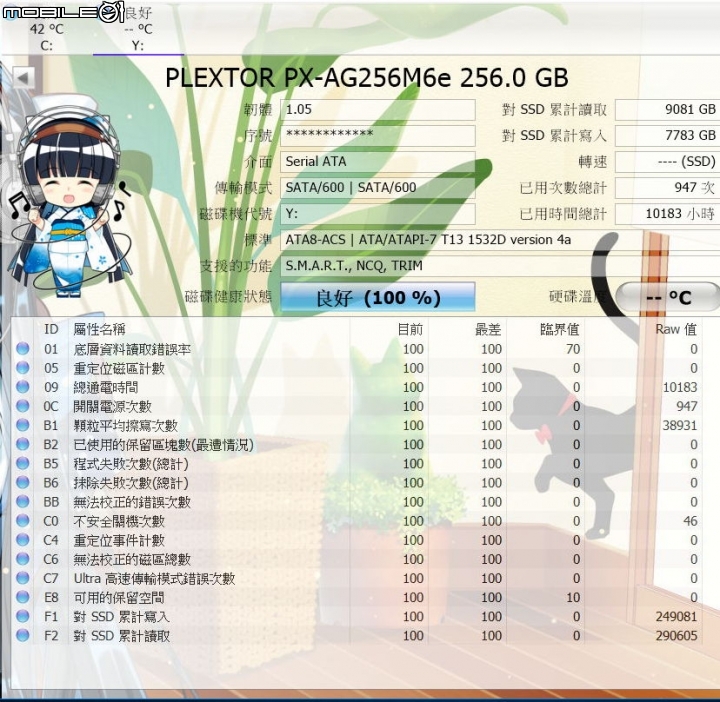

Plextor M6e 一萬多小時

有點像古老以前 AHCI 剛推出時,當時的時空環境也和現在的 NVMe 一樣,工具軟體不支援、
相容性等問題。
NVMe 系列商品,目前得掛上原廠驅動性能比較好,內建還是少了點甚麼,Intel / 三星皆如此。
M8pe 好用,很快、好快....安裝程式、執行程式都能明顯感受得出來。
當初促銷沒買到的大概....,是有聽說會調漲,只不過還真的調漲了,手腳快得很高興,手腳慢
的就得多補點血。
話說回來 圖:
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-fa78fe845e605a9a7f24df57b5945569.jpg)

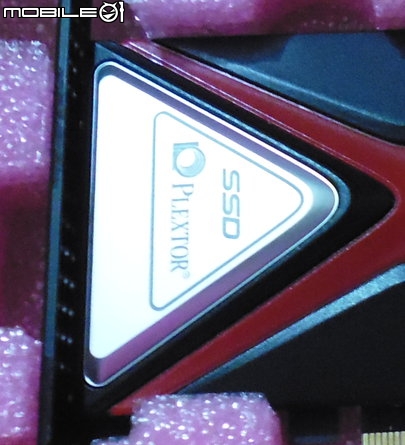

文字部分會發白光,只不過上機後沒看到啥樣子。
Win10 環境下使用M8pe ,覺得比在 win2012r2 上來的快些,內建驅動有差,
系統應該也有差,建議還是以新的系統來使用較好。win2016 也快出了

補: PCI-E 頻寬
顯卡 3.0 x8
M8peY 3.0 x4
音效卡 1.0 x1
M6e 2.0 x2
網路卡 2.0 x4
陣列卡 3.0 x8
有打算買 M8pe 系列,須注意一下頻寬夠不夠用
網路上的開箱文, M8pe PCI-E 2.0 x4 環境下,讀寫性能也很棒
補: 08 25
M8pe 降價了,跟剛上市時差不多的價格

補: 08 31

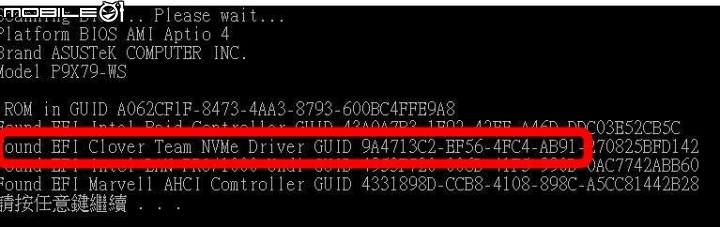

閒著沒事將主機板BIOS 插入 NVMeExpressDxE.ffs
![[開箱]Plextor PCI-E SSD M8peY 512GB NVMe](http://attach.mobile01.com/attach/201608/mobile01-5b9a738a97bf7bd342852d7c77c4d45f.jpg)
檢視掛載 NVMeExpressDxE
開機沒改變,有沒有 NVMeExpressDxE.ffs 並沒有造成不一樣的地方。
CSM 關閉或設定為 UEFI 優先,畫面不會出現 legacy 相關文字敘述,
無系統下黑頻,已安裝UEFI系統下出現系統開機畫面。
如果擴充卡不支援 UEFI 會強制出現 legacy 文字敘述,一張5805z
陣列卡未支援UEFI,就算設定純UEFI或關閉CSM相容性,也會出現
legacy 敘述文字,基本上喪失 UEFI 快速啟動這項功能。
然...SAS陣列卡沒差,反正掃描周邊都得花段時間,那怕是純UEFI
也一樣,反而設定為 legacy 能知道有硬碟群組。
