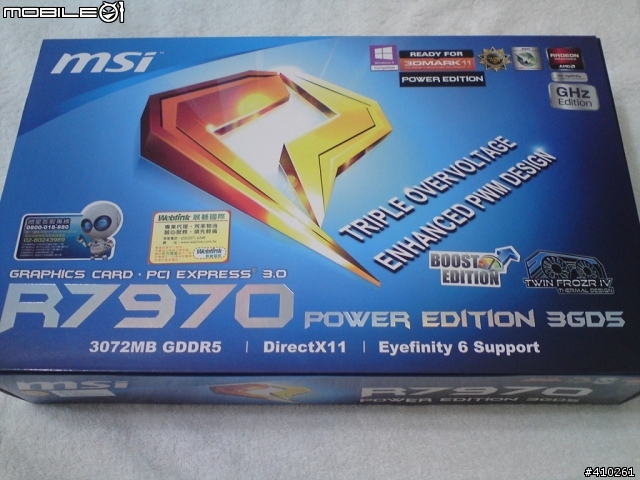

外盒
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-1b87b08867d2d9c338476ad0c9064516.jpg)
正面
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-ce9ca57b5276ece967a0db8636a3fa21.jpg)

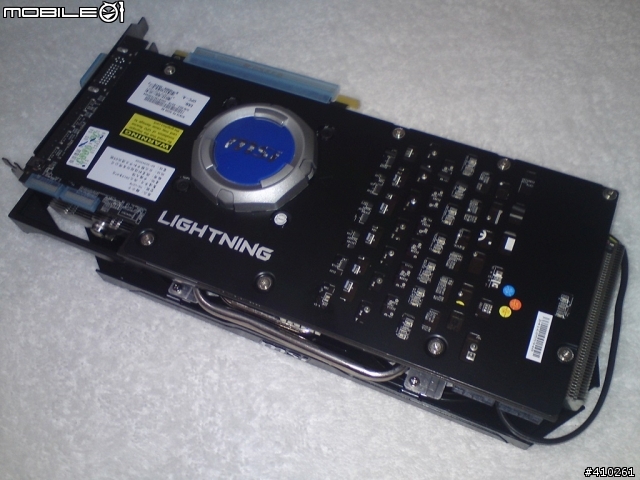

背面
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-777170ea731c320c9a915b365bc6ea0d.jpg)

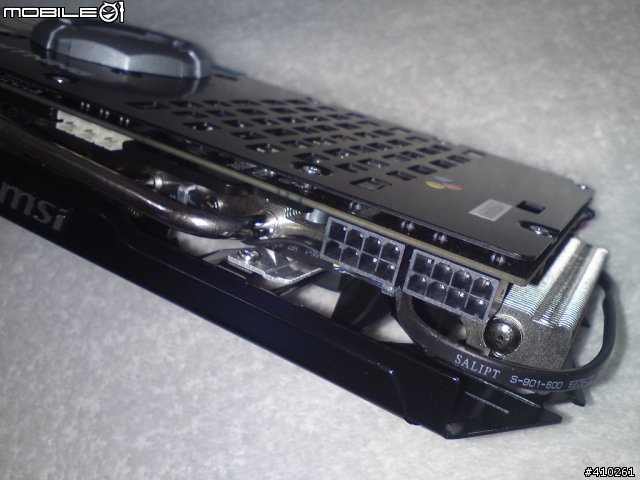

雙8PIN電源
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-2335e1d9172a10bd9045e32f16d278f3.jpg)

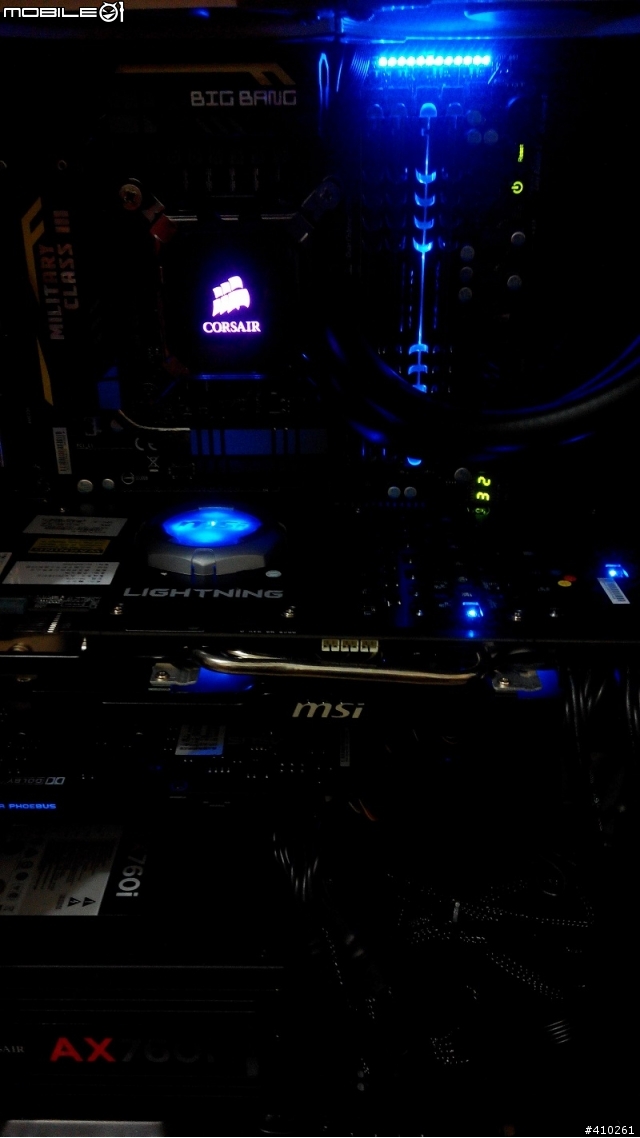

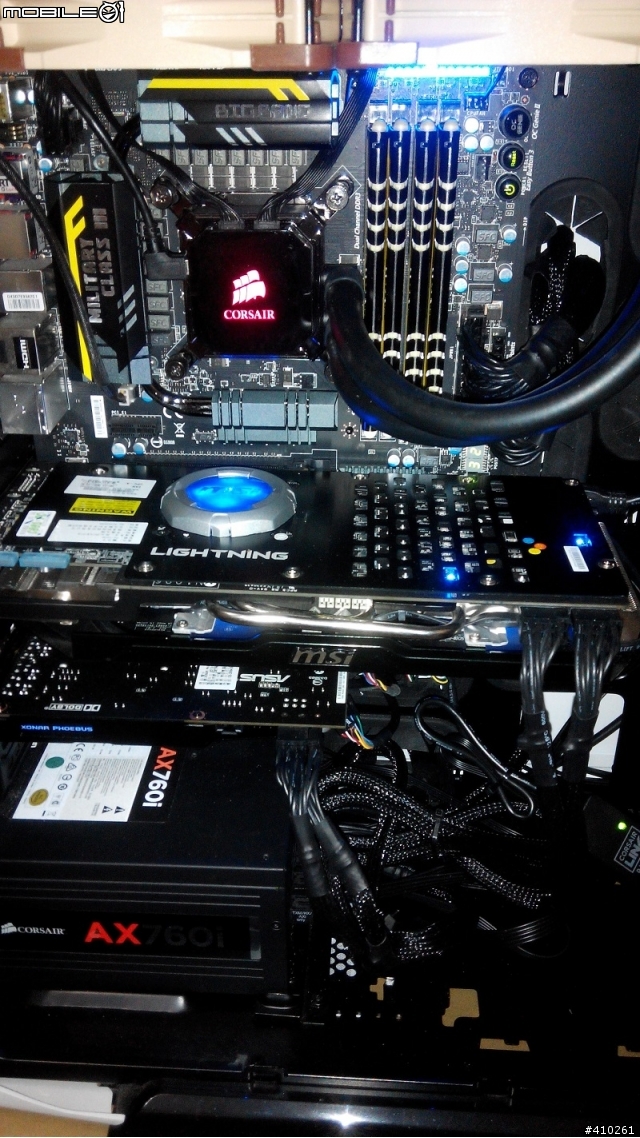

上機
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201312/mobile01-0c5553e2e5ca2576f5f775e9496ba438.jpg)
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201312/mobile01-65c8c6a5bf2cd893a11bcb121628107e.jpg)

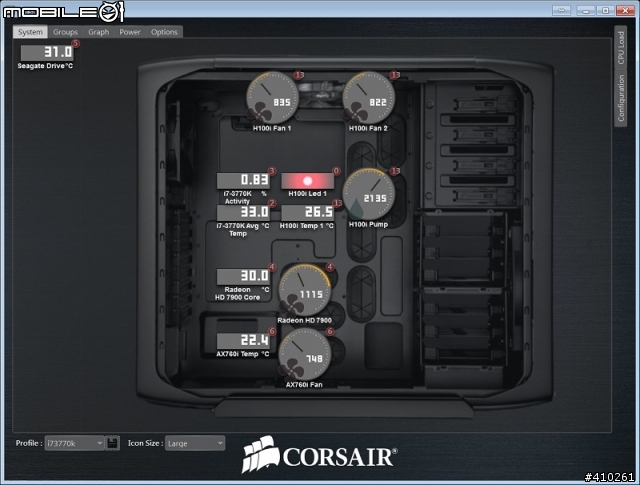

待機溫度
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201312/mobile01-950eccfc97f3560261fd5abcedc43466.jpg)

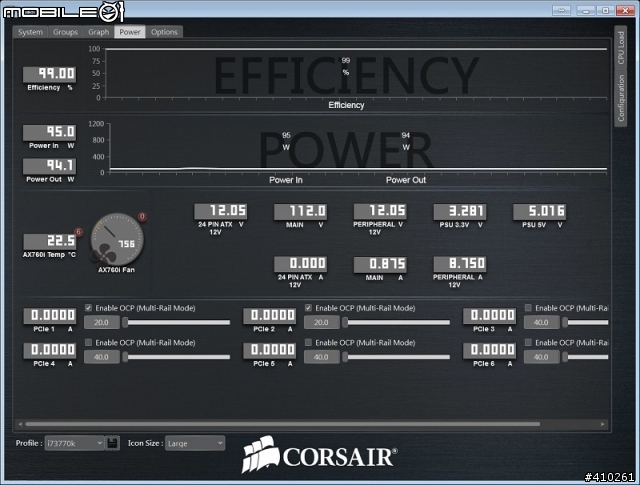

待機瓦數
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201312/mobile01-70cb314a112613cf340f21b0feaa2bdc.jpg)
==========測試平台==========
處理器：Intel Ivy Bridge Core I7-3770K @4.5G
記憶體：宇帷 AVEXIR Core系列 DDR3-2400(MSI Z77 MPOWER專用)
固態碟：Plextor M5 PRO *2 (RAID 0)
主機板：MSI Z77 MPOWER/1H1P/藍芽+WIFI/前置19PinU3
顯示卡：MSI R7970 Power Edition 3GD5 BE/3G DDR5/30.5cm
電源：海盜船 AX760 i (760W數位電源)/80+白金.模組化.全日系電容
水冷：海盜船 H100 i 數位版水冷散熱/智能化 Corsair Link 調控/大散熱 240mm水冷排
風扇：冷排_Noctua NF-F12 PWM、後抽_Noctua NF-S12A FLX
機殼：海盜船 Graphite Series 600T
===========================
GPU時派-1100預設
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-044986b06a737d1056f85912d16abdc1.jpg)
3DMARK分數-時脈1100
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-a0fa67681d3629e3ad58efc450be956c.jpg)

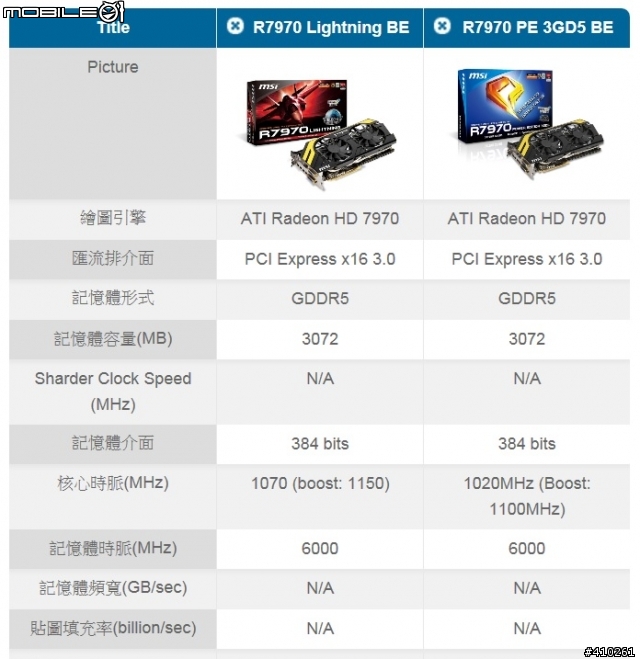

下面這張是官網 R7970 PE 3GD5 BE 和 R7970 Lightning BE 的規格比較
Boost相差 50 MHz
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-21b1391ecaa98fe4fc99775c2d5b6140.jpg)
試著不加壓，將時脈調高50測試

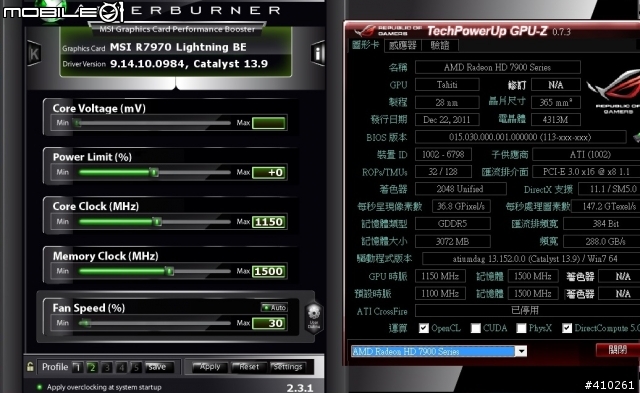

GPU時脈-1150
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-0837ceb4fcbb0563fc95878886540e64.jpg)

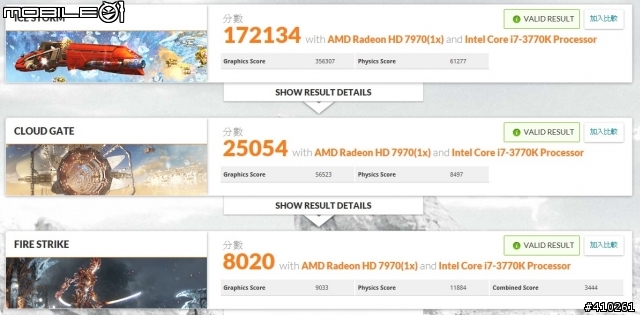

3DMARK分數-時脈1150
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201310/mobile01-9275655c227860d269f47ee45125da98.jpg)

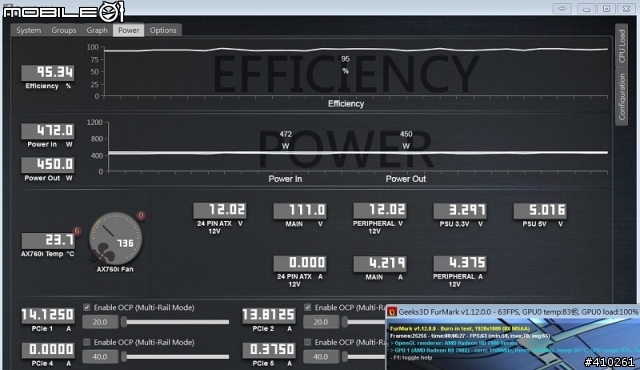

燒甜甜圈100%滿載的瓦數，470W上下
![[跳水開箱] MSI R7970 PE 3GD5 BE](http://attach.mobile01.com/attach/201312/mobile01-98328af0557155ef298a4b2616c181e6.jpg)
再往上調1200，不加壓，3DMARK無法完跑出現錯誤
