▼使用Hex key set(內六角板手 )鬆開大盤固定螺絲
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-e7bcb0276f1648e94f6f45bf22ab56f5.jpg)
▼使用Cotterless crank extractor (大盤/曲柄裝卸器)
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-8cf81a122b40d2cd4a6301f0d98e209c.jpg)
▼鬆解..
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-7c01a9518398eaeef894718143b78e63.jpg)
▼卸下曲柄
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-085416b354235d3f16c1e5e24814cd27.jpg)
▼卸下曲柄後...
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-196f5aff5615490c5980536bf75e2edd.jpg)
▼再使用Cartridge B.B.tool(裝卸BB套筒工具)鬆解BB左碗座
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-963f914fb4a3785703c8cb5dbc7be3fc.jpg)
▼鬆解後,旋轉出BB左碗座來..
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-9dbdaa9134062b738ed8fa20f98777d3.jpg)
▼轉出來...
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-79cb599ceabdc08eac5051336ea991f9.jpg)
■拆解另一側
▼使用Hex key set(內六角板手 )鬆開大盤固定螺絲
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-863e7ce31711660e4cd767cbea3a2ddf.jpg)
▼使用Cotterless crank extractor (大盤/曲柄裝卸器)
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-66308788dfb2a8deed4ac3e520aa4db6.jpg)
▼卸下大齒盤..
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-368327313493bea412d84be45d4c5ede.jpg)
▼卸下後像貌
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-15927bdb3fe443dd8359b297eac0b087.jpg)
▼再使用Cartridge B.B.tool(裝卸BB套筒工具)鬆解BB右碗座
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-39cde2a93c5778d1f310e14c426542e3.jpg)
▼鬆解後,轉出BB右碗座來..(含中軸BB零件)
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-1adbd155bbd0b38b2e0a63b55711add9.jpg)

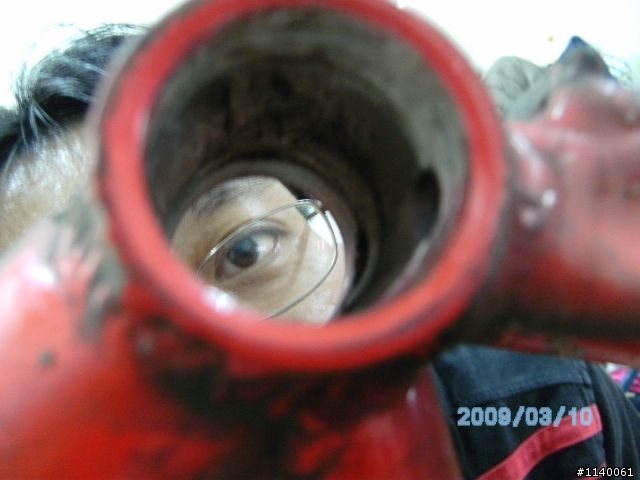

▼拿出BB(中軸/Bottom Bracket)後,的五通管
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-01d8f921c00ec4f20d5fbd6bbbb6be33.jpg)
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-fb4c9a9037651764a75ead0d66d56c3d.jpg)
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-9b49e2a907501ce366b48e5dbb99d6bc.jpg)
▼清潔後的五通管
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-25b4065655b21a9f8be2e3cf307e2aa5.jpg)
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-ac1eb0c0a3169a931005f33eb125529f.jpg)
▼拆下BB(中軸/Bottom Bracket)等零件(大盤固定螺絲X2,左BB碗座X1,中軸BB含右碗座)
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-c58dbbf6f900ceadc8829e14422147c6.jpg)
▼清潔BB(中軸/Bottom Bracket)
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-f76b1a121b4f9034ee091e7188103778.jpg)
▼清潔BB左碗座
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-f4dca9473d982551d365748077a1f3e2.jpg)
▼重新上黃油,裝回五通管內
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-4a17b2fdfdd9b7e756c6898bec278446.jpg)
▼再次使用Cartridge B.B.tool(裝卸BB套筒工具)慢慢旋轉進去
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-64f8ed5a1be70844dd4873b9e40a464e.jpg)
▼BB左碗座上黃油
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-63f08d016009134b095831fe12f2d38d.jpg)
▼也同樣再次使用Cartridge B.B.tool(裝卸BB套筒工具)慢慢旋轉進去
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-6a7417d039723cd6245f34f084157130.jpg)
▼裝好左右BB碗座貌
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-7c9e5136ab8f3a6652348299dd3283f4.jpg)
▼裝回曲柄,裝回固定螺絲
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-aac6b69bdfeeb0b522c0622c4ed0ab9e.jpg)
▼兩側曲柄及固定螺絲接裝回
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-44195919c7ae14bf1e5ad6a3b73aa7ad.jpg)
▼使用工具
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-051eebbaede983b2bcaf50a54a8342c0.jpg)
▼工具組
![[保養]拆解大齒盤與BB(中軸/Bottom Bracket)](http://attach.mobile01.com/attach/200903/mobile01-4644cb0e0be03f9ae33612268d534253.jpg)
