【作品分享】可能性之RG，比PG及MGEX給你多少少的RG 1/144 Unicorn Gundam

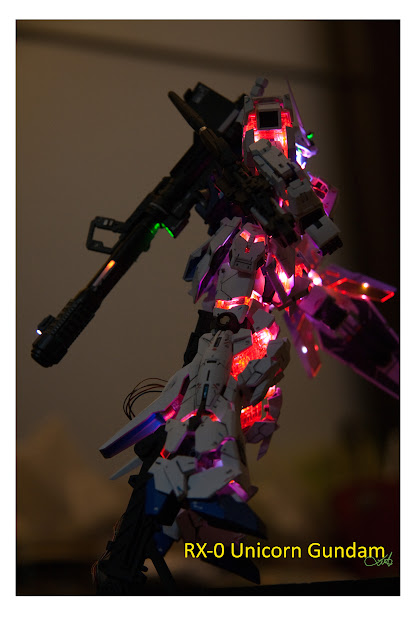

總算完成了，全身加了92棵不同類型LED，整個過程加入了不少過頭的想法，對於個人來說概念是實現了但效果始終未如理想，在1/144上加蓋製作的穩固度確實不如想像，功力仍需改進。繼續努力。

主要製作概念:

• 13種全身RGB光效及轉換聲效

其他光效聲效包括:

• 眼部，頭頂，兩肩及火神炮
• 全身噴射口
• 駕駛倉
• 武器及盾和開火特效

https://bit.ly/2EYqDUv
https://bit.ly/2HWsFFW
https://bit.ly/3nfmxbW
https://bit.ly/34Dst6j
https://bit.ly/2GofPQm
https://bit.ly/3jwjklY
https://bit.ly/3juEzEJ
https://bit.ly/3l9BsCE
https://bit.ly/2EZePRY
https://bit.ly/3nixCsI
https://bit.ly/3jIwFYN
https://bit.ly/34iRvY4
https://bit.ly/3jwZO8T
https://bit.ly/2EYKDq4
https://bit.ly/3jui5E5
https://bit.ly/30zP2r7
https://bit.ly/3ngeZps
https://bit.ly/3ivdf8j

加入光/聲效之餘的新嘗試

1. 武器保留手持方式裝拆
2. 盾保留可變及活動能力
3. 火箭炮三點裝拆連接背包
4. 火箭炮伸縮光效顯示
5. Magnum ePAC 保留可裝拆
6. 旋轉形狀火箭炮發射效果
7. 盡量保留可變

用料小統計:

No	Description	Qty
1	0402 白色LED	27
2	WS2812B	51
3	RGB LED	14
4	ATtiny85	8
5	Arduino Nano	1
6	DFPlayer	1
7	IR Receiver	1

https://bit.ly/3jw1vn5

LED分佈
改造項目計劃，包括LED布局，接線設定及線路圖（部分）
https://bit.ly/34oYA9n

https://bit.ly/2Gn6EQ0
https://bit.ly/36xZYcO

https://bit.ly/2Gn73Sw
https://bit.ly/3ncPfud

整體製作過程包括以下部分

1. 可變之盾，包含12種LED光效
https://bit.ly/34msSd8
https://bit.ly/36CeH6x
https://bit.ly/2Sqkeod

2. Bean Magnum，可裝拆並加入光效
https://bit.ly/2GDZ6YR
https://bit.ly/3d1HO47
https://bit.ly/36vyxjD

3. Bean Saber，加入LED可裝拆
https://bit.ly/3nfWuBt
4. 頭部，鏡頭，眼部，火神炮及精神感應框架光13種光效
https://bit.ly/34qwo5Z
https://bit.ly/33waPSC
https://bit.ly/2Sp5VAv
5. 加入駕駛艙與機師
https://bit.ly/2GDZKFL
https://bit.ly/2GBgvlf
https://bit.ly/3cVNAo1
6. 前臂Bean Saber，保留開合式並加入LED
https://bit.ly/2Gn4f7W
https://bit.ly/36xXLOy
https://bit.ly/33rkWb7
https://bit.ly/3lauBZJ
7. 加入聲效

8. 火箭炮，可裝拆並加入多種光效
https://bit.ly/33rl0aX
1,5. Bazooka Fire Effect
- Build 4 x 2020 package WS2812B addressable fullcolor RGB LED
- Solder wires in square shape with size similar to muzzle
- Fire effect by circular light
2,3,8,10,11. Length indicator slider connector
- It is a moveable part, built by string and strengthen by metal wire
- Length detected by the position of slider connector at the group of resistors
- Length connector resistance detected by Attiny85 analogy input
- 10 is the detail view of 6 x addressable fullcolor RGB LEDs
- The LED are connected by daisy chain
- Some light effect when the sider move from RED to GREEN
4,6. Connector
- A 3 ways connector to Unicorn Gundam Backpack for power source and fire trigger control
- Backpack connector detail

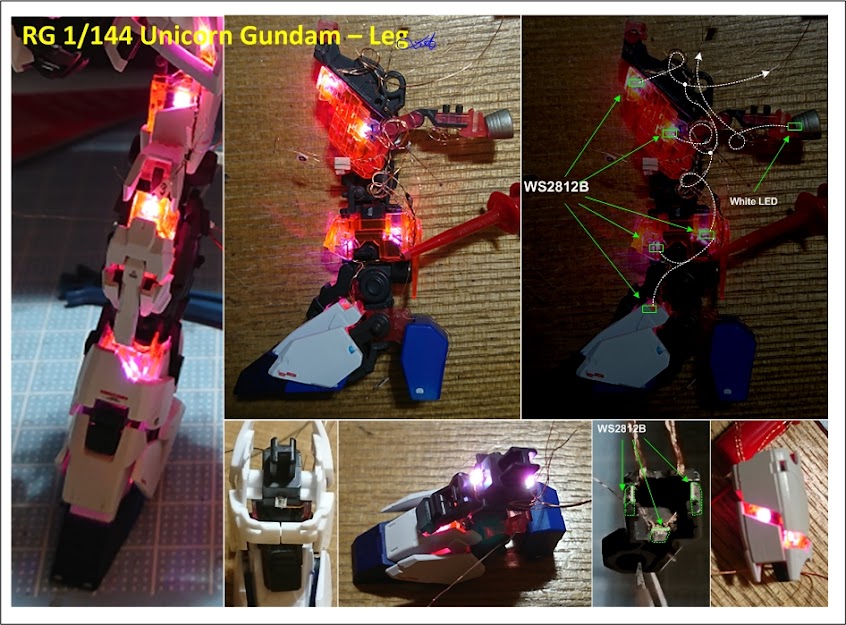

地台控制，背包連接及雙腳光效製作
https://bit.ly/3ncNnlb
https://bit.ly/3nivdy7
https://bit.ly/2SssEeJ
示範影片
https://www.youtube.com/playlist?list=PLD1NXJYyujL1qACWTRFwfqvSWbwuDRY_-

Blog :
https://kwluk717.blogspot.com/

謝謝觀賞
