改裝HC-7000隻眼仔功能

市面的針孔鏡頭套裝好平，想敗一套回來，給HC-7000改裝，唔知得唔得?

1)想用市面的針孔鏡頭將HC-7000隻眼仔功能改做外置
2)又或HC-7000隻眼仔功能加上AV輸入，給針孔鏡頭套裝用

如果行得通，可作搖距攝錄。

有無師兄試過這樣改裝，又或有HC-7000隻眼仔的輸入線路，可給我們試試看。

2004-10-27 18:13 #1

文章關鍵字

眼仔功能 7000

AK

90分

2樓

AK

個人積分：90分

文章編號：314925

東仔! 您很有創意~但還是寫英文吧!(~唔識講廣東話)

先看完下列文章,再決定不遲!!!
HHH大作~~HC7000拆機報告
我試過許多USB外接CCD都苦於無HPC2000 driver而宣告放棄
1)您所提到平的針孔鏡頭~接腳pin與HC7000必須相同且可用
2)You can only choose ONE input device at a time~~
buit-in camera OR AV-IN capture card (which is hard to find for PDA)
(There do have such a device for Pocket PC only!!!)
Besides, video codec and storage problem could be a worst nightmare!!!
Be sure to visit http://www.hpcfactor.com for HCL(Hardware Compatibility List)
They can give you general ideas what accessaries HPC can use

DON23

0分

樓主

DON23

個人積分：0分

文章編號：315147

謝謝AK大大指教!
我的英文不好，怕會講錯。

還以為CCD是同一規格...

DON23

0分

樓主

DON23

個人積分：0分

文章編號：327972

DON23 wrote:
謝謝AK大大指教!
我的英文不好，怕會講錯。
還以為CCD是同一規格...

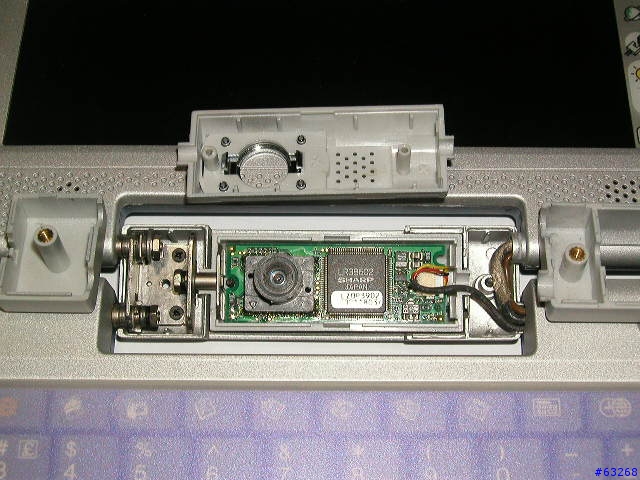

終於拆下，給大大看看隻眼仔

SHARP LR38602，希望先進可告知圖中那個4-pin插座的config

只找到這些關於LR38602的資料，但找不到data sheet

LR38602 DIGITAL SIGNAL PROCESSOR FOR COLOR CAMERA

1. GENERAL
This is the digital signal processor for color USB camera system of 350K pixels CCD or CMOS imager with the primary color filter.
This camera system can transfer images which is 30 frame/set with VGA resolution through USB interface to PC.

l-l. FEATURES
The process ( structure ) is CMOS.
A P-type silicon circuit board is used.
The package type is loo-pin QFP.
The package material is plastic.
Not designed or rated as radiation hardened.

l-2. FUNCTIONS
Single +3.3V power supply
Available for either 350K CCD or 350K CMOS imager, with R,G and B color filter
Available for YUV digital output
Built-in JPEG encorder
Built-in USB interface
Built-in Mirror image function
Built-in Pan,Tilt function
Auto Exposure control by external micom.
Auto White Balance control by external micom.
Built-in Auto Carrier Balance control
10 bits digital input
External control interface Input / Output

先進們有多點資料可供利用就好了
