wst2080 wrote:
剛剛去downloa...(恕刪)

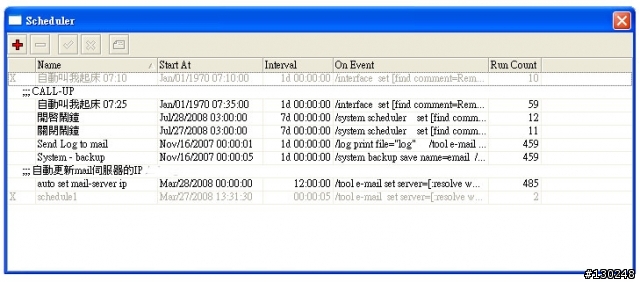

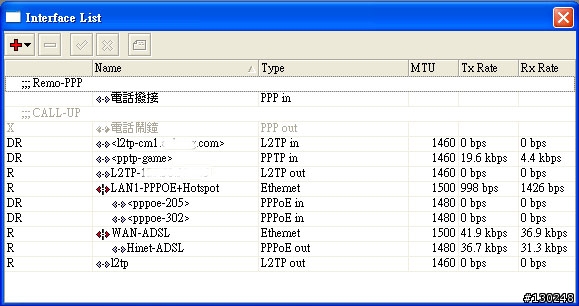

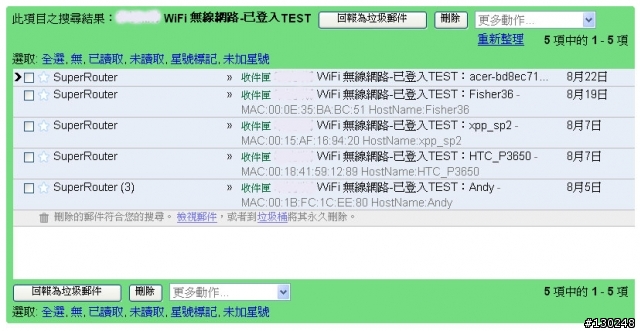

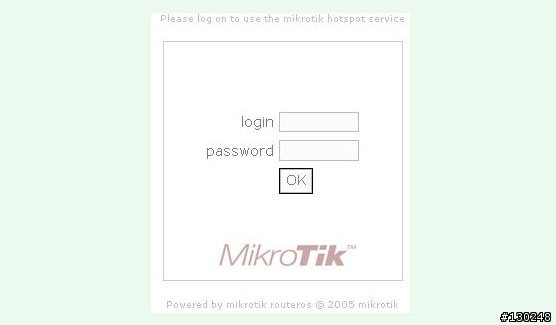

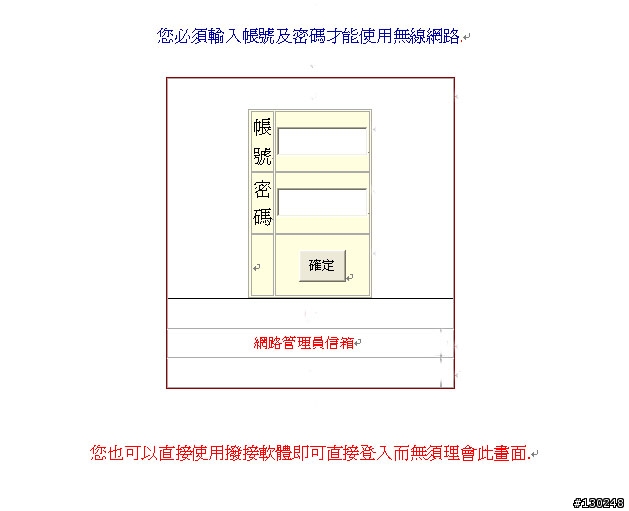

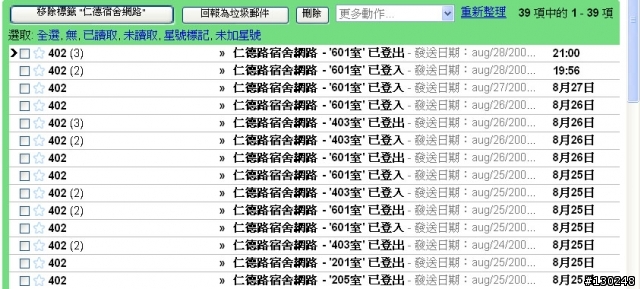

小弟來貼一下這路由器的部分功能.....

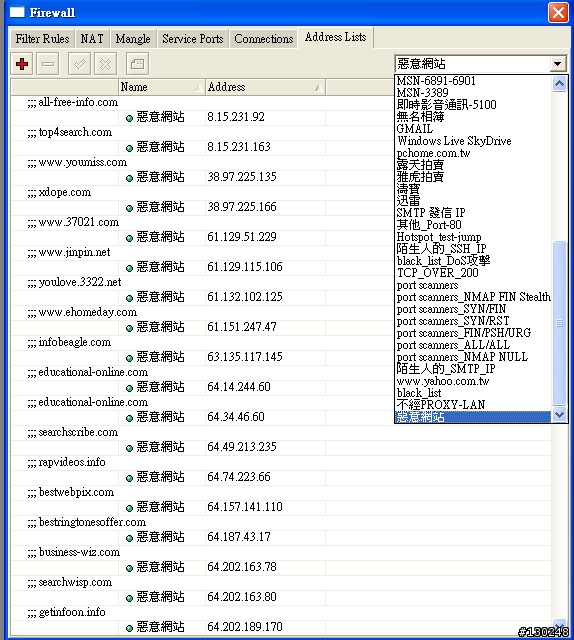

這個address-list 功能真的粉方便...
個人積分：618分
文章編號：7805580
個人積分：618分
文章編號：7805805
個人積分：618分
文章編號：7805956
個人積分：618分
文章編號：7806160
個人積分：618分
文章編號：7806366
個人積分：9分
文章編號：7808177
個人積分：618分
文章編號：7808394
miki543849 wrote:
請問樓上的大哥, 你...(恕刪)
按這裡檢視外部影片 (按這裡在新視窗中開啟影片)http://tw.youtube.com/watch?v=OTli3O6MKDM
我是用PRINT PORT ,直接接上去即可,都不用轉換.

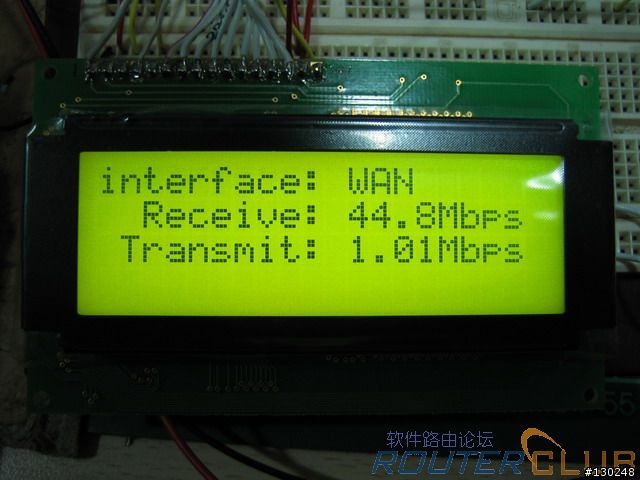

LCD/LCM 液晶顯示模組 16*2 (借用一下Y拍的圖片)
我是用20*4的LCD
這是直接接RS232 PORT,但還需要單晶片程式才行.
個人積分：540分
文章編號：7821250
不過 Routeros 會跟我的機器相衝說...
換句話說...裝進去,重新開機就找不到裝置... 換了幾個硬碟 或者 記憶卡轉IDE 也都這樣
理論上應該是不會發生這種事情的阿... 剛好我今天也順便reinstall 我的OS...
並且利用VM... 來分別指定不同的網卡來做 橋接 ... 才順利的將routeros 裝好...
現在NAT是起來了... 不過功能真的太多太複雜... 還是要花點時間study之外,還要花時間整理思緒理解一下....
用過 BrazilFW ... Linux Router Live CD ... 還有這套Routeros...
發現他們的OS對USB Keyboard 沒有反應,只對PS/2才有反應...
其實影響不大啦!!! 只是還要翻出PS/2的鍵盤... 有點給他麻煩的啦!!!
阿胖技研,專研資訊相關技術!
個人積分：7分
文章編號：7822277
個人積分：618分
文章編號：7822786
inova wrote:
ROUTEROS 和...(恕刪)
這裡有的通通支持.....
Atheros
Chipset type: Atheros AR5001X PCI/CardBUS 11/54Mbit/s IEEE802.11a/b/g (with wireless AP function)
Compatibility:
Intel 5000 series
Dlink DWL-A520
Dlink DWL-G650
Ubiquity SR5, SR2, SR9 series
Atheros AR5000 chipset series based IEEE802.11a (AR5210 MAC plus AR5110 PHY chips) cards
Atheros AR5001A chipset series based IEEE802.11a (AR5211 MAC plus AR5111 PHY chips) cards
Atheros AR5001X chipset series based IEEE802.11a (AR5211 MAC plus AR5111 PHY chips), IEEE802.11b/g (AR5211 MAC plus AR2111 PHY chips), IEEE802.11a/b/g (AR5211 MAC plus AR5111 and 2111 PHY chips) cards
Atheros AR5001X+ chipset series based IEEE802.11a (AR5212 MAC plus AR5111 PHY chips), IEEE802.11b/g (AR5212 MAC plus AR2111 PHY chips), IEEE802.11a/b/g (AR5212 MAC plus AR5111 and 2111 PHY chips) cards
Atheros AR5002X+ chipset series based IEEE802.11b/g (AR5212 MAC plus AR2112 PHY chips), IEEE802.11a/b/g (AR5212 MAC plus AR5112 PHY chips) cards
Atheros AR5004X+ chipset series based IEEE802.11b/g (AR5213 MAC plus AR2112 PHY chips), IEEE802.11a/b/g (AR5213 MAC plus AR5112 PHY chips) cards
Atheros AR5006X chipset series based IEEE802.11a/b/g (AR5413/AR5414 single-chip devices) cards
Senao NMP-8602 Series cards
Cisco/Aironet
Chipset type: Cisco/Aironet ISA/PCI/PCMCIA 11Mbit/s IEEE802.11b (wireless station only)
Compatibility:
Aironet ISA/PCI/PC4800 2.4GHz DS 11Mbit/s Wireless LAN Adapters (100mW)
Aironet ISA/PCI/PC4500 2.4GHz DS 2Mbit/s Wireless LAN Adapters (100mW)
CISCO AIR-PCI340 2.4GHz DS 11Mbit/s Wireless LAN Adapters (30mW)
CISCO AIR-PCI/PC350/352 2.4GHz DS 11Mbit/s Wireless LAN Adapters (100mW)
Intersil Prism II
Chipset type: Intersil Prism II PCI/CardBUS 11Mbit/s IEEE802.11b (with wireless AP feature)
Compatibility:
Intersil PRISM2 Reference Design 11Mbit/s IEEE802.11b WLAN Card
GemTek WL-211 Wireless LAN PC Card
Compaq iPaq HNW-100 11Mbit/s 802.11b WLAN Card
Samsung SWL2000-N 11Mbit/s 802.11b WLAN Card
Z-Com XI300 11Mbit/s 802.11b WLAN Card
ZoomAir 4100 11Mbit/s 802.11b WLAN Card
Linksys WPC11 11Mbit/s 802.11b WLAN Card
Addtron AWP-100 11Mbit/s 802.11b WLAN Card
D-Link DWL-650 11Mbit/s 802.11b WLAN Card
SMC 2632W 11Mbit/s 802.11b WLAN Card
BroMax Freeport 11Mbit/s 802.11b WLAN Card
Intersil PRISM2 Reference Design 11Mbit/s WLAN Card
Bromax OEM 11Mbit/s 802.11b WLAN Card (Prism 2.5)
corega K.K. Wireless LAN PCC-11
corega K.K. Wireless LAN PCCA-11
CONTEC FLEXSCAN/FX-DDS110-PCC
PLANEX GeoWave/GW-NS110
Ambicom WL1100 11Mbit/s 802.11b WLAN Card
LeArtery SYNCBYAIR 11Mbit/s 802.11b WLAN Card
Intermec MobileLAN 11Mbit/s 802.11b WLAN Card
NETGEAR MA401 11Mbit/s 802.11 WLAN Card
Intersil PRISM Freedom 11Mbit/s 802.11 WLAN Card
OTC Wireless AirEZY 2411-PCC 11Mbit/s 802.11 WLAN Card
Z-Com XI-325HP PCMCIA 200mW Card
Z-Com XI-626 Wireless PCI Card
Notes
If planned to use WEP with Prism cards see link for more information: Wireless Security
Prism cards set in client mode will not connect to Access Points (AP) that work with enabled hide-ssid feature
WaveLAN/ORiNOCO
Chipset type: Lucent/Agere/Proxim WaveLAN/ORiNOCO ISA/PCMCIA 11Mbit/s IEEE802.11b (wireless station only)
Compatibility:
WaveLAN Bronze/Gold/Silver ISA/PCMCIA
